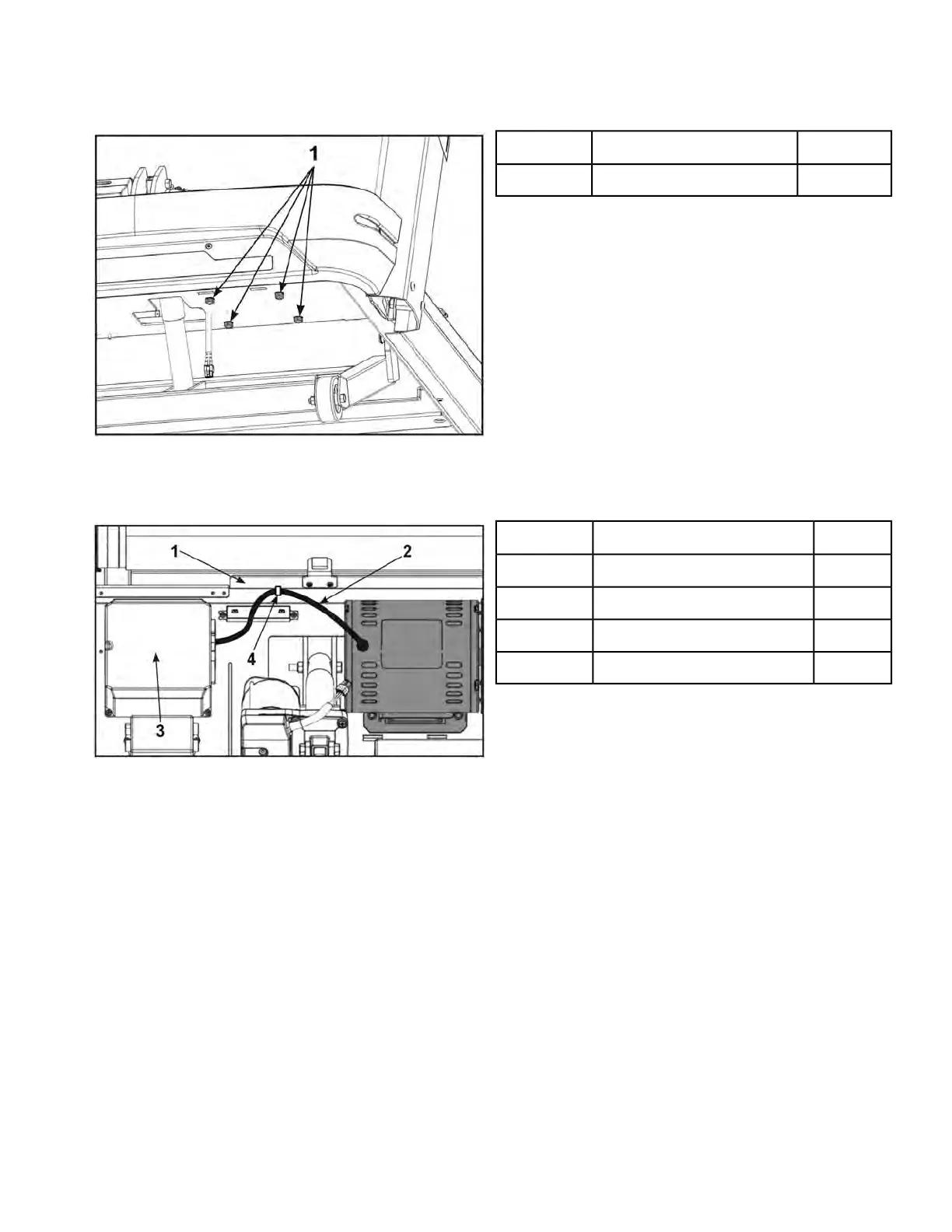

3. Install the four mounting nuts to the drive motor mounting brackets using a 1/2” Socket with a 6”
extension.
Qty.DescriptionItem
4Mounting Nut1
Connect drive motor cable
1. Connect the drive motor cable to the motor controller.
Qty.DescriptionItem
1Front Roller Shield1
1Drive Motor Cable2
2Motor Controller3
1Cable Tie4
2. Secure the drive motor cable to the front roller shield using a cable tie.
Ensure the drive motor cable is pulled straight to the front roller shield and does not interfere with
the motor cover..
Install drive belt
Install the drive belt into the grooves on the drive motor pulley.
