CYBEX 525T Service Manual

Install front cover

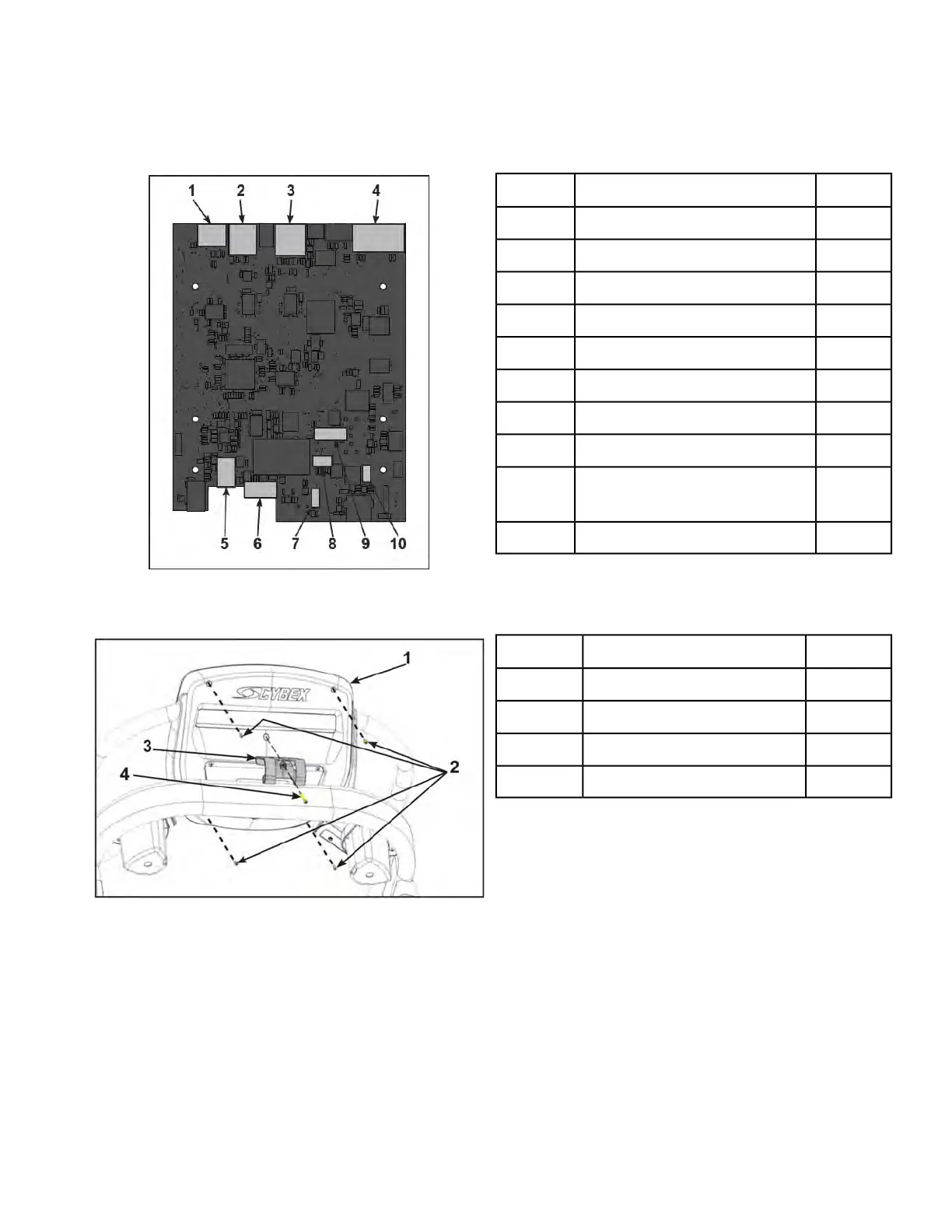

1. Plug the cables into the MCC board.
MCC board cables
Qty.DescriptionItem
1MYE/BV, Gray1
1CSAFE, Red2
1Console cable3
1Upper display4
1Headphone jack5
1iPod (optional)6
1Heart rate7
1Handset membrane8
1
iPod board assembly (option-
al)
9
1E-stop switch10
2. Install the four short screws and one long screw securing the front cover and iPad clip to the console
assembly using a Phillips screwdriver.
Qty.DescriptionItem
1Console assembly1
4Short screws2
1iPad clip3
1Long screw4
Complete installation
1. Plug the power cord into the power outlet.
2. Operate the unit at all levels to verify proper operation.
3.
Follow procedure in Shared TV Setup.
Page 196 of 199
