Cybex 530C and 530R Owner’s Manual
Preventive
Maintenance
Page 4-6
Cybex 530R Cycle

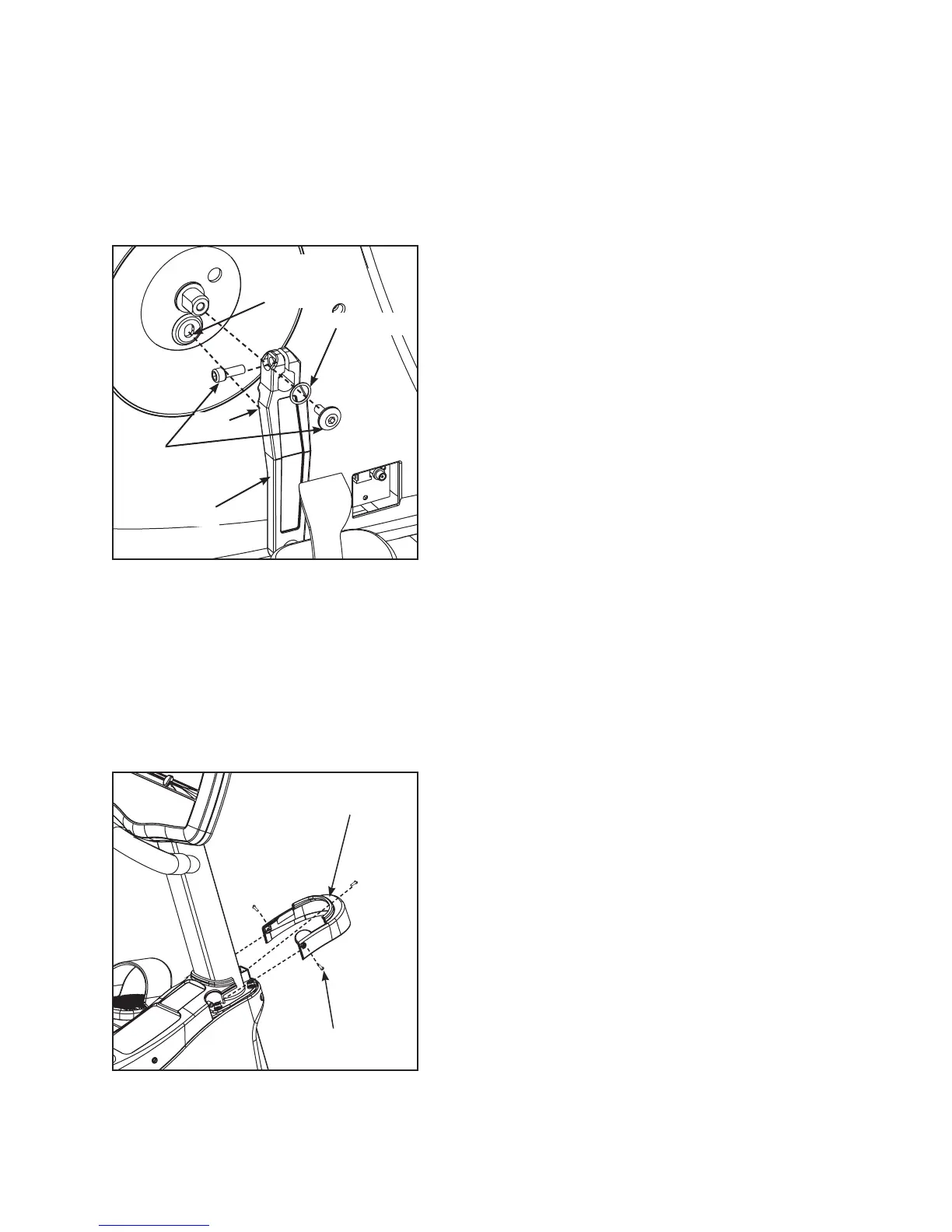

5. Remove the crank arms.
A. Using a 6 mm Allen wrench, remove the two screws and washer securing each of the crank
arms. See Figure 8.
B. Remove the crank arms. NOTE: The cycle is equipped with a left and a right crank arm. The
right crank arm has a pin that inserts into a hole in the drive sprocket.
6. Remove the access covers.
A. Using a Phillips head screwdriver, remove the three screws securing the front cap in place.
See Figure 9.
Figure 8
Figure 9
Screws (3)
Front
Cap
Crank Arm
Washer
Screws (2)
Drive
Sprocket
Hole
Pin
