Cybex 530C and 530R Owner’s Manual
Setup
and Assembly
Page 5-3

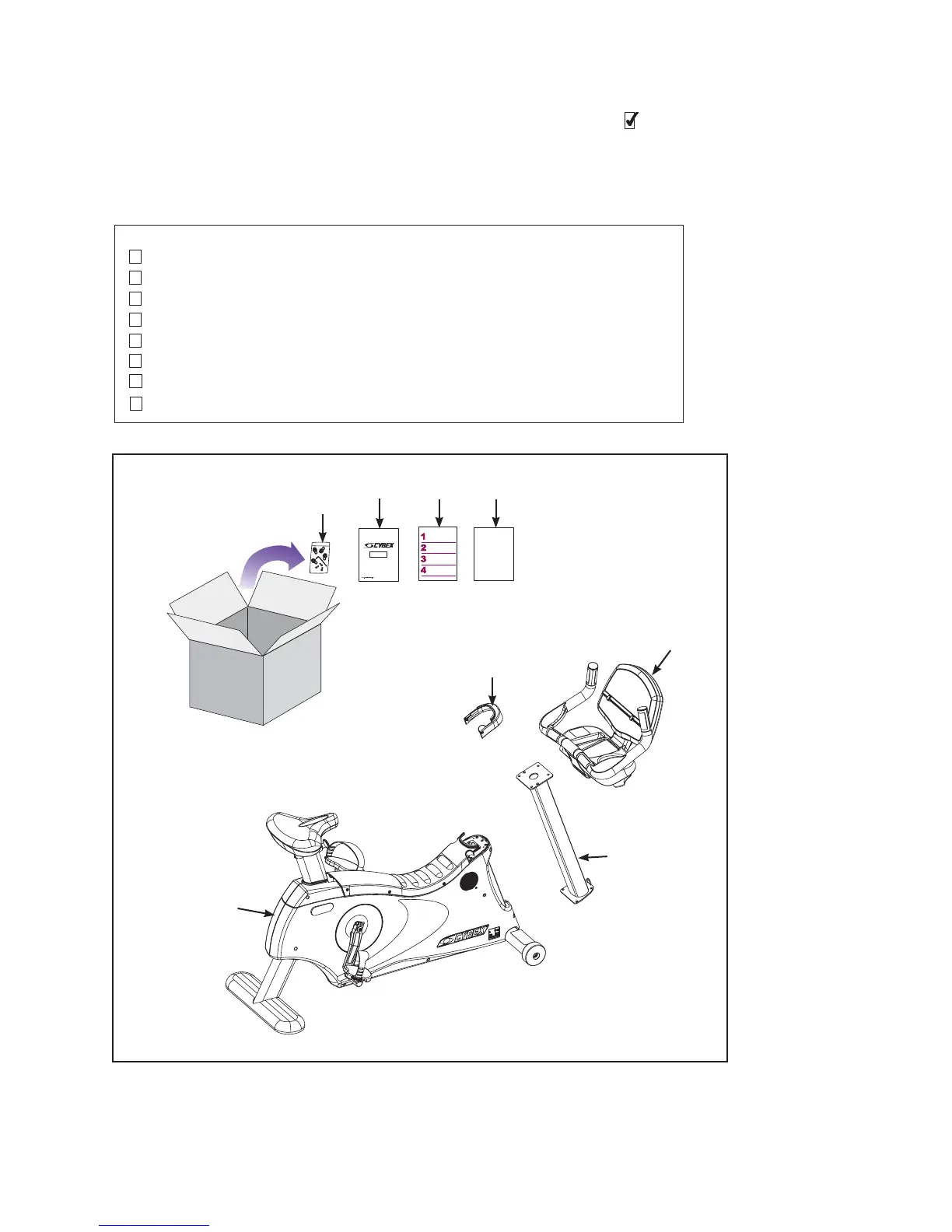

C. Check to be sure that the following items are present. Check off ( ) each item as you find it.
See Figure 1. If any of the parts are missing contact Cybex Customer Service.
Figure 1
Cybex 530C Cycle Assembly
Item Qty Part Number Description
1 1 Varies Base with covers attached
2 1 Varies Console assembly
3 1 PL-18235 Front Cap (in box)
4 1 AF-17970 Upright Tube
5 1 AX-18340 Hardware pack (in box)
6 1 LT-18171-4 Owner’s Manual (in box)
7 1 LT-18260 Assembly poster
8 1 LT-18259 Warranty sheet
#6
#5
#7 #8
#3
#2
#4
#1
To Next Page
