Cybex 530C and 530R Owner’s Manual

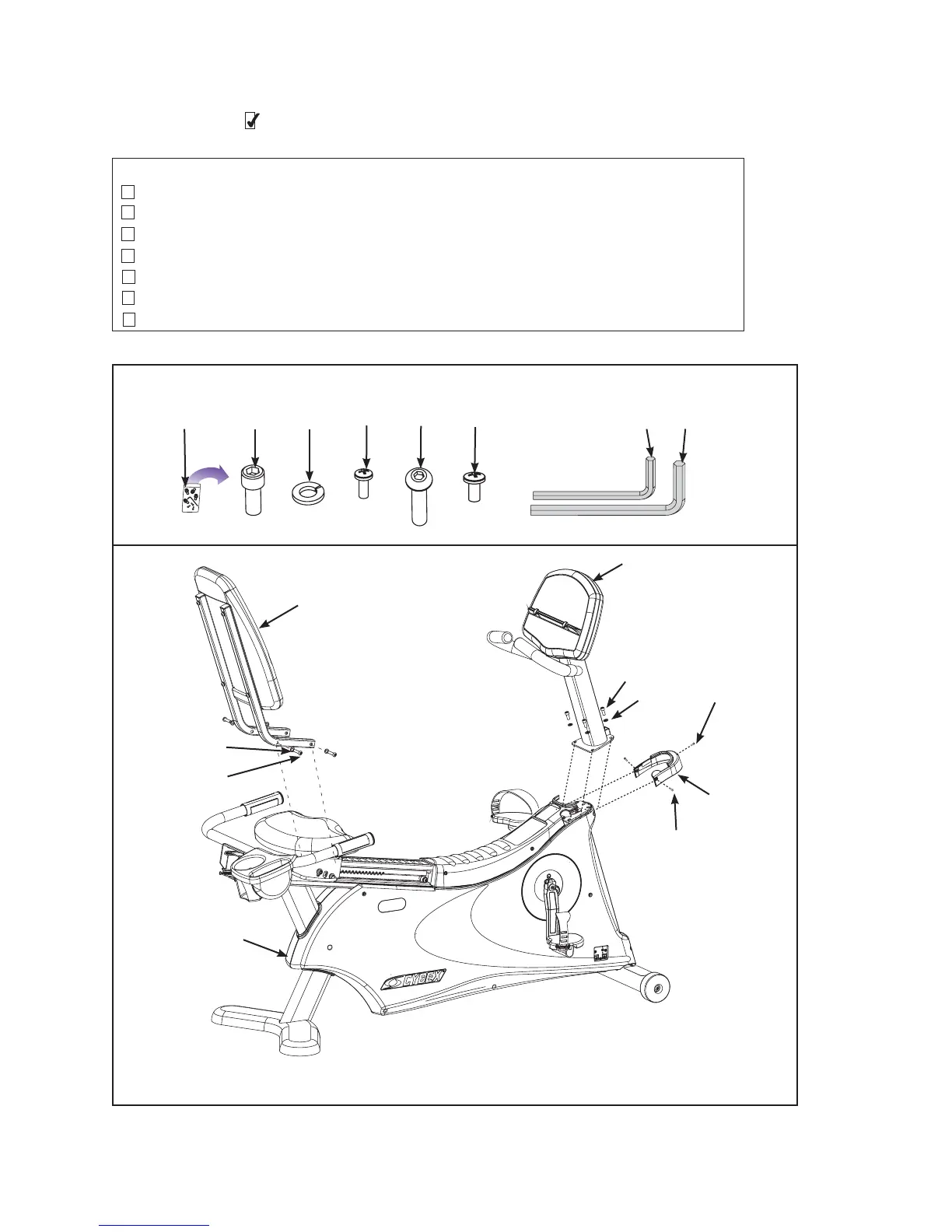

B. Check off ( ) each item in the hardware pack as you find it. See Figure 2.
Item Qty Part Number Description
9 4 HS-18183 Screw, 5-16-18 X .75, SHCS (Socket Head Cap Screw)
10 8 HW-53018 Washer, 5-16” Split
11 2 HS-15706 Screw, 8-16 x .50, PNHD, BLK
12 4 HS-41107 Screw, 5-16-18 X 1.50
13 1 HS-41006 Screw, 10-24 X .50, SLFTP, BLK
14 1 HX-00438 3/16” Allen wrench
15 1 HX-17117 1/4” Allen wrench
Setup
and Assembly
Page 5-9
Hardware
Figure 2
#9#4
#8
#10
#12
#2
#9
#10
#13
#11
#3
#1
#10 #11 #12 #13 #14 #15
To Next Page
