Cybex 750C/750R Owner’s Manual
Exploded
Views
Page D-3
ITEM QTY. PART NO. DESCRIPTION
1 1 AD-21280 PCA,LOWER CONTROLLER
9 1 AX-21373 ASSY,BATTERY
10 1 AX-21684 ASSY,BRAKE
11 1 AX-21693 ASSY,PLASTIC TOP,750C
22 1 EC-21351 BATTERY,12V/1.2AHR,750C 750R
24 2 EH-00986 TY WRAP,T B TYB-25M 9 IN
28 1 FS-21599 COVER,LOWER CONTROLLER
31 8 HS-15706 SCREW,8-16X.50,PNHD
36 3 HS-19111 SCREW SEMS,8-32X.38 PNHD
41 4 HS-21612 SCREW,10-32X7-16,SCHD
CAP,SS
42 2 HS-41006 SCREW SLFTP,10-24X.5,PNHD
43 4 HW-21878 WASHER, SAE NO.10 STL ZINC
49 3 HX-21519 PIN,PLASTIC RETAINIER
53 1 PL-21579 SHROUD,LEFT REAR,750C
ITEM QTY. PART NO. DESCRIPTION
54 1 PL-21580 SHROUD,RIGHT REAR,750C
55 1 PL-21581 SHROUD,LEFT FRONT,750C
56 1 AX-21854 SHROUD,RIGHT FRONT,750C, W/
PINS
57 1 PL-21584 CAP,TOP REAR,750C
90 1 HX-14416 CLIP,WIRE LATCHING,1X1
91 3 HS-14391 SCREW,6-32X.38,PNHD PHIL
92 1 HX-17788 TAPE,DBL SIDED, .032THK
93 1 AF-21370 BRKT,BATTERY
94 1 FS-21371 STRAP,BATTERY,750C
95 1 TR-21265 POWER SUPPLY
96 2 FS-21372 STRAP, A/V POWER SUPPLY
209 1 DE-18362-X* DECAL,CAUTION
210 1 DE-18363-X* LABEL,WARNING
10
55
53
9
42
28
36
11
24
42
1
31
54
31
56
31
209
210
31
43
49
41
57
31
31
31
49
SEE DETAIL "B"
22
90
93
91
92
94
91
95
DETAIL B
96
A/V OPTION

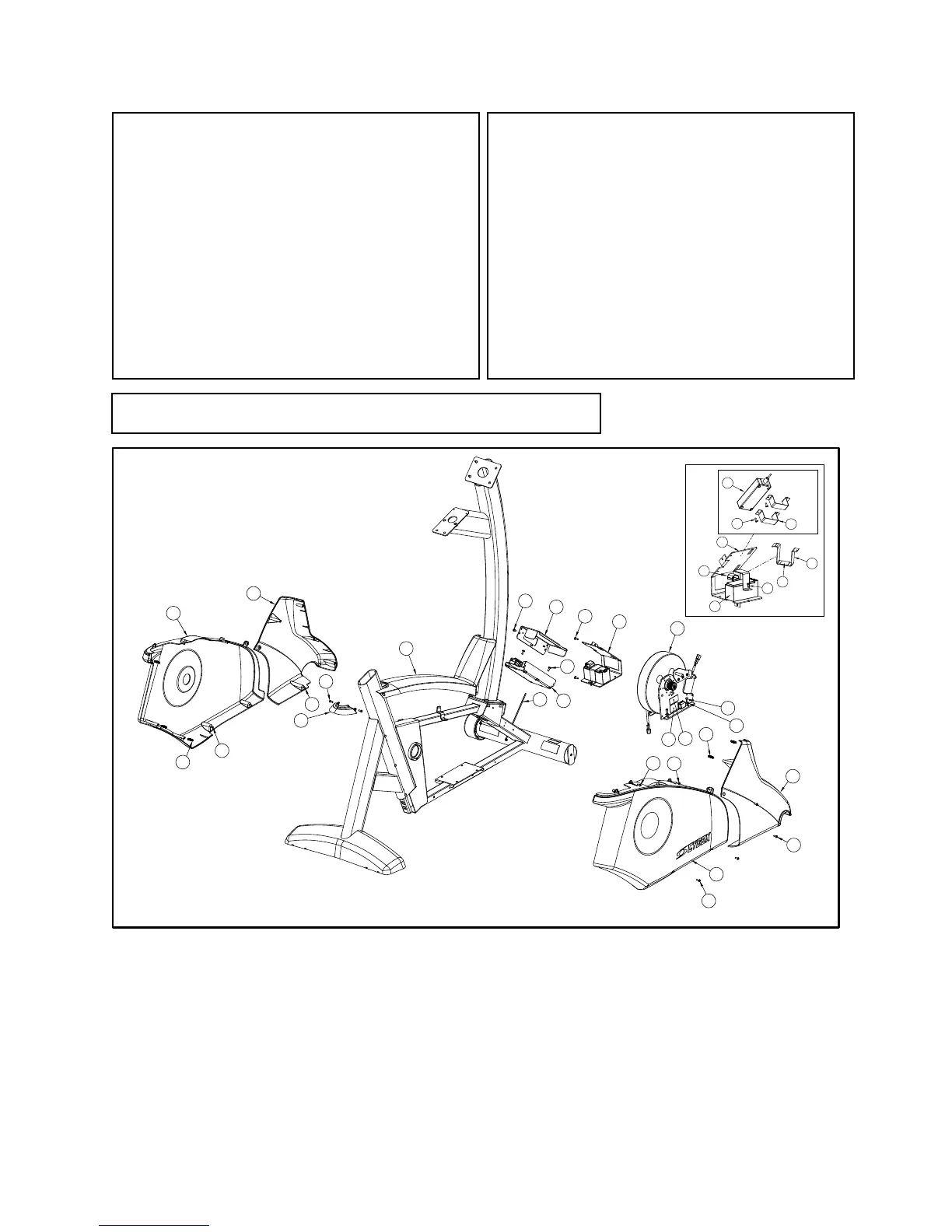

750C Covers and Lower Electronics
* Language Key
1-German 2-French 3-Spanish 4-English 6-Japanese 7-Swedish 8-Russian A-Danish
