CYBEX 750C

Cybex 750C/750R Owner’s Manual
Exploded
Views
Page D-4
ITEM QTY. PART NO. DESCRIPTION
8 1 AX-21327 ASSY,IDLER ARM,750C 750R
13 1 AX-62023 ASSY,LEFT CRANK BEARING
14 1 AX-62031 ASSY,RIGHT CRANK BEARING
15 1 BD-21366 BELT,POLY-V,480J8
16 4 HX-20360 INSERT,EXPANSION
25 1 FM-19470 CRANK,RIGHT ARM
26 1 FM-19471 CRANK,LEFT ARM
27 1 FM-19472 SHAFT,CRANK
30 1 HN-41157 NUT,7-8-24,LH,86A,ZN
33 4 HS-18294 SCREW,SEMS,10-32X.38
ITEM QTY. PART NO. DESCRIPTION
37 2 HS-19467 BOLT,M8X1X20,SCHD BTN
38 2 HS-19468 BOLT,M8X1X22,SCHD CAP
44 1 HW-18176 WASHER,CRANK KEY
45 2 HW-19469 WASHER,FLAT 17.2 X 21.5 X .75
46 1 HX-19529 GRIPRING RETAINING 3-8 IN
48 1 HX-21374 SPRING,EXTENSION
59 1 PW-20877 PULLEY,PRIMARY,750C 750R
300 1 AX-21382 PEDAL,9-16 THREAD,LEFT
301 1 AX-21383 PEDAL,9-16 THREAD,RIGHT
15
27
38
45
37
301
25
13
33
44
30
14
16
33
59
26
300
37
45
38

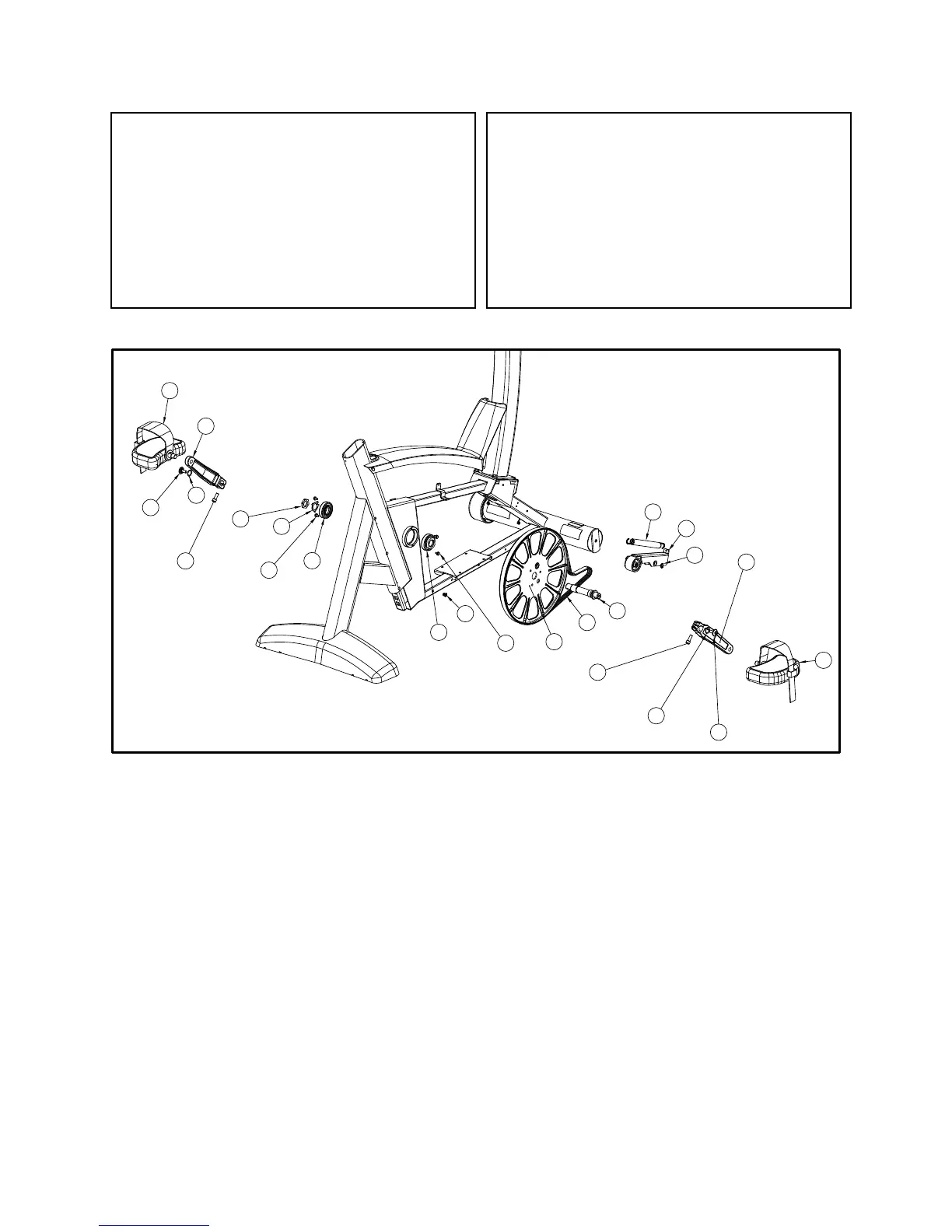

750C Crank and Pedals
48
8
46
