CYBEX 750C

Cybex 750C/750R Owner’s Manual

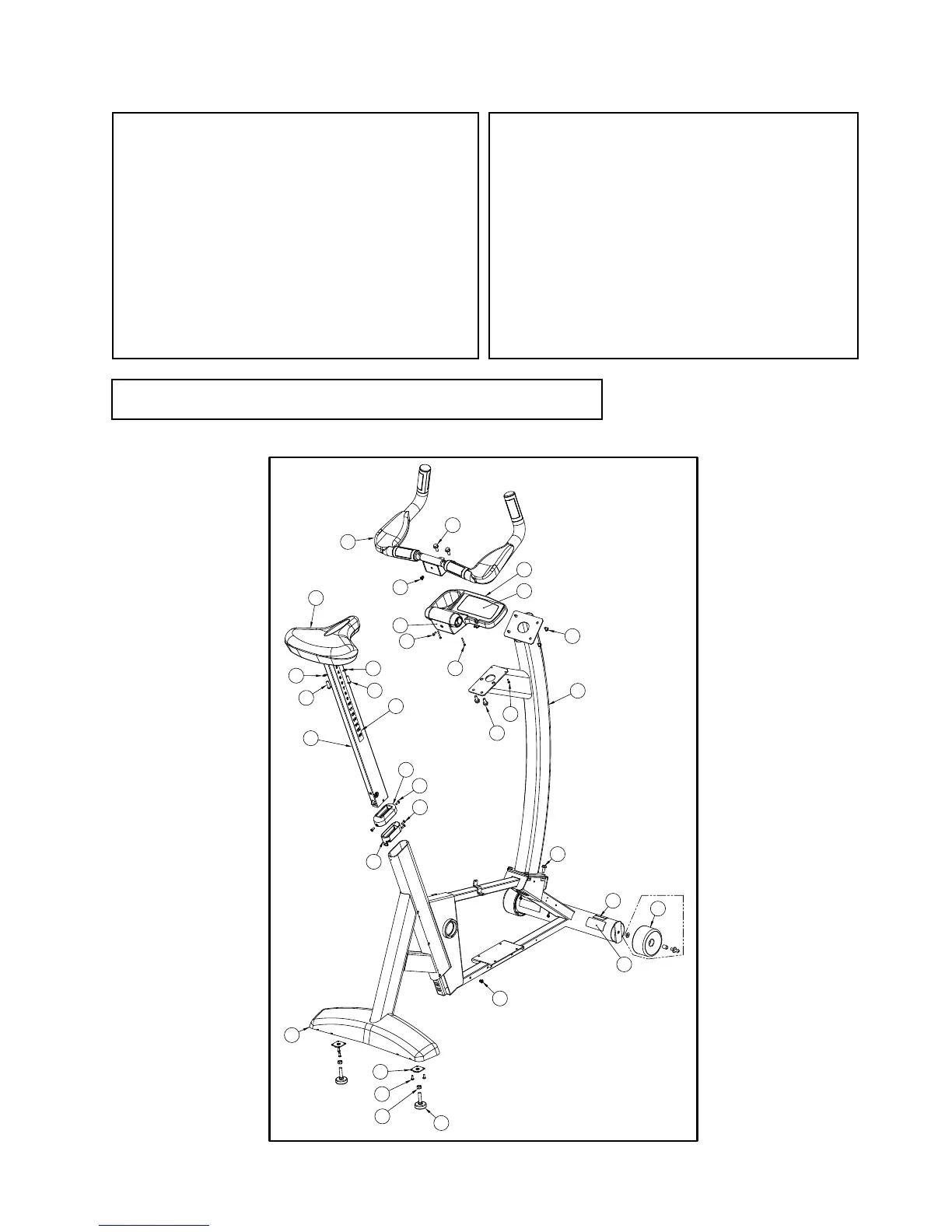

Exploded
Views
Page D-5
ITEM QTY. PART NO. DESCRIPTION
2 1 AF-21135 WELDMENT,FRAME,UPRIGHT
3 1 AF-21257 WELDMENT,CONSOLE SUPPORT
4 2 AF-21506 WELDMENT,LEVELER
7 1 AX-22166 ASSY,SEAT POST
12 2 AX-21732 ASSY,WHEEL,750C 750R
16 1 HX-20360 INSERT,EXPANSION
29 2 HN-00199 NUT 3-8-16 HEX STL ZINC
31 1 HS-15706 SCREW,8-16X.50,PNHD
32 4 HS-16875 BOLT SEMS,1-4-20X.5,PNHD
34 4 HS-18497 SCREW,10-32X .50,PNHD
35 4 HS-19108 SCREW 5-16-18X3-4LG,HXHD
39 2 HS-21600 SCREW,#6-1/2 PNHD PHIL
40 2 HS-21601 SCREW,#6-1 1/4 PNHD PHIL
42 4 HS-41006 SCREW SLFTP,10-24X.5,PNHD
ITEM QTY. PART NO. DESCRIPTION
50 1 PL-17965G GUIDE,SEAT POST UPPER
51 1 PL-17966G GUIDE,SEAT POST LOWER
52 1 PL-21529 ACCESSORY TRAY,BOTTOM,750C
58 2 HX-22203 LEVELER, 3/8-16”, RUBBER
116 1 PD-18232G SEAT BOTTOM,750C GRAY
132 1 DE-20713 LABEL,SEAT POST,IFI
139 3 HS-18298 BOLT,5-16-18X .88,BTHD CAP
140 3 HW-53018 WASHER, 5/16”, SPLIT SS,BLK
207 1 AX-21730 ASSY,ACCESSORY TRAY,750C
213 1 DE-21577-X* LABEL,WARNING,ACCESS TRAY
223 1 DE-21749-X* DECAL,DISCONNECT POWER
224 1 DE-21763 DECAL,ETL CSA
302 1 AX-21406 ASSY,HANDRAIL,750C
116
302
16
35
207
213
3
39
35
40
50
42
42
132
139
139
140
140
7
31
52
32
35
223
224
12
51
16
2
4
34
29
58
750C Frame, Seat
and Handlebars
* Language Key
1-German 2-French 3-Spanish 4-English 6-Japanese 7-Swedish 8-Russian A-Danish
