CYBEX 750C

Cybex 750C/750R Owner’s Manual
Exploded
Views
Page D-9
ITEM QTY. PART NO. DESCRIPTION
8 1 AX-21327 ASSY,IDLER ARM,750C 750R
13 1 AX-62023 ASSY,LEFT CRANK BEARING
14 1 AX-62031 ASSY,RIGHT CRANK BEARING
15 1 BD-21366 BELT,POLY-V,480J8(1222 PJ8)
27 1 FM-19470 CRANK,RIGHT ARM
28 1 FM-19471 CRANK,LEFT ARM
29 1 FM-19472 SHAFT,530C R,CRANK
33 1 HN-41157 NUT,7-8-24,LH,86A,ZN
39 4 HS-18294 SCREW,SEMS,10-32X.38
41 2 HS-19467 BOLT,M8X1X20,SCHD BTN BTN
42 2 HS-19468 BOLT,M8X1X22,SCHD CAP
48 1 HW-18176 WASHER,CRANK KEY
49 2 HW-19469 WASHER,FLAT 17.2 X 21.5 X .75
50 1 HX-19529 GRIP RING RETAINING 3-8 IN
52 1 HX-21374 SPRING,EXTENSION
63 1 PW-20877 PULLEY,PRIMARY,750C 750R
300 1 AX-21382 PEDAL,9-16 THREAD,LEFT
301 1 AX-21383 PEDAL,9-16 THREAD,RIGHT
50 8
29
63
15
49
41
27
301
42
39
14
52
13
48
28
300
42
49
41
33
39

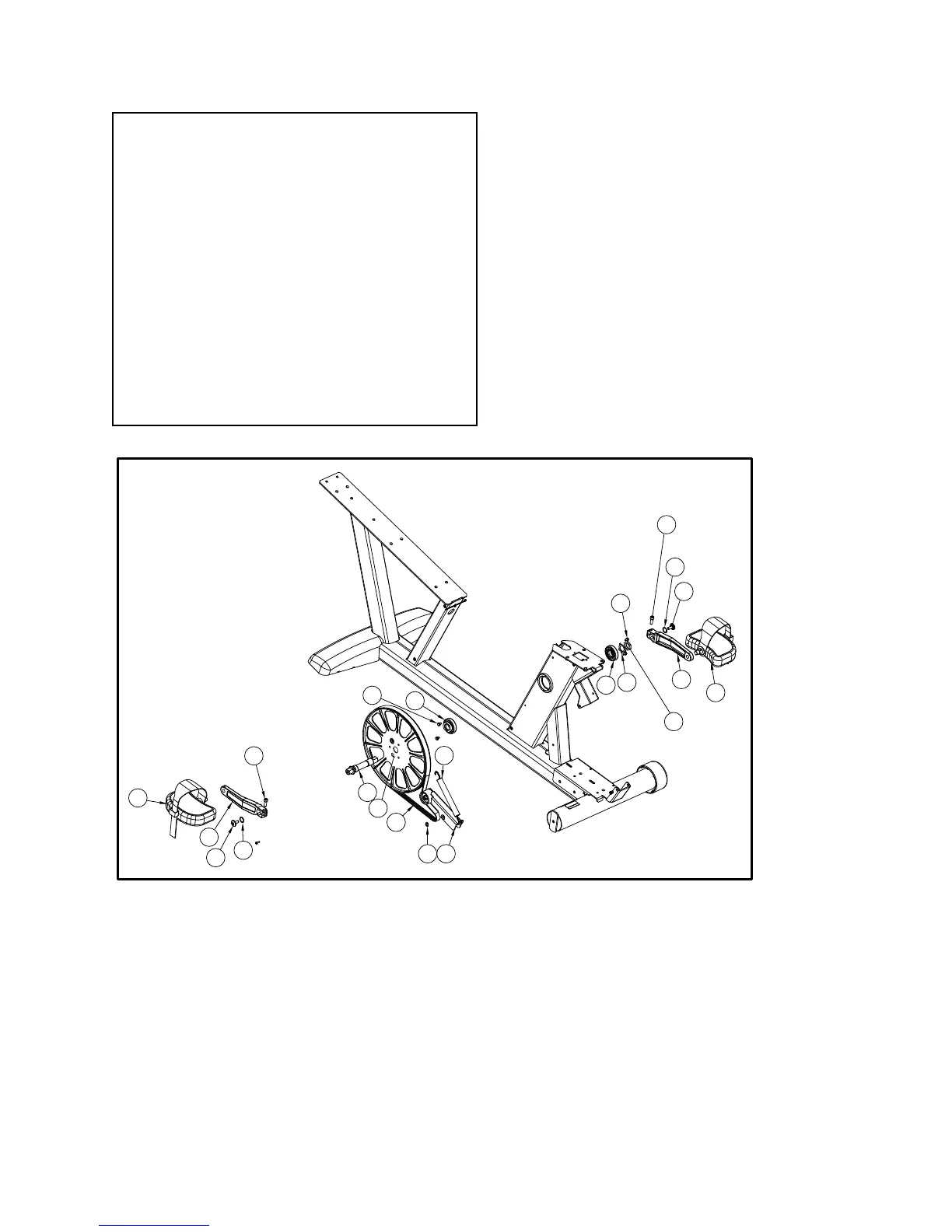

750R Crank and Pedals
