CYBEX 750C

Cybex 750C/750R Owner’s Manual
Exploded
Views
Page D-10
ITEM QTY. PART NO. DESCRIPTION
46 6 HS-41126 BOLT,5-16X1.0,BTHD,SST,BLK
55 1 PL-18132G END CAP,SEAT SHUTTLE,GRAY
62 2 HX-22203 LEVELER, 3/8-16”, RUBBER
66 4 HS-41006 SCREW SLFTP,10-24X.5,PNHD
67 1 PL-50118 CLAMP,CABLE CT
70 4 HS-41107 BOLT,5-16-18X1.5,BTHD,SST,BLK
74 4 HW-53018 WASHER 5-16 SPLIT SS,BLK
207 1 AX-21738 ASSY,IPOD TRAY
213 1 DE-21590-X* LABEL,WARNING,IPOD HOLDER
223 1 DE-21749-X* DECAL,DISCONNECT POWER
224 1 DE-21763 DECAL,ETL CSA
303 1 AX-21740 ASSY,CONSOLE WELDMENT,750R
304 2 HX-21329 GRIP, HANDRAIL, 750R
12
62
40
32
16
16
223
224
24
37
66
67
66
9
16
31
46
2
16
3
16
26
213
207
36
304
303
10
70
74
55
45

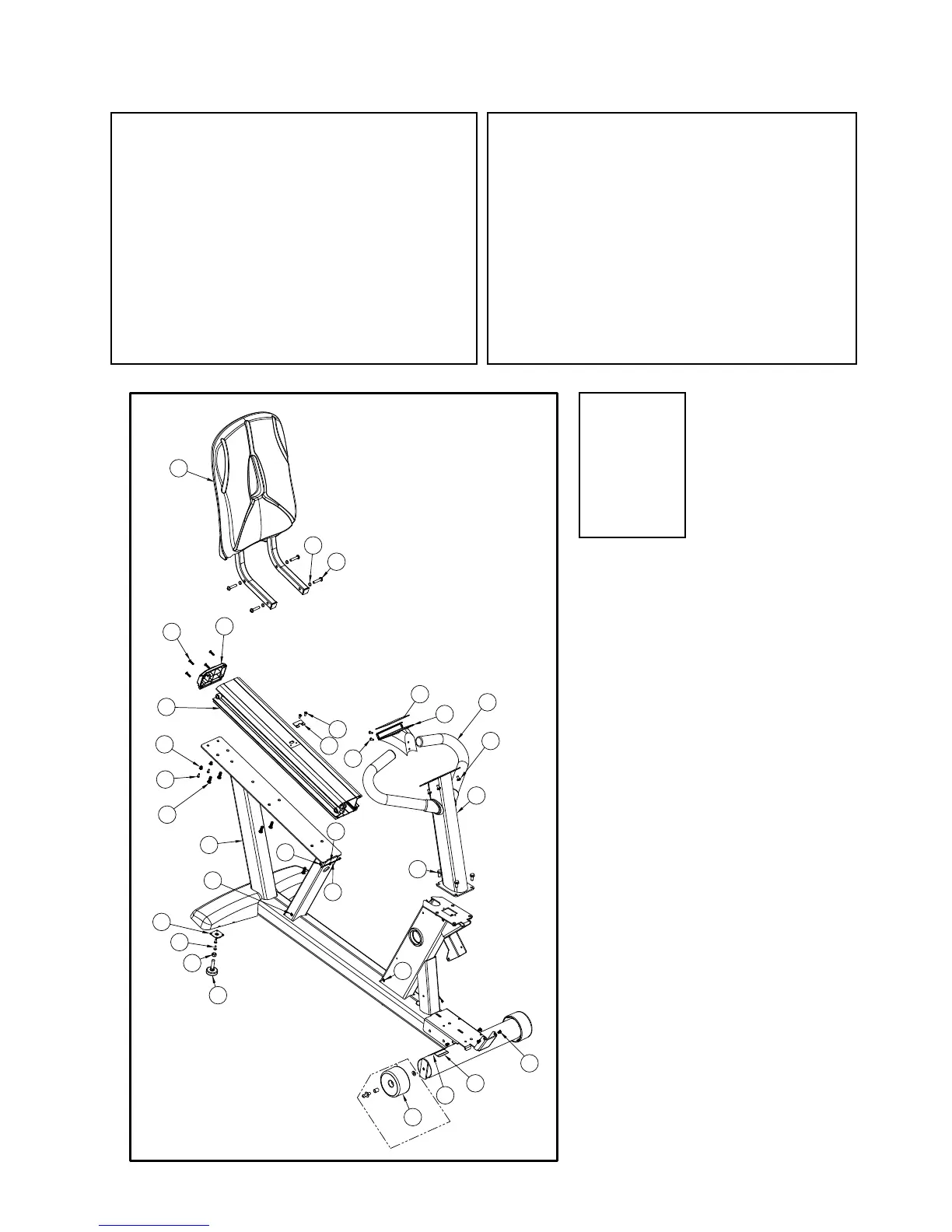

750R Frame
ITEM QTY. PART NO. DESCRIPTION
2 1 AF-21040 WELDMENT,FRAME,750R
3 1 AF-21506 WELDMENT,LEVELER WELDNUT
9 1 AX-21387 ASSY,SEAT SHUTTLE EXTR.
10 1 AX-21670 ASSY,SEAT BACK,750R
12 2 AX-21732 ASSY,WHEEL,750C 750R
16 4 HX-20360 INSERT,EXPANSION
24 2 EH-00472 CABLE TIE,3.9IN
26 2 EH-10291 TY WRAP BASE
31 2 HS-15706 SCREW,8-16X.50,PNHD
32 2 HN-00199 NUT 3-8-16 HEX STL ZINC
36 4 HS-16875 BOLT SEMS,1-4-20X.5,PNHD
37 4 HS-19108 SCREW 5-16-18X3-4LG,HXHD
40 2 HS-18497 SCREW,10-32X .50,PNHD
45 4 HS-41109 SCREW SLFTP,10-24X.75,PNHD
* Language Key
1-German
2-French
3-Spanish
4-English
6-Japanese
7-Swedish
8-Russian
A-Danish
