CYBEX 750C

Cybex 750C/750R Owner’s Manual

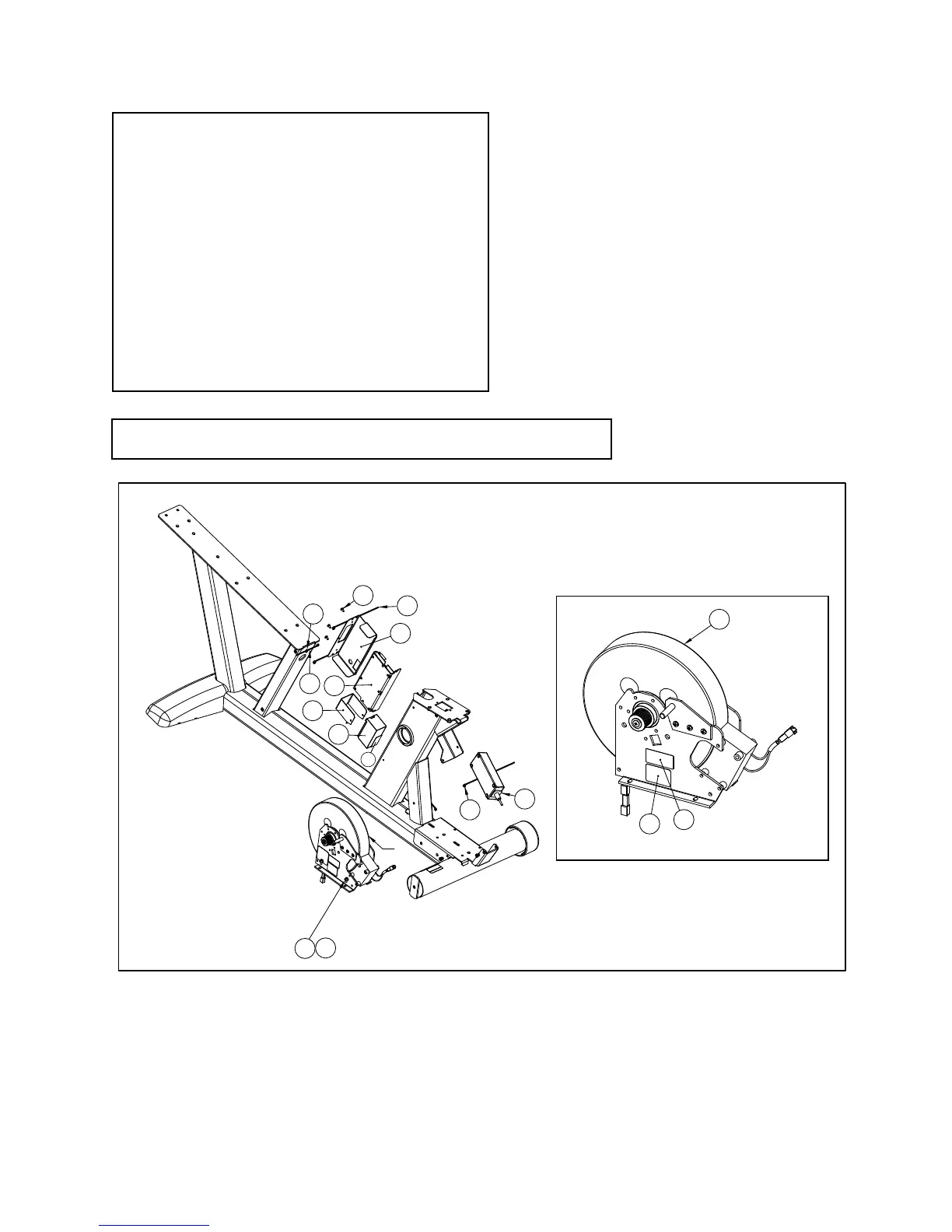

Exploded
Views
Page D-11
ITEM QTY. PART NO. DESCRIPTION
1 1 AD-21280 PCA,LOWER CONTROLLER
11 1 AX-21683 ASSY,BRAKE SHIELD IDLER,750R
23 1 EC-21351 BATTERY,12V/1.2AHR
24 2 EH-00472 CABLE TIE,3.9IN
25 2 EH-00986 TY WRAP,T B TYB-25M 9 IN
26 2 EH-10291 TY WRAP BASE
30 1 FS-21511 CLAMP,BATTERY,750R
34 3 HS-11977 SCREW SEMS,8-32X.38,PNHD
43 4 HS-21612 SCREW,10-32X7-16,SCHD CAP,SS
47 4 HW-21878 WASHER SAE NO.10 STL ZINC
54 1 HX-21603 TAPE, DBL SIDED
91 1 FS-21599 COVER,LOWER CONTROLLER
92 1 TR-21265 POWER SUPPLY
93 1 EH-42713 CABLE TIE 11IN
209 1 DE-18362-X* DECAL,CAUTION MOVING PARTS
210 1 DE-18363-X* LABEL,WARNING HOT FLYWHEEL
SEE
DETAIL
"A"
DETAIL A
11
209
210
43
47
92
93
54
23
1
30
24
91
34
25
26
750R Lower Electronics
* Language Key
1-German 2-French 3-Spanish 4-English 6-Japanese 7-Swedish 8-Russian A-Danish
