CYBEX 750T Service Manual

Cybex 750T Treadmill Service Manual
Service
Page 4-8

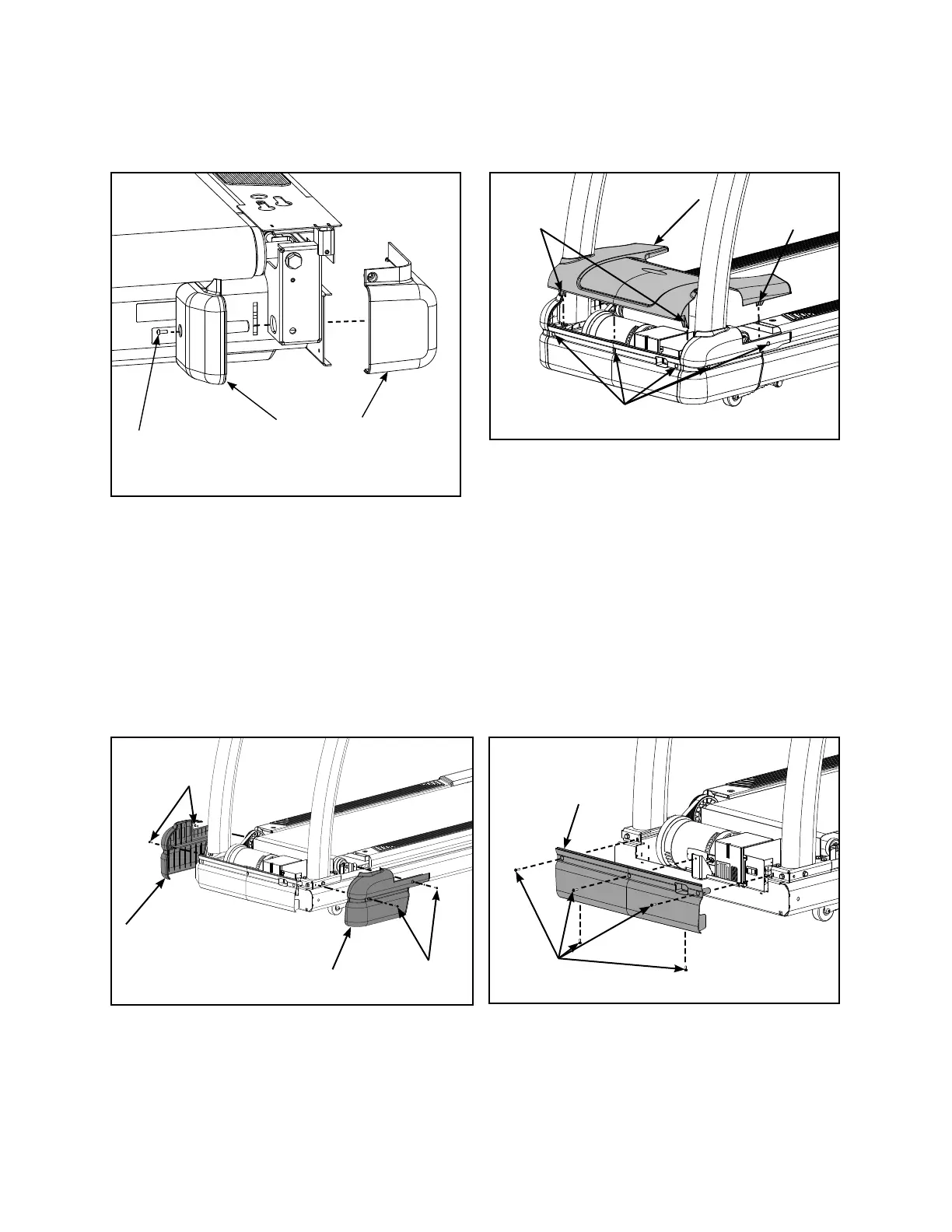

D. Using a Phillips screwdriver, remove the screw securing each of the lower inner caps to the lower
outer caps See Figure 6.
3. Remove the motor covers.
A. Using a Phillips screwdriver, loosen the seven screws on the front motor cover and each motor
cover side (left and right). See Figure 7.
B. Lift the motor cover up and off the treadmill. The screws will stay in place. See Figure 7.
C. Using a Phillips screwdriver, remove the four screws securing each motor cover side (left and
right). See Figure 8.
Figure 6
Screw (1)
Figure 7
Motor Cover
Tabs
Lower
Outer
Cap
Lower
Inner Cap
Figure 9
Front Motor
Cover
Screws (5)
Figure 8
Screws (2)
Screws (2)
Left Side Motor Cover
Tab
Screws (7)
Right Side Motor Cover
D. Using a Phillips screwdriver, remove the five screws securing the front motor cover. See
Figure 9. NOTE: The treadmill will need to be elevated or tipped on it’s side to remove the two
lower screws.

CYBEX 750T Specifications

General

Motor	3.0 HP
Incline Range	0% - 15%
Max User Weight	400 lbs
Heart Rate Monitoring	Wireless Receiver
Weight	350 lbs
