CYBEX 750T Service Manual

Cybex 750T Treadmill Service Manual
Service
Page 4-18
D. Using a Phillips screwdriver, fully tighten the seven screws on the front motor cover and each
motor cover side (left and right). See Figure 7.
16. Test the unit for proper operation.
A. Connect the treadmill to the power outlet.
B. Operate the unit at all levels to verify proper operation.
Elevation Motor
Tools Required
• Phillips screwdriver
• 9/16” Open end wrench
• 9/16” Socket wrench
WARNING: Disconnect the power cord before beginning this procedure. Keep wet items away
from inside parts of the treadmill. Electrical shock could occur even if the treadmill is
unplugged. A charge can remain after unplugging the power cord and turning off the
treadmill..
1. Disconnect the external power source.
A. Unplug the treadmill from the power outlet.
2. Remove the motor cover.
A. Using a Phillips screwdriver, loosen the seven screws on the front motor cover and each motor
cover side (left and right). See Figure 7.
B. Lift the motor cover up and off the
treadmill. The screws will stay in place.
See Figure 6.
3. Disconnect the elevation motor cable.
NOTE: The treadmill will need to be elevated or
tipped on it’s side to remove the elevation
motor.
A. Cut the wire ties and disconnect the
elevation motor cable from the motor
controller. See Figure 23.
B. Pull the elevation motor cable out through
the grommet in the frame. See Figure 23.

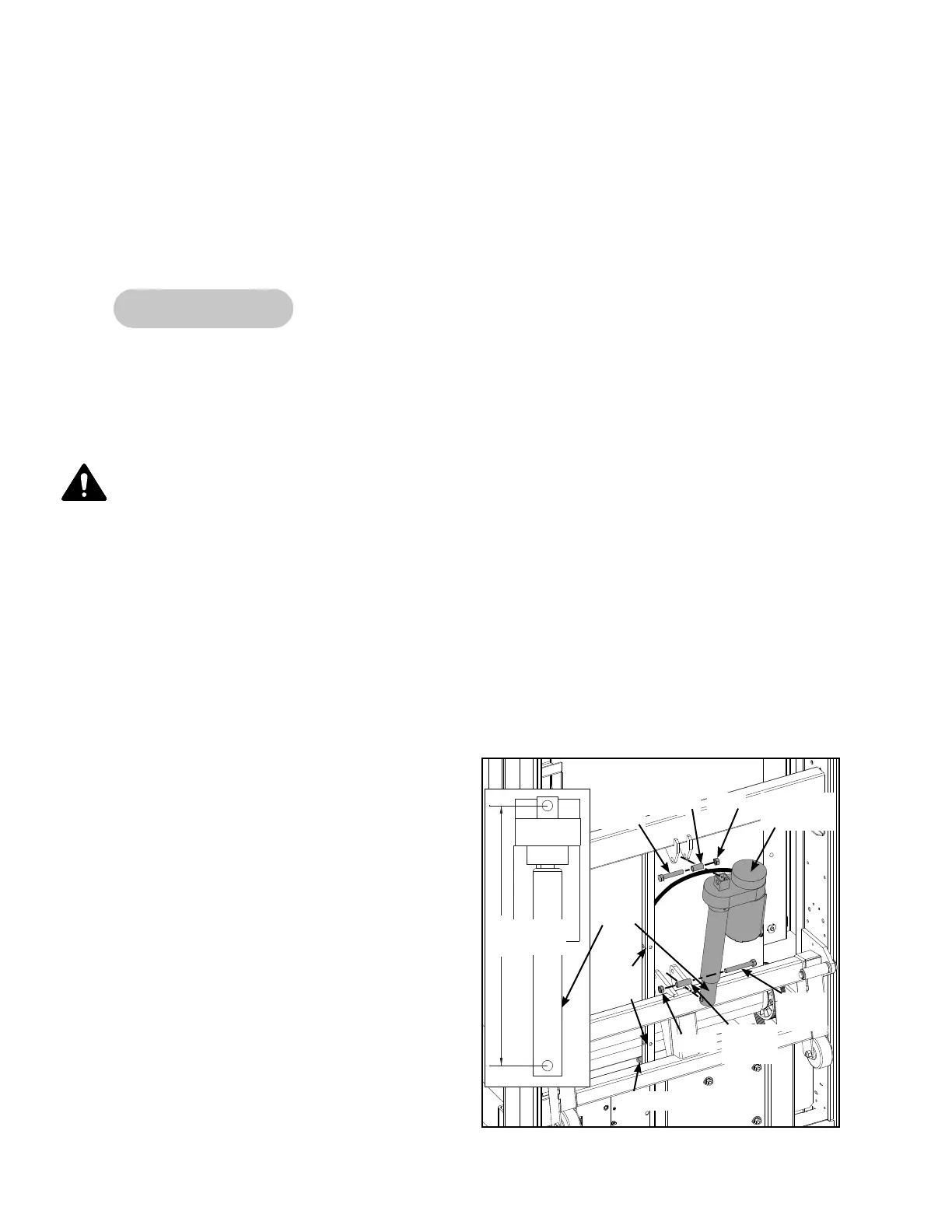

Figure 23
Long
Bolt
Nut
13.5”
(34.3 cm)
Long
Sleeve
Elevation
Motor
Short
Bolt
Nut
Short
Sleeve
Grommet
Wire
Ties
Tube
Nut

CYBEX 750T Specifications

General

Motor	3.0 HP
Incline Range	0% - 15%
Max User Weight	400 lbs
Heart Rate Monitoring	Wireless Receiver
Weight	350 lbs
