CYBEX 750T Service Manual

Cybex 750T Treadmill Service Manual
Service
Page 4-10
Front Roller
6. Remove the front roller.
WARNING: Drive belt is under tension. Do not
pinch fingers while releasing tension.
Tools Required
• 3/4” Socket wrench
A. Using a 9/16” Socket wrench loosen the right
front roller bolt. See Figure 12. NOTE: The bolt
will stay on the front roller. You do not
need to remove it for this procedure.
B. Using a 9/16” Socket wrench loosen the
left front roller bolt.
C. Slide the drive belt off of the front roller
and remove the front roller.
Running Belt and Deck
Tools Required
• 7/16” Socket wrench
7. Remove the deck.
A. If rotating or flipping the deck, make a
note on the deck so you know which way
it was positioned.
8. Remove the deck by sliding it sideways out of the unit.
A. Using a 7/16” Socket wrench, remove the eight screws, eight
split washers and eight flat washers that hold the deck in
place. See Figure 13.
B. Slide the running deck out of the frame.
9. Inspect the deck bumpers.
A. Inspect the deck bumpers for cracks or wear. See Figure 14.
NOTE: Unscrew and replace the rubber mounts if the rubber
is cracked or worn.
10. Remove the running belt.
A. With the deck, front and rear rollers out of the unit you can
now remove the running belt.

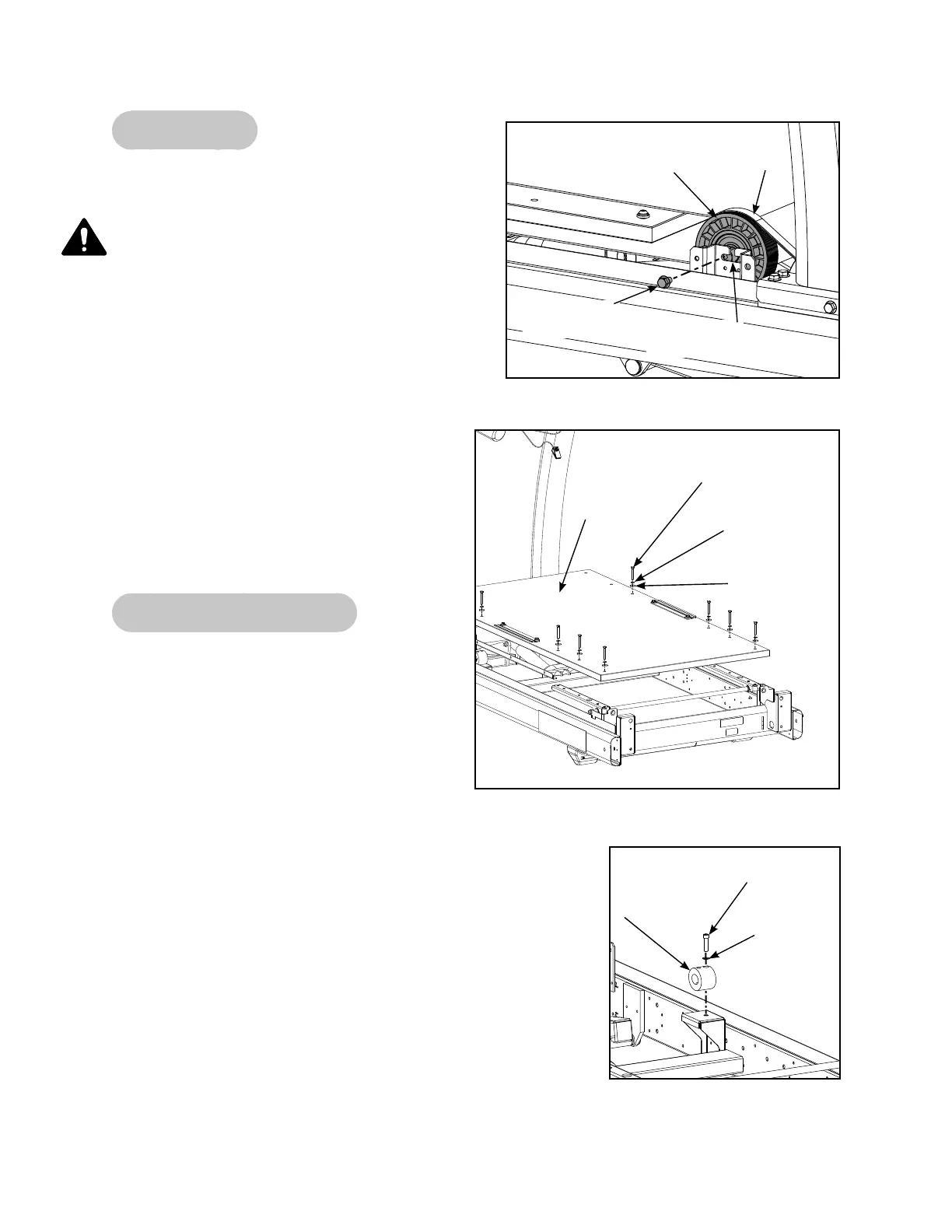

Figure 12
Whiz Lock
Bolt
Front Roller
Figure 13
7/16” Bolts
(4 Per Side)
Split Washers
(4 Per Side)
Flat Washers
(4 Per Side)
Deck
Tensioning
Slot
Drive
Belt
Figure 14
Washer
Deck
Bumper
Mounting
Screw

CYBEX 750T Specifications

General

Motor	3.0 HP
Incline Range	0% - 15%
Max User Weight	400 lbs
Heart Rate Monitoring	Wireless Receiver
Weight	350 lbs
