Cybex 750T Treadmill Service Manual
Service
Page 4-7
End Caps and Top Platforms
NOTE: During this procedure you will have the option to remove the end caps, top platforms, rear roller,
front roller, running deck, running belt, rubber mounts, drive belt and drive motor. Follow this
procedure from step 1 even though the heading for some of these procedures will appear before
the step where you remove that part.
Tools Required
• Phillips screwdriver
• 3/16” Allen wrench
• 7/16” Socket wrench
WARNING: Disconnect the power cord before beginning this procedure. Keep wet items away
from inside parts of the treadmill. Electrical shock could occur even if the treadmill is
unplugged. Do not touch components near the motor controller. A charge can remain
after unplugging the power cord and turning off the treadmill.
1. Disconnect the external power source.
A. Turn the main power switch on the front to the off (O) position.
B. Unplug the treadmill from the power outlet.

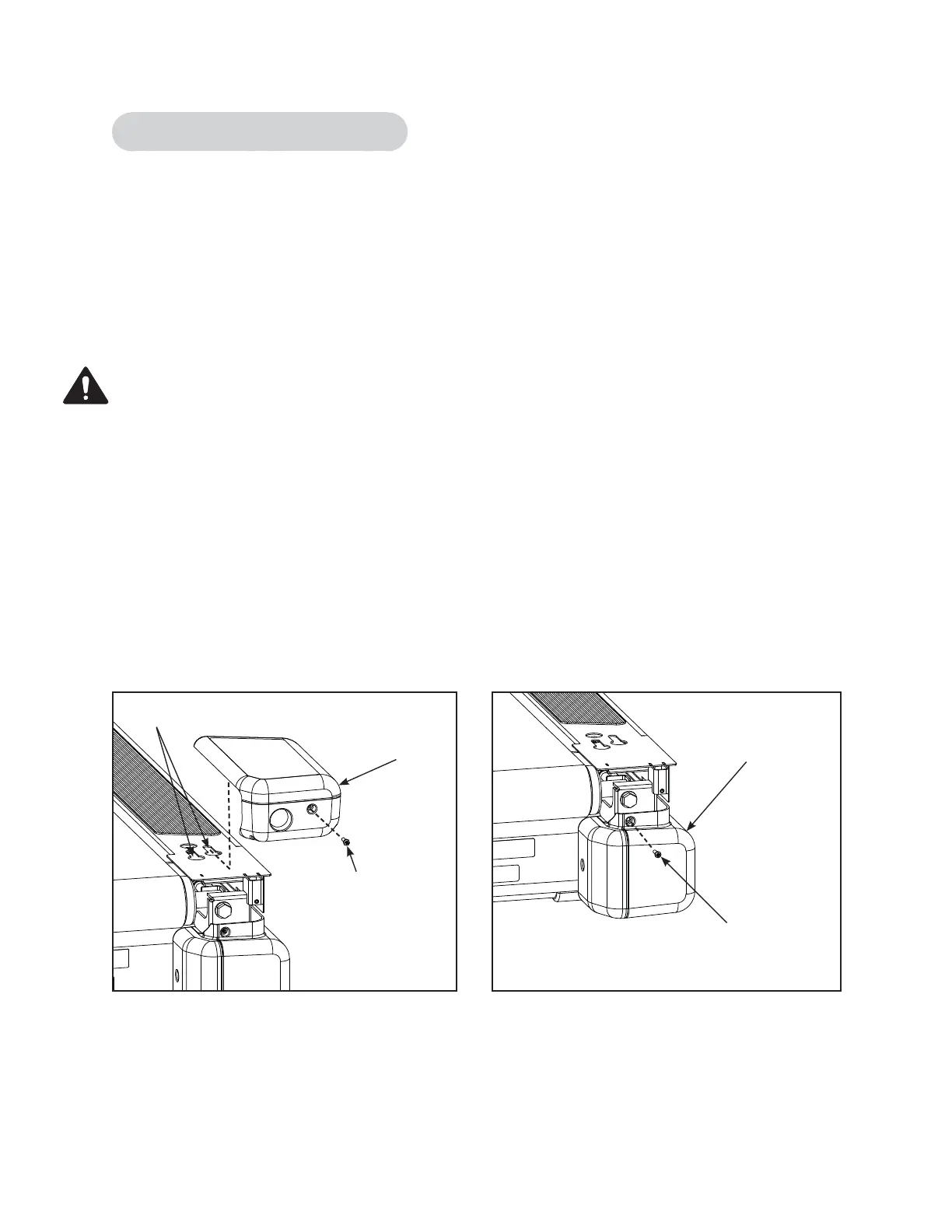

2. Remove the end caps.
A. Using a Phillips screwdriver, remove the screw securing each of the top end caps to the frame.
See Figure 4.
Figure 5
Screw (1)
Lower Outer
Cap
Figure 4
Top
End
Cap
Screw (1)
Keyhole Slots
B. Slide each top end cap to the rear of the treadmill and lift up and out of the keyhole slots.
C. Using a Phillips screwdriver, remove the rear screw securing each of the lower outer caps to the
frame. See Figure 5.
