Cybex 750T Treadmill Service Manual
Service
Page 4-17
Line Filter
Tools Required
• Phillips screwdriver
13. Replace the line filter.
NOTE: Take notice of which cables are connected to the line fi lter.
A. Disconnect the two fast-ons connectors that go from the line filter to the motor controller.
B. Disconnect the two fast-ons connectors that go from the line filter to the On/Off switch.
C. Using a Phillips screwdriver, remove
the two screws that hold the line filter
to the base plate. See Figure 22.
D. Place the new line filter in position on
the motor base plate.
E. Using a Phillips screwdriver, secure
the two screws that hold the line filter
to the base plate. See Figure 22.
14. Connect the line filter cables.
A. Connect the white cable from the On/
Off switch to the terminal on the
line filter. See Figure 22.
B. Connect the black cable from the On/
Off switch to the terminal on the line
filter. See Figure 22.
C. Connect the white cable from the motor controller input to the terminal on the line filter. See
Figure 22.
D. Connect the black cable from the motor controller input to the terminal on the line filter. See
Figure 22.
15. Secure the motor cover.
A. Using a Phillips screwdriver, install the five screws securing the front motor cover. See
Figure 9. NOTE: The treadmill will need to be elevated or tipped on it’s side to install the two
lower screws. Do not fully tighten the top three screws.
B. Using a Phillips screwdriver, install the four screws securing each motor cover side (left and
right). See Figure 8. NOTE: Do not fully tighten the four screws.
C. Place the motor cover in position the treadmill by locating the tabs in the correct locations. See
Figure 7. NOTE: If motor cover does not fi t properly, loosen the front and side cover screws as
needed.

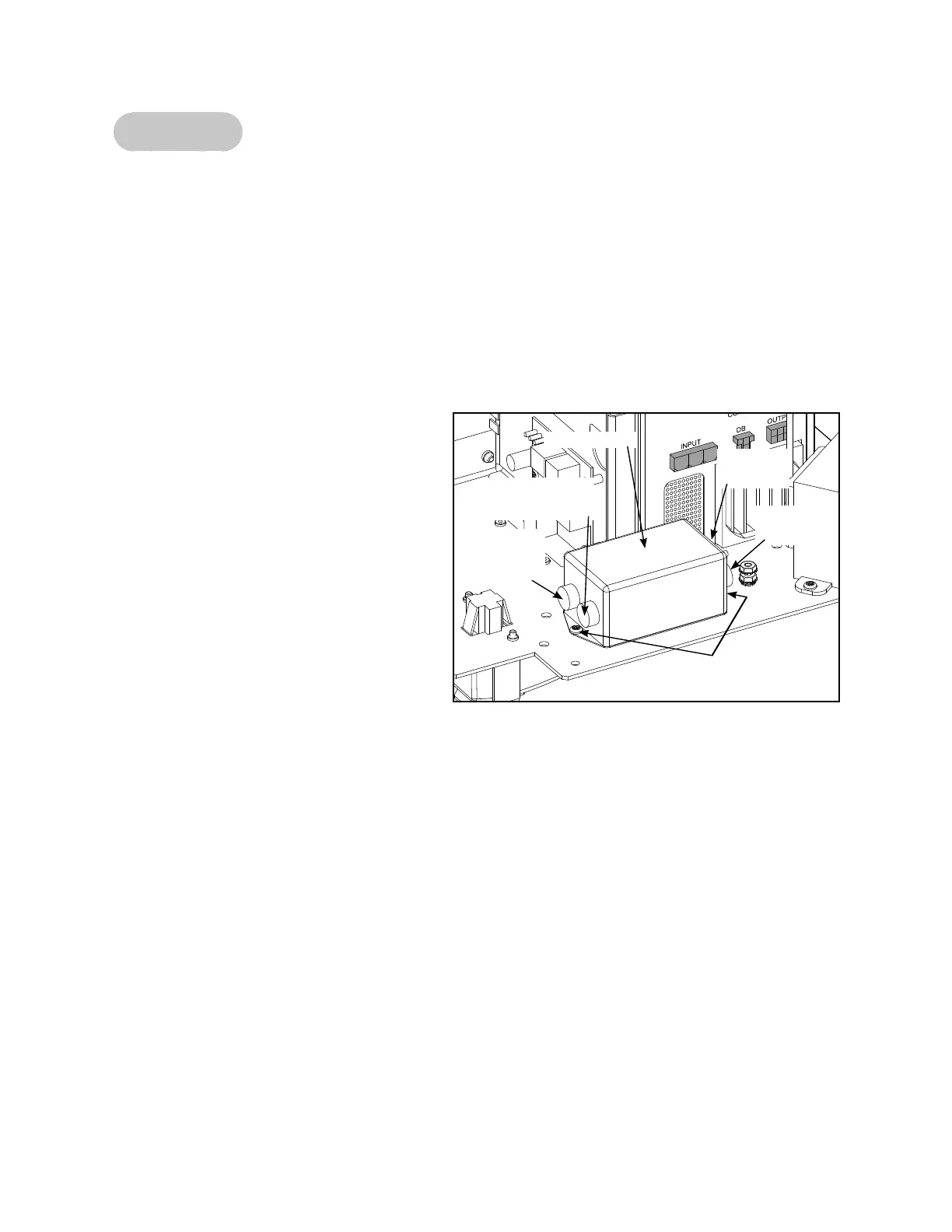

Figure 22
Screws (2)
Line Filter
To On/Off
Switch
(Black)
To On/Off
Switch (White)
To Input
(Black)
To Input
(White)
