CYBEX 750T Service Manual

Cybex 750T Treadmill Service Manual
Service
Page 4-11
Deck Pivot
Tools Required
• 9/16” Socket wrench
11. Remove the deck pivot assembly.
A. Using a 9/16” Socket wrench, remove
the two mounting bolts securing the deck
pivot shaft to the frame See Figure 14.
NOTE: There is one bolt at each end of
the deck pivot shaft.
B. With the deck pivot shaft out of the unit
you can now remove the deck pivot
brackets, bushings, wave washer and
the retaining rings. See Figure 15.
Drive Belt
12. Remove the drive belt.
A. If you are changing the drive belt, slip the
drive belt around the flywheel pulley and
off the motor. See Figure 16.
Drive Motor
Tools Required
• Phillips screwdriver
• 1/2” Socket wrench with a 6” extension
13. Disconnect the motor cables.
A. Locate the drive motor cables exiting the
drive motor and connected to the motor
controller.
B. Disconnect the motor cables from the motor
controller.
14. Remove Drive motor.
A. Using a 1/2” Socket with a 6” extension remove the four mounting nuts and washers from the
drive motor mounting brackets. See Figure 16.
Bushing (4)
Retaining
Ring (2)
Mounting
Bolt (2)
Deck Pivot
Bracket (2)
Deck
Pivot
Shaft (1)

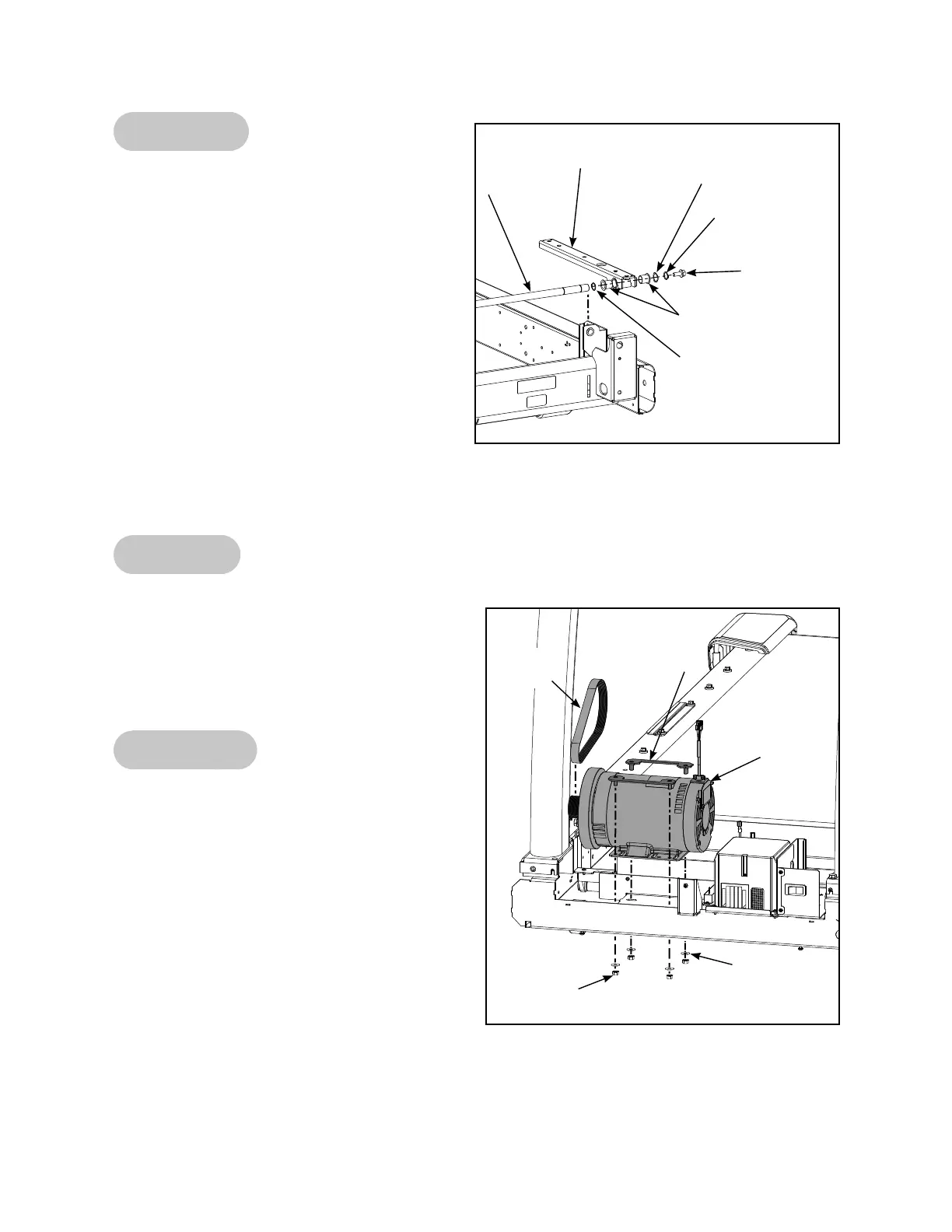

Figure 15
Retaining
Ring (2)
Wave
Washer (2)
Figure 16
Drive Motor
Mounting
Brackets (2)
Drive
Motor
Mounting
Nuts (4)
Mounting
Washers (4)
Drive
Belt

CYBEX 750T Specifications

General

Motor	3.0 HP
Incline Range	0% - 15%
Max User Weight	400 lbs
Heart Rate Monitoring	Wireless Receiver
Weight	350 lbs
