Cybex 750T Treadmill Service Manual
Exploded
Views
Page B-2
ITEM QTY. PART NO. DESCRIPTION
42 9 HS-15706 SCREW, 8-16 X .50”, PNHD, STL,
BLK ZN
49 8 HS-19108 SCREW 5/16 - 18 X 3/4”, HXHD
302 1 AF-21761 WELDMENT, CONSOLE
303 1 AW-19694 CABLE, HANDSET TO DISPLAY
304 1 AW-20170 CABLE, MOTION SENSOR
305 1 AW-20239 CABLE, 750T CONSOLE
306 1 AX-19936 ASSY, HANDRAIL, LEFT
307 1 AX-19941 ASSY, HANDRAIL, RIGHT
309 1 AX-20552 ASSY, E-STOP KEY
311 1 DE-20364 DIFFUSER, DISC, 0.6” OD
312 1 DE-21184 DECAL, 751T, CONSOLE, TOP,
AMBER LED, LANGUAGES
312 1 DE-21184-4 DECAL, 751T, CONSOLE, TOP,
AMBER LED, ENGLISH
313 1 EC-19706 FAN, 12 VDC, 120 X 120MM
314 1 EC-19974 SENSOR, IR MOTION
315 4 HN-20362 NUT, SELF THREADING, 3/8 X
11/16”, ST
316 2 HS-10716 SCREW, 4-40 X 0.38”, PNHD,
PHIL
317 4 HS-14391 SCREW, 6-32 X .38, PNHD, PHIL
319 8 HS-18320 SCREW, 6-19 X 1-2”, PNHD, PHIL
321 2 HS-20367 SCREW, SEMS, M4 X 10 mm,
PNHD, PHIL
322 3 HS-20399 SCREW, SEMS, 8-32 X 1.25”,
PNHD, PHIL
323 4 HS-41006 SCREW, SLFTP, 10-24 X .5,
PNHD, PHIL
324 15 HS-41187 SCREW, SLFTP, 8-16 X .3125”,
PLASTITE
325 2 HX-20360 INSERT, EXPANSION, PLASTIC,
#8 - #1
326 1 PL-20143 HOUSING, E-STOP
328 1 PL-20210 CONSOLE, BACK PANEL
329 1 PL-20211 CONSOLE, JUNCTION COVER,
INNER, LEFT
ITEM QTY. PART NO. DESCRIPTION
330 1 PL-20218 DUCT, FAN, RIGHT
331 1 PL-20274 ISOLATOR, WATER, BOTTLE, LEFT
332 1 PL-20275 ISOLATOR, WATER, BOTTLE, RIGHT
333 1 PL-20340 DUCT, FAN, LEFT
334 1 PL-20355 COVER, JUNCTION, CONSOLE,
OUTER, LEFT
335 1 PL-20356 COVER, JUNCTION, CONSOLE,
INNER, RIGHT
336 1 PL-20357 COVER, JUNCTION, CONSOLE,
OUTER, RIGHT
337 1 PL-20550 CONSOLE, FRONT
338 1 SW-21183-X* MEMBRANE, 750T, KEYBOARD
345 1 PL-20549-X* BUTTON, STOP, MOLDED
346 1 AX-20513 SWITCH, BUTTON, STOP
347 4 HS-20553 SCREW, 4 X 3/8”, SLFTP, PNHD,
PHIL, ZN, PLASTITE
350 1 DE-20735-X* LABEL, WARNING, CONSOLE
351 2 KHX-21337 BOTTLE STABILIZER
352 1 DE-21596 LABEL, AV BLANK, 750T
352 1 SW-20813-X* MEMBRANE,AV KEYPAD
356 1 AX-21798-X ASSY,HANDSET,TOP W-TABS
362 1 PL-21792 COVER,HANDSET BOTTOM
364 1 PL-21794 COVER,HANDSET NON AV MODULE
365 1 KAW-20820 KIT,C-HR REPLACEMENT CONTACT
GRIPS W-CONNECTOR WIRES
400 1 AD-21736 PCA, HANDSET, UNIVERSAL
416 1 PL-20278 CONSOLE TOP W/O A/V
503 9 HS-18311 SCREW, 8-16 X .75”, PNHD PHIL,
STL
504 2 HS-20361 SCREW, SLFTP, 8-16 X 2.5”,
PLASTITE
551 1 KAX-22598-4 KIT,751T SPLIT DISPLAY W
ENUNCIATOR,ENG
554 1 AD-22403 PCA,751T SPLIT DISPLAY MCC
554 1 AD-22509 PCA,751T SPLIT DISPLAY IFI MCC
555 1 AW-21281 CABLE, DISPLAY UPPER TO
LOWER

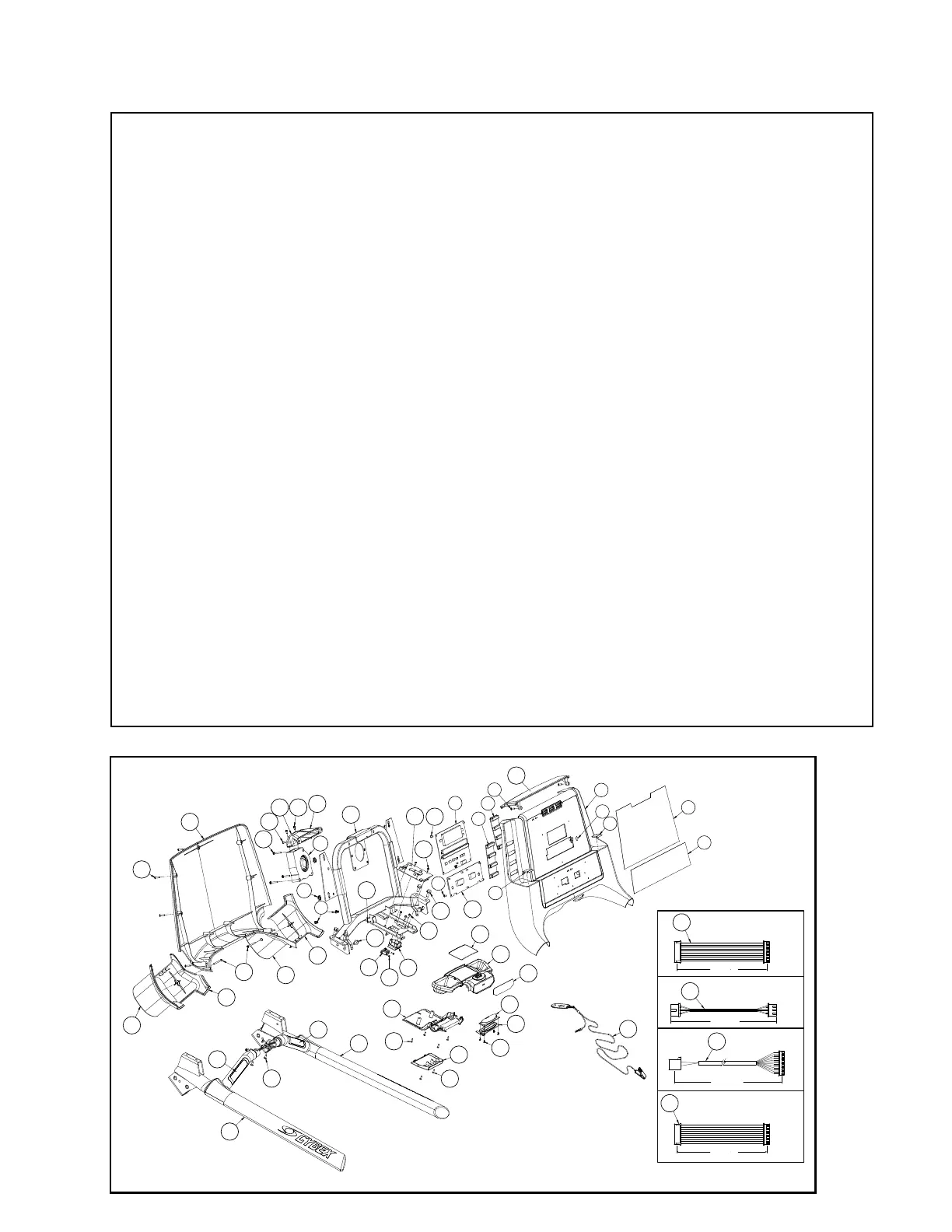

751T Console
551
324
331
332
416
306
329
334
504
335
503
336
400
302
321
333
330
324
322
317
325
315
313
328
554
324
337
311
351
351
312
338
307
326
316
314
323
309
345
346
347
365
365
305
304
303
A
B
AW-19694
Handset to Display Cable
AW-20170
Motion Sensor Cable
AW-20239
Display Cable
42
42
324
49
49
5.0” REF
555
AW-21281
Upper to Lower Display Cable
3.0” REF
5.9” REF
63.0” REF
350
352
356
362
319
364
319
* Language Key
1-German 2-French 3-Spanish 4-English 6-Japanese 7-Swedish 8-Russian A-Danish
To Next Page
