CYBEX 770T - Console Assembly; Louver Duct Screw Fan; Remove the Six Screws Securing the Fan and Duct to the Console Assembly Using a Phillips Screwdriver; The Louver Is Held in Place by the Duct

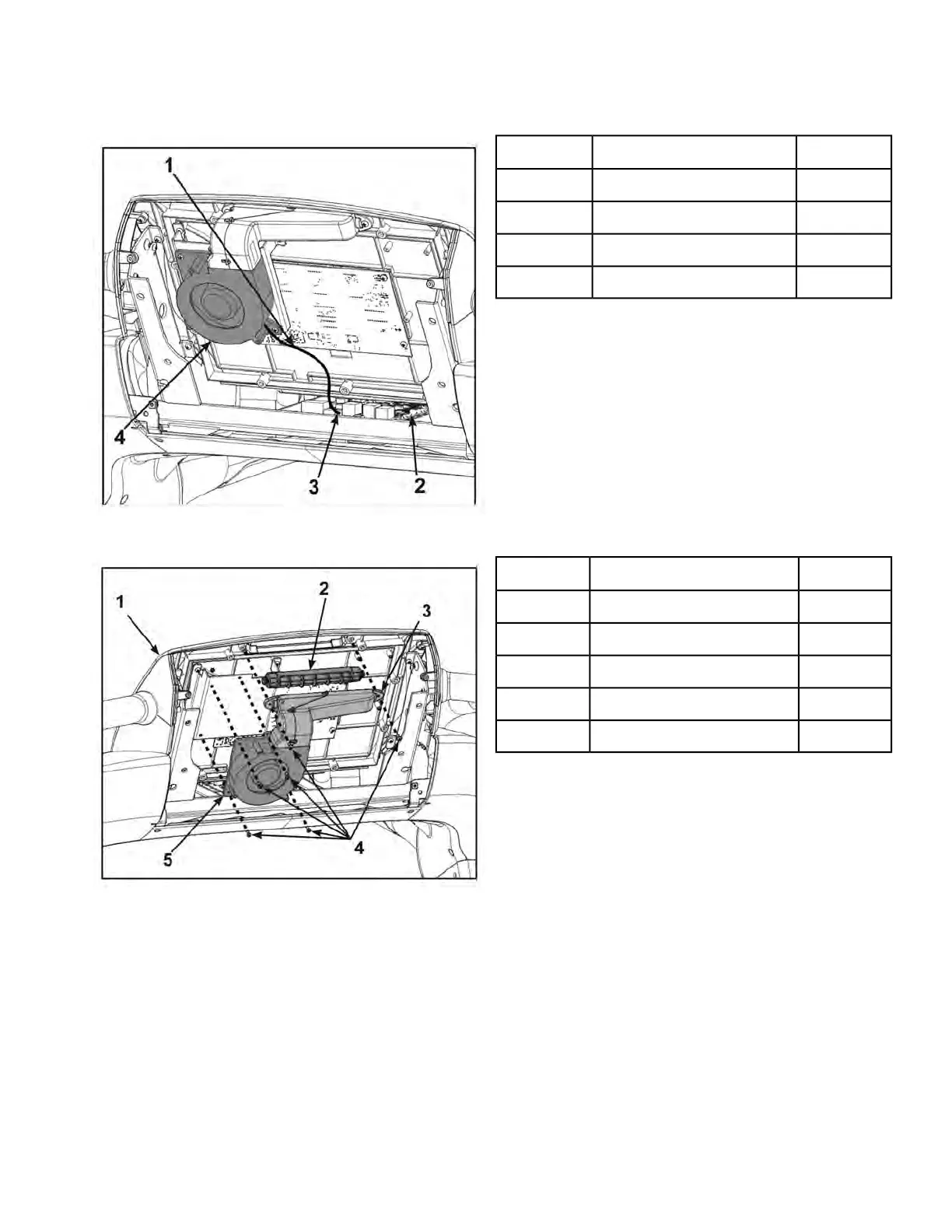

Remove fan
1. Unplug the fan cable by un-latching connector (J19) from the MCC board.
Qty.DescriptionItem
1Fan Cable1
1MCC Board2
1J193
1Fan4
2. Remove the six screws securing the fan and duct to the console assembly using a Phillips screwdriver.
Qty.DescriptionItem
1Console Assembly1
1Louver2
1Duct3
6Screw4
1Fan5
The louver is held in place by the duct.
Page 201 of 261
Cybex 770T/790T Treadmill Part Number
