CYBEX 770T - Remove the Six Screws Securing the Fan and Duct to the Console Assembly Using a Phillips Screwdriver

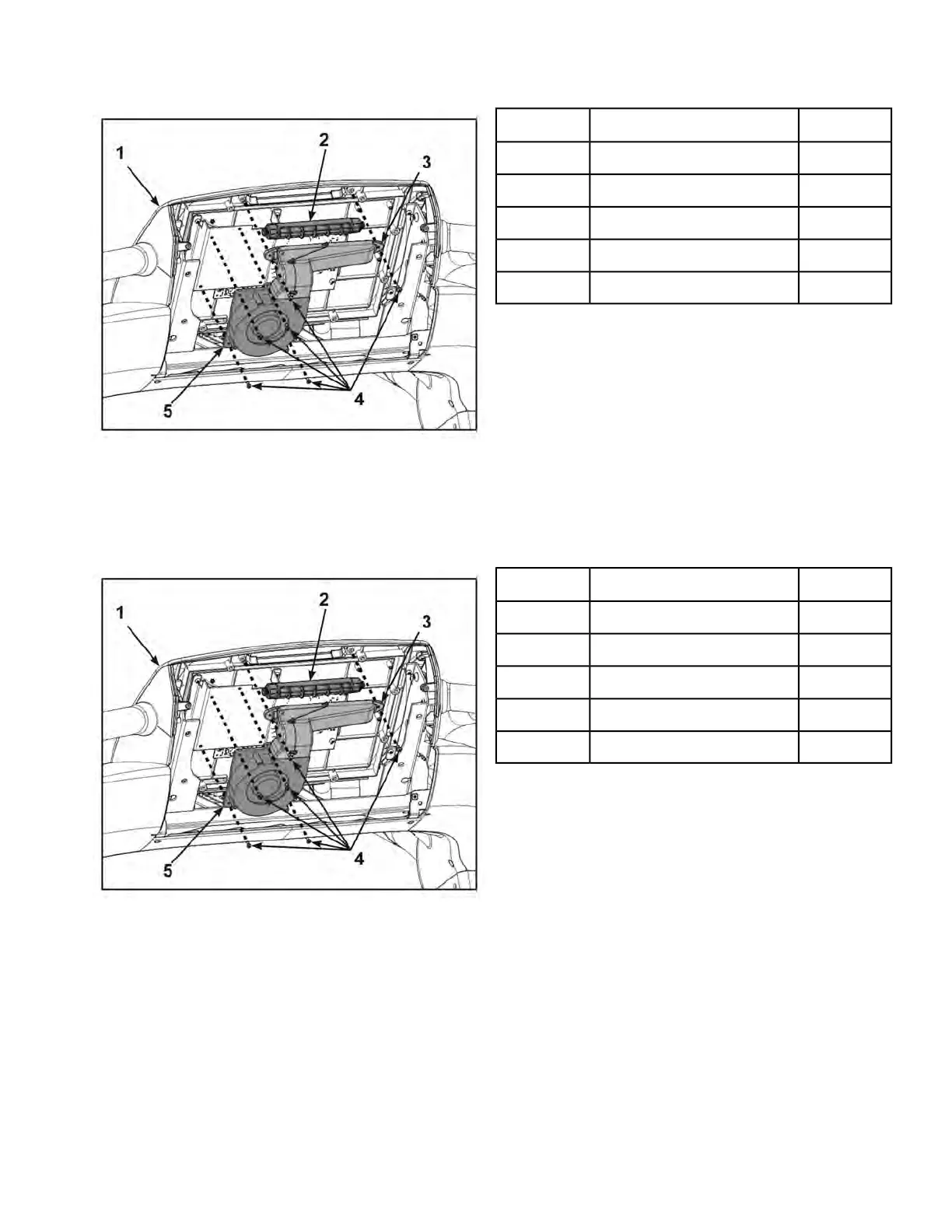

2. Remove the six screws securing the fan and duct to the console assembly using a Phillips screwdriver.
Qty.DescriptionItem
1Console Assembly1
1Louver2
1Duct3
6Screw4
1Fan5
The louver is held in place by the duct.
Install fan
1. Install six screws securing fan and duct to console assembly using a Phillips screwdriver.
The louver is held in place with the duct.
Qty.DescriptionItem
1Console Assembly1
1Louver2
1Duct3
6Screw4
1Fan5
