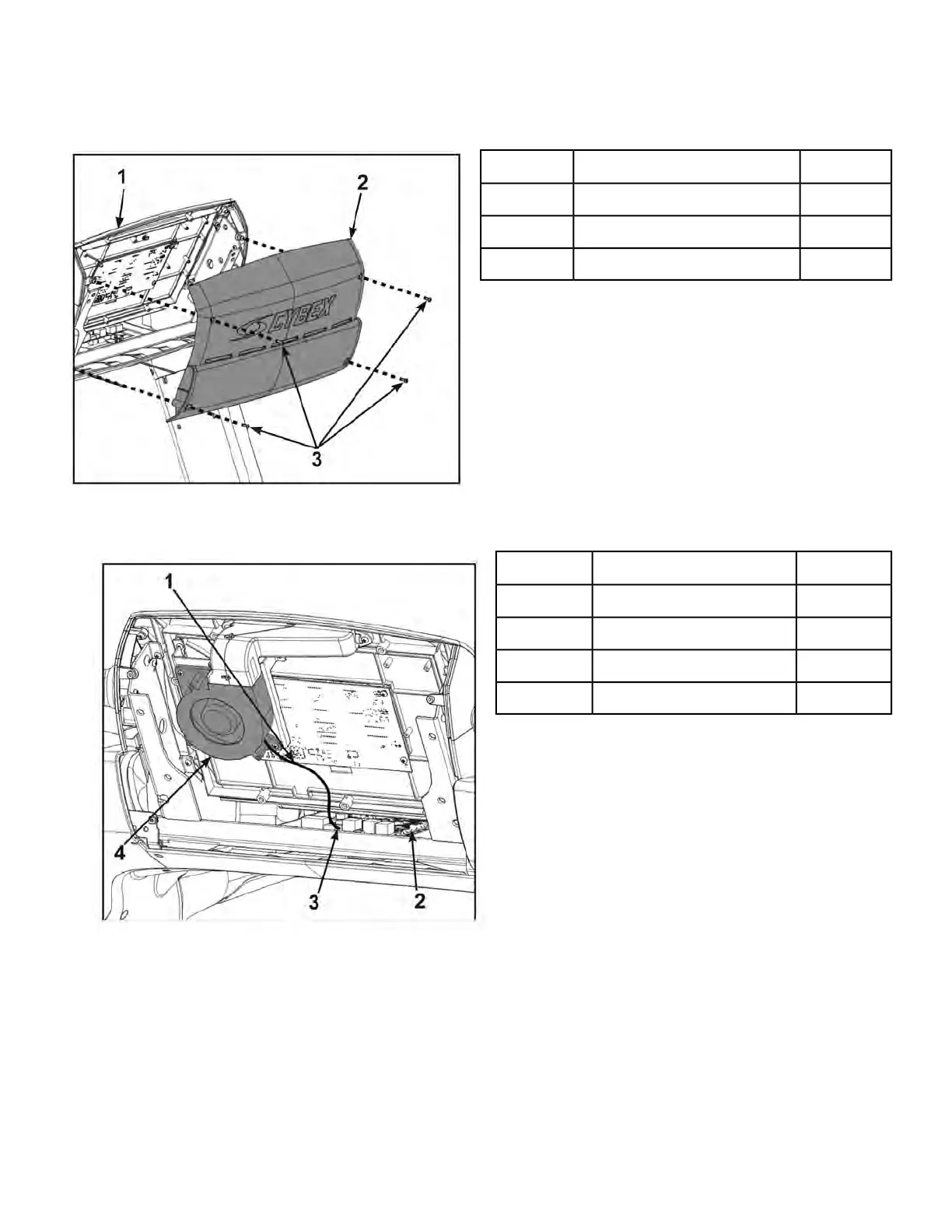

Remove back cover
Remove four screws securing back cover to console assembly using a Phillips screwdriver.
Qty.DescriptionItem
1Console Assembly1
1Back Cover2
4Screws3
Remove fan
1. Unplug the fan cable by un-latching connector (J19) from the MCC board.
Qty.DescriptionItem
1Fan Cable1
1MCC Board2
1J193
1Fan4
