CYBEX 770T Service Manual

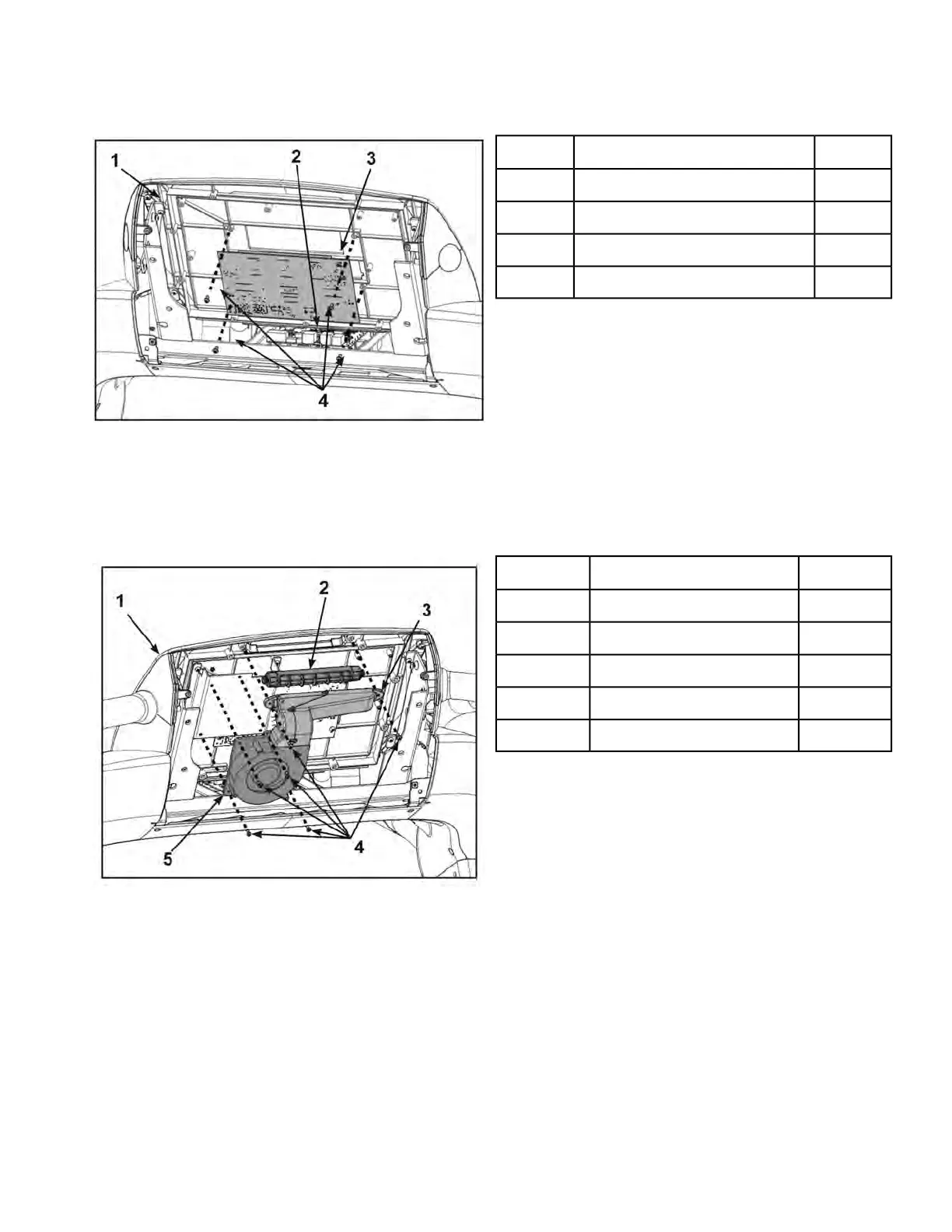

Install display board
1. Install the four screws securing the display board to the console assembly using a Phillips screwdriver.
Qty.DescriptionItem
1Console Assembly1
1Display Board Connector2
1Display Board3
4Display Board Screw4
2. Connect the display board cable to the MCC board connector (J16).
Install fan
1. Install six screws securing fan and duct to console assembly using a Phillips screwdriver.
The louver is held in place with the duct.
Qty.DescriptionItem
1Console Assembly1
1Louver2
1Duct3
6Screw4
1Fan5
Page 203 of 261
Cybex 770T/790T Treadmill Part Number

CYBEX 770T Specifications

General

Weight Capacity	400 lbs
Speed Range	0.5 - 12.4 mph
Incline Range	0 - 15%
Running Surface	22" x 60"
Heart Rate Monitoring	Yes
Display	15" Touch Screen
