EN / CZone® COI – Combination Output Interface
DEUTSCH CONNECTOR KIT 4.4
If you have purchased the COI module that includes the Deutsch connector kit (part # 80-911-0119-00), check all
components are in the bag before proceeding.
Part Number
Description
Quantity
DTP06-4S
DEUTSCH DTP 4 POS MALE PLUG
Accepts Size 12 Contacts
1
WP-4S
DEUTSCH WEDGELOCK FOR DTP06-4S
1
DT06-12SA
DEUTSCH DT 12 POS MALE PLUG
Accepts Size 16 Contacts
1
W12S
DEUTSCH LOCKING WEDGE FOR DT06-12S
1
DT06-08SA
DEUTSCH DT 8 POS MALE PLUG
Accepts Size 16 Contacts
1
W8S
DEUTSCH LOCKING WEDGE FOR DT06-8S
1
0462-203-12141
DEUTSCH SOCKET CONTACT SIZE 12
Suitable for 14-12AWG (2.0-4mm²) cable
4
0462-201-16141
DEUTSCH SOCKET CONTACT SIZE 16
Suitable for 20-16AWG (0.5-1.5mm²) cable
20
0462-209-16141
DEUTSCH SOCKET CONTACT SIZE 16
Suitable for 14AWG (2.0mm²) cable
4
1062-12-0222
STAMPED SOCKET NICKEL SIZE 12
Suitable for 10AWG (4-6mm²) cable
4
114017-ZZ
SEALING PLUG SIZE 12-16
12

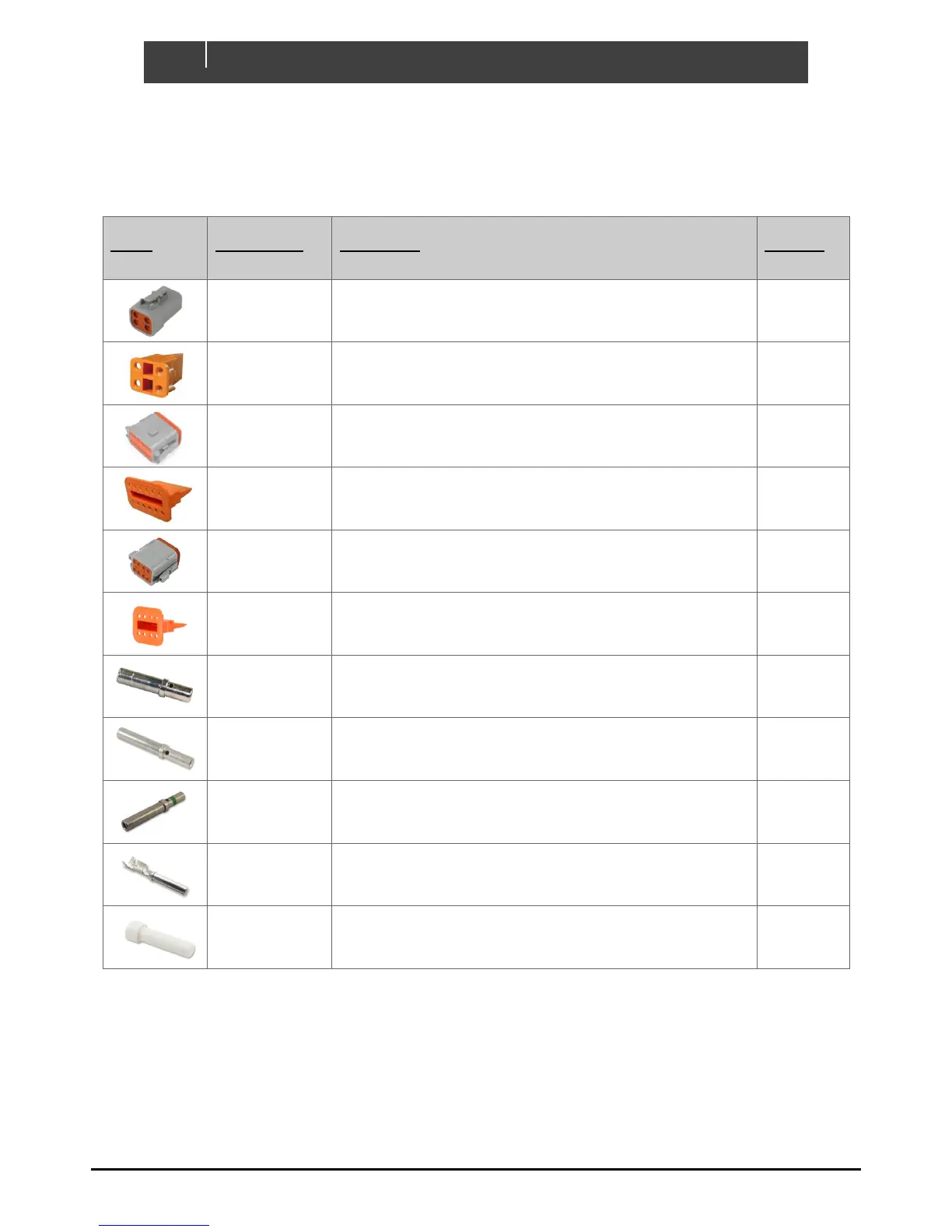

Figure 10. COI Deutsch Connector Kit Parts
