CZone COI - Mounting the COI

EN / CZone® COI – Combination Output Interface
16
MOUNTING 4.5

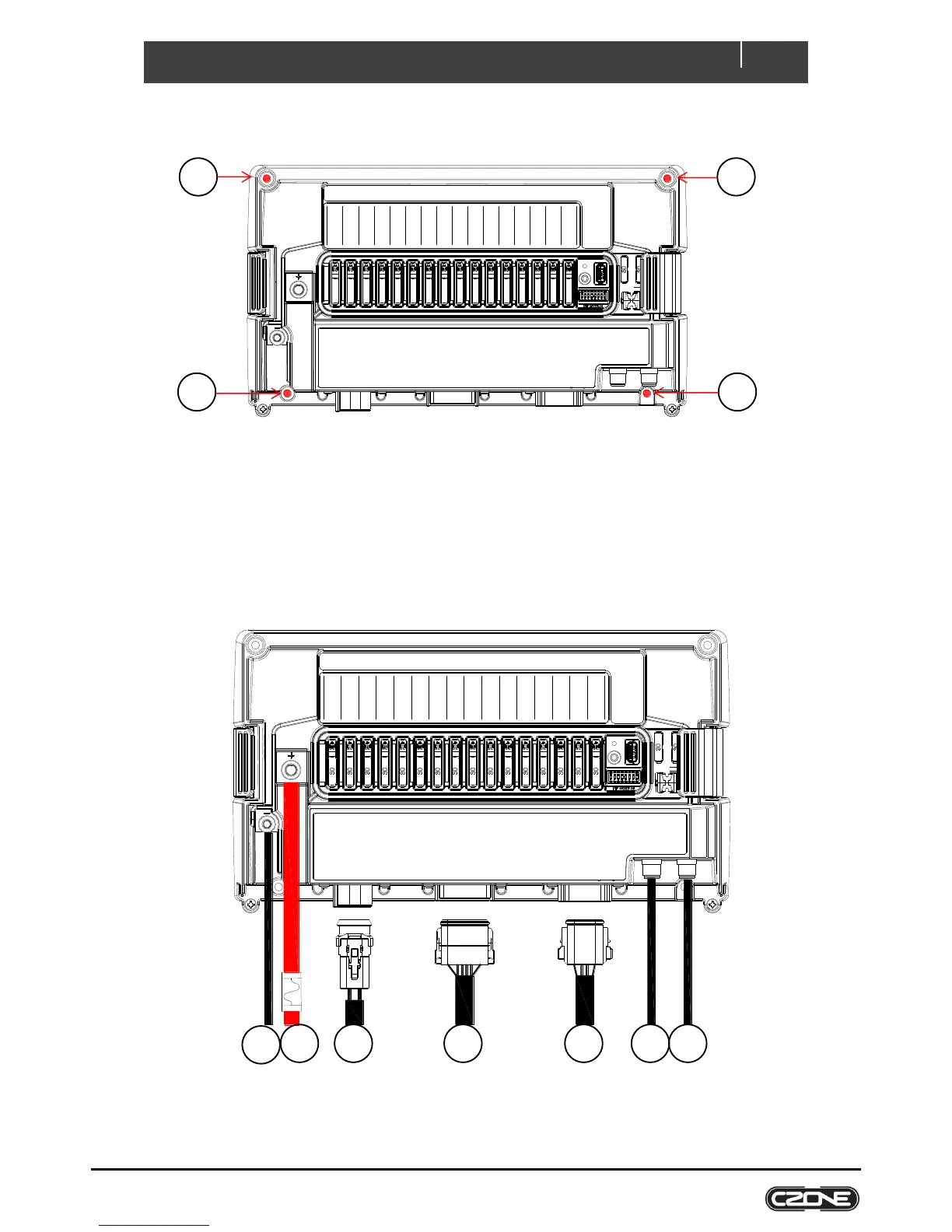

Figure 11. Mounting Screw Locations
1. Remove the COI top cover and locate the 4 mounting screw locators as shown in Figure 11
2. Place the COI on a solid, flat surface.
3. Screw the COI to the surface with 4 x 8G or 10G (4mm or 5mm) self-tapping screws or bolts.
CONNECTIONS 4.6
Figure 12. COI Connections
1
2
3
4
5
7
6
1
1
1
1
