5. Connect the Digital Switch Breakout (IN-D) (Optional)

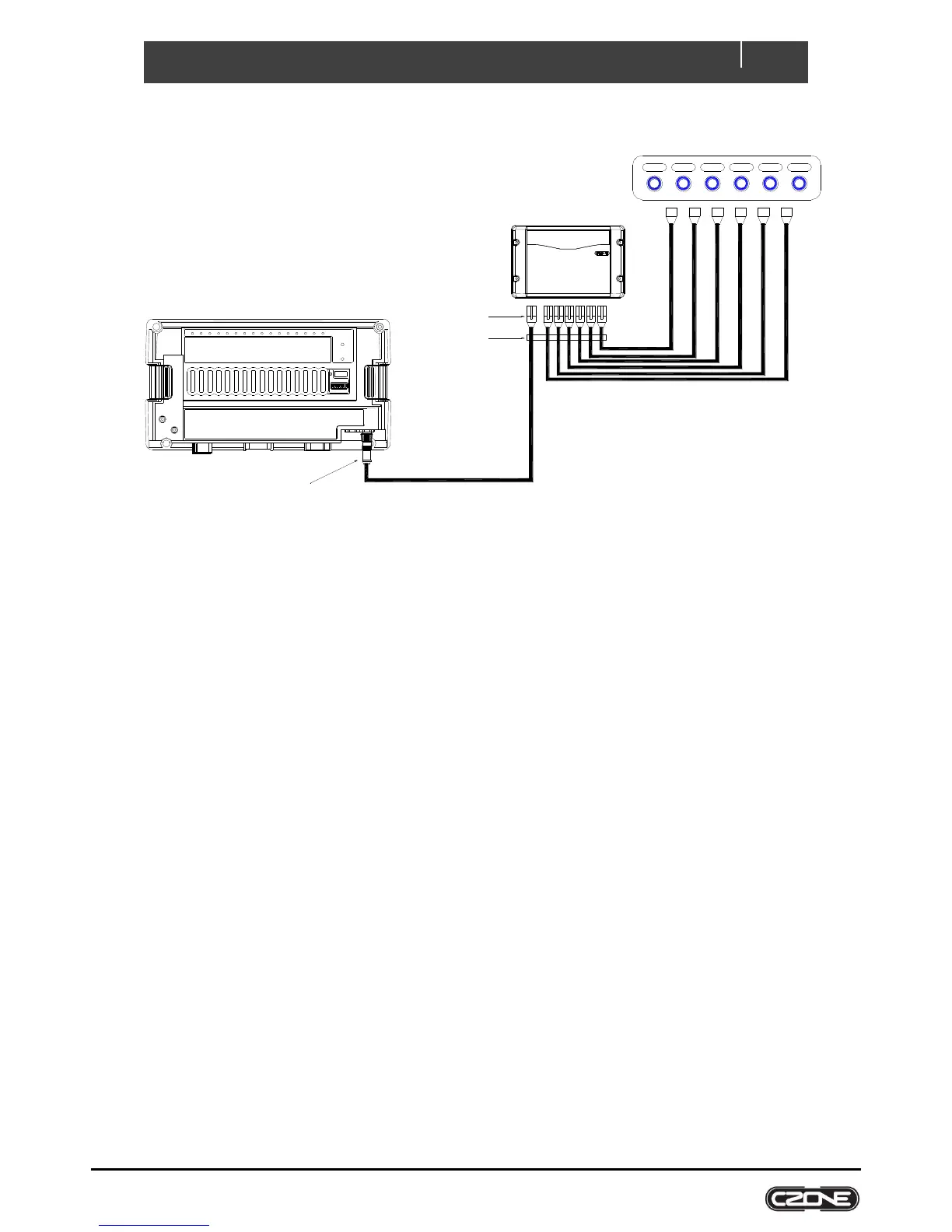

Figure 13. COI Digital Switch Breakout Connections
1. The digital switch input can be used to connect up to 6 CZone digital switches (Push Button or Rocker) to
the COI with the optional Digital Switch Breakout. Refer to Page 23 for part numbers. If no digital switches
are required, ensure the blanking cap is fitted to maintain the IPX5 rating.
2. Mount the switches in the desired location.
3. Mount the DSB interface as close to the switches as possible.
4. Run the supplied 2M lead (or optional 5M) from the DSB to the COI.
6. Connect DC Negative
1. Connect a 2.5mm² (12AWG) cable from the battery negative terminal or main negative bus to the COI’s
M6 negative stud.
7. Connect DC Positive
1. Connect an appropriately sized and fused cable from the battery positive terminal to the COI’s M8 positive
stud.
2. The positive cable must be of sufficient size to carry the maximum current of all loads connected to the
COI and have a fuse/circuit breaker rated to protect the cable, volt drop should be kept to a minimum.
3. Maximum recommended cable size is 70mm² (2/0). Cables larger than 70mm² (2/0) should be connected
to a positive stud first with a link to the COI.
4. It is possible to connect two positive cables “back to back” on the positive stud for linking the supply on 2
or more COI’s.
Green - Power
Red - Traffic
NETWORK
STATUS
Green-Available
Red - Fault
DC POWER
USB
DIPSWITCH
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
COI Digital Switch Breakout
(80-911-0134-00)
RJ45
COI
(80-911-0119-00)
6 Double Throw Switch Channels
Uses existing SCI cables (Rocker or Push Button)
2M COI to Digital Breakout Extension
(Included with Digital Breakout)
M12 Waterproof
Connector
2M
0.5M to 8M
Silicone
Gland
