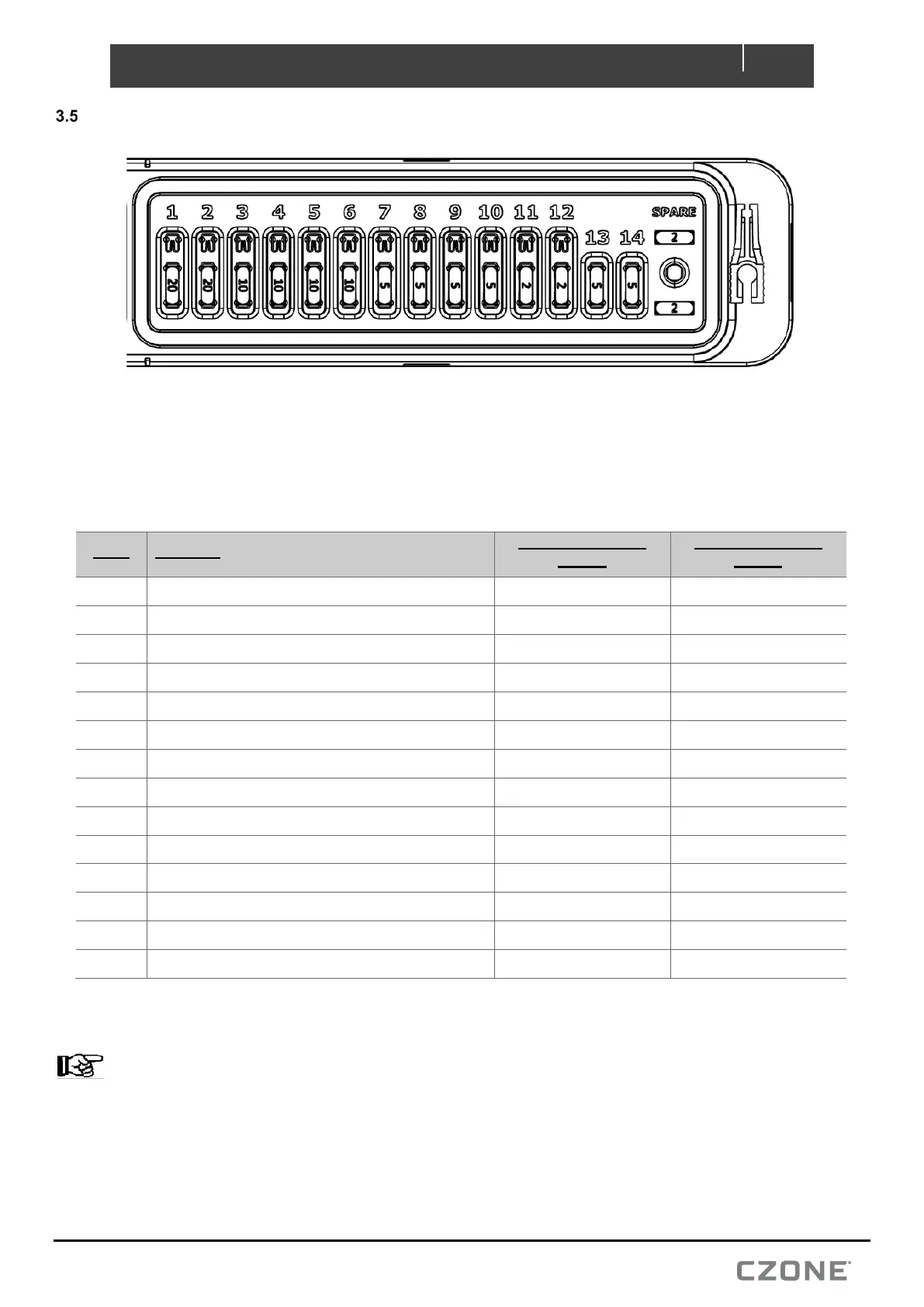

CZone DDS - Fuse Details; Figure 3. Fuse Details

EN / CZone® DDS User & Installation Manual
10
FUSE DETAILS
Fuses are not included with the DDS Module. The DDS module supports EATON Bussmann ATM or Littelfuse
®
MINI
®
blade fuses.
NOTE – Care must be taken with 24V systems, 20A and 10A channels are limited to 5A each.
Fuse Function
12V Max Channel
Rating
24V Max Channel
Rating
1
20A Relay Output 1
20A
5A
2
20A Relay Output 2
20A
5A
3
10A Relay Output 1
10A
5A
4
10A Relay Output 2
10A
5A
5
10A Relay Output 3
10A
5A
6
10A Relay Output 4
10A
5A
7
5A Relay Output 1
5A
5A
8
5A Relay Output 2
5A
5A
9
5A Relay Output 3
5A
5A
10
5A Relay Output 4
5A
5A
11
2A Relay Output 1
2A
2A
12
2A Relay Output 2
2A
2A
13
5A 2x MOSFET Output
10A
10A
14
2A 3X MOSFET Output and Power Output
10A
10A
Figure 3. Fuse Details
