CZone DDS - LED Indicator; Figure 2. LED Indicator

9
EN / CZone® DDS User & Installation Manual
LED INDICATOR
1. LED Indicator
Colour
Description
Off
No Power
Solid Green
Normal / OK
Solid Red
Low Voltage
1 Red Flash
Module Not Configured
2 Red Flash
Configuration Conflict
3 Red Flash
DIP Switch Conflict
5 Red Flash
No Modules Detected
7 Red Flash
Over Current / Fuse Blown on Any Configured Output Channel
9 Red Flash
Missing Commander on Any Configured Output Channel

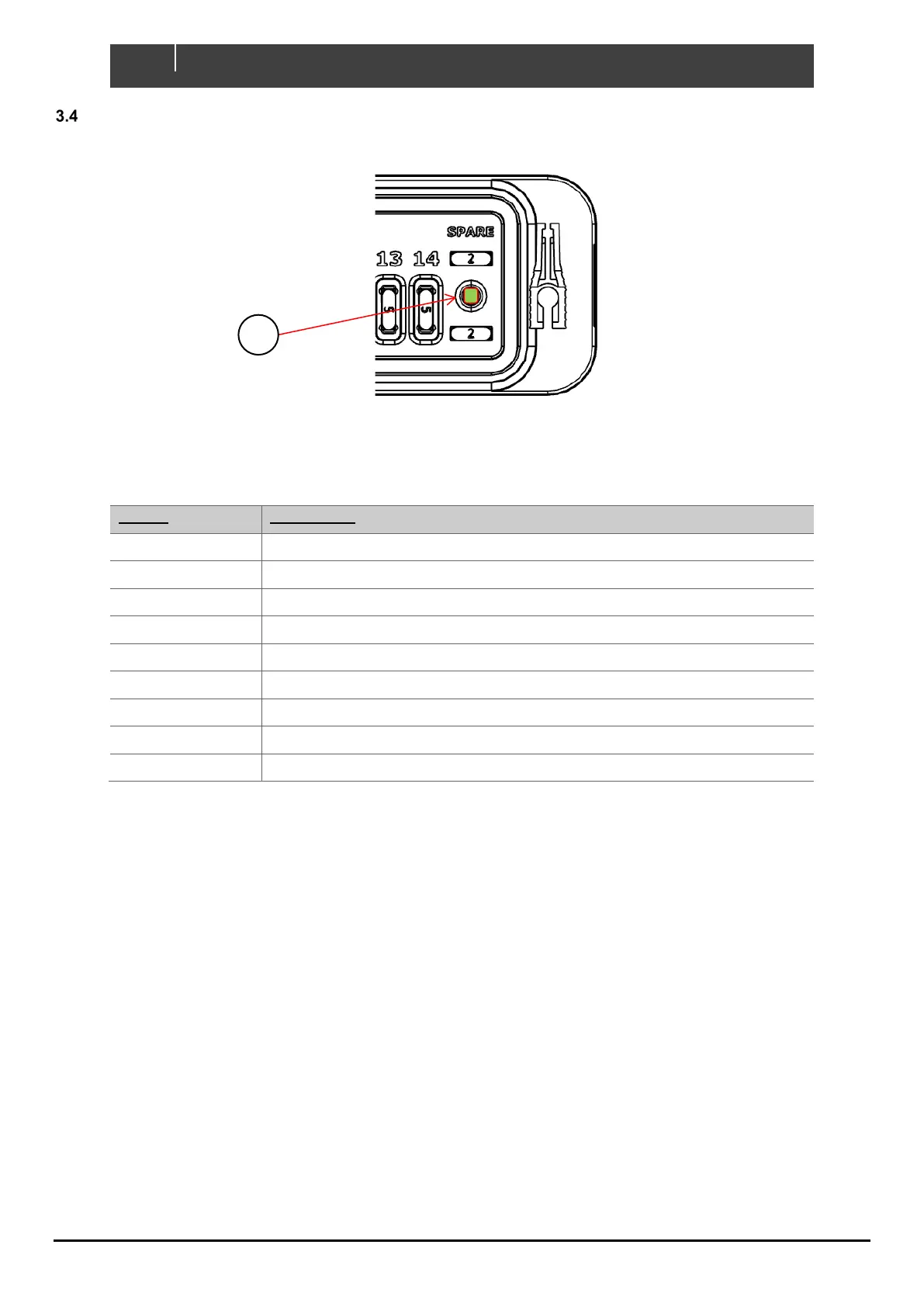

Figure 2. LED Indicator
