EN / CZone® DDS User & Installation Manual
4 INSTALLATION
THINGS YOU NEED
• CZone DDS Interface
• CZone DDS Connector Kit (80-911-0261-00)
• 4 x 10G (5mm) panhead self-tapping screws or bolts for mounting DDS to surface (not supplied)
• HDT-48-00 Deutsch crimp tool for crimping 0.5mm-4mm (20-12AWG) wire
• NMEA2000 drop cable and T-connector
• Screwdriver and drill bits
• Electrical Tools
• Silicone grease (lubricating connector seals)

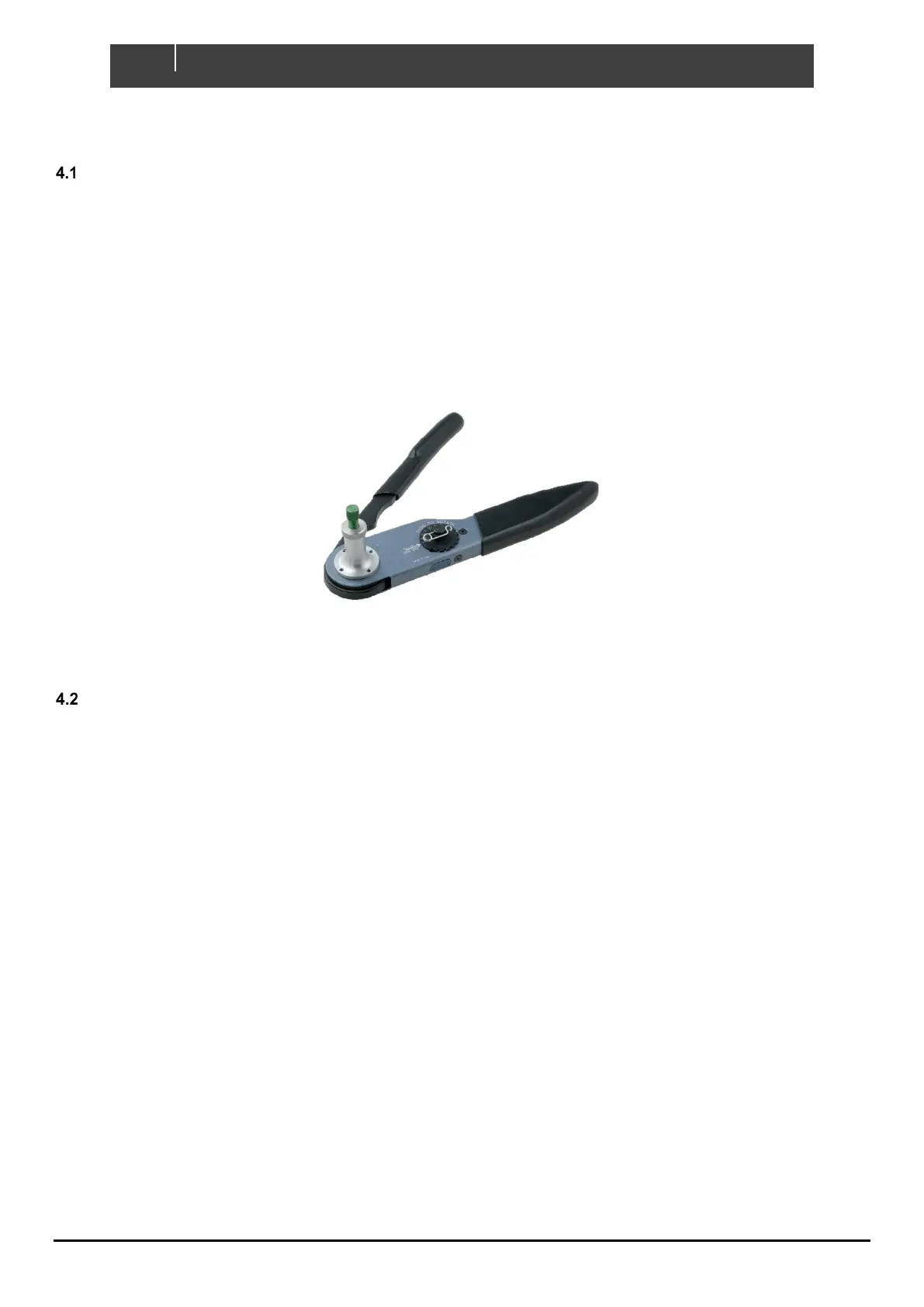

Figure 6. Deutsch HDT-48-00 Crimp Tool
ENVIRONMENT
Obey the following stipulations during installation:
• Ensure the DDS is located in an easily accessible location for quick access to module.
• Ensure mounting location is well ventilated and free from moisture. For small enclosures, fan forced ventilation
should be considered.
• Ensure LED indicator is easily visible for troubleshooting.
• Ensure circuit labels are fitted and all channels labelled correctly.
• The DDS must be mounted at least 50mm away from high current carrying conductors such as anchor winches,
bow thruster cables, speakers, transformers, and other high inductive loads.
• Ensure the bulkhead that the unit will be attached to is sufficiently strong to take the weight of the unit and
attached cables.
• Ensure there is at least 10mm clearance around the sides and top of the DDS.
• All connectors must be installed to achieve IP65 rating with unused channels blocked with blocking pins
(Amphenol Part # 114017).
