D-Link DAP-1610 User Manual

DAP-1610 AC1200 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
Telnet
On the System / Telnet page, you can enable or disable access to the device settings via TELNET
from your LAN. Access via TELNET is disabled by default. It is automatically enabled after
changing the default administrator password.

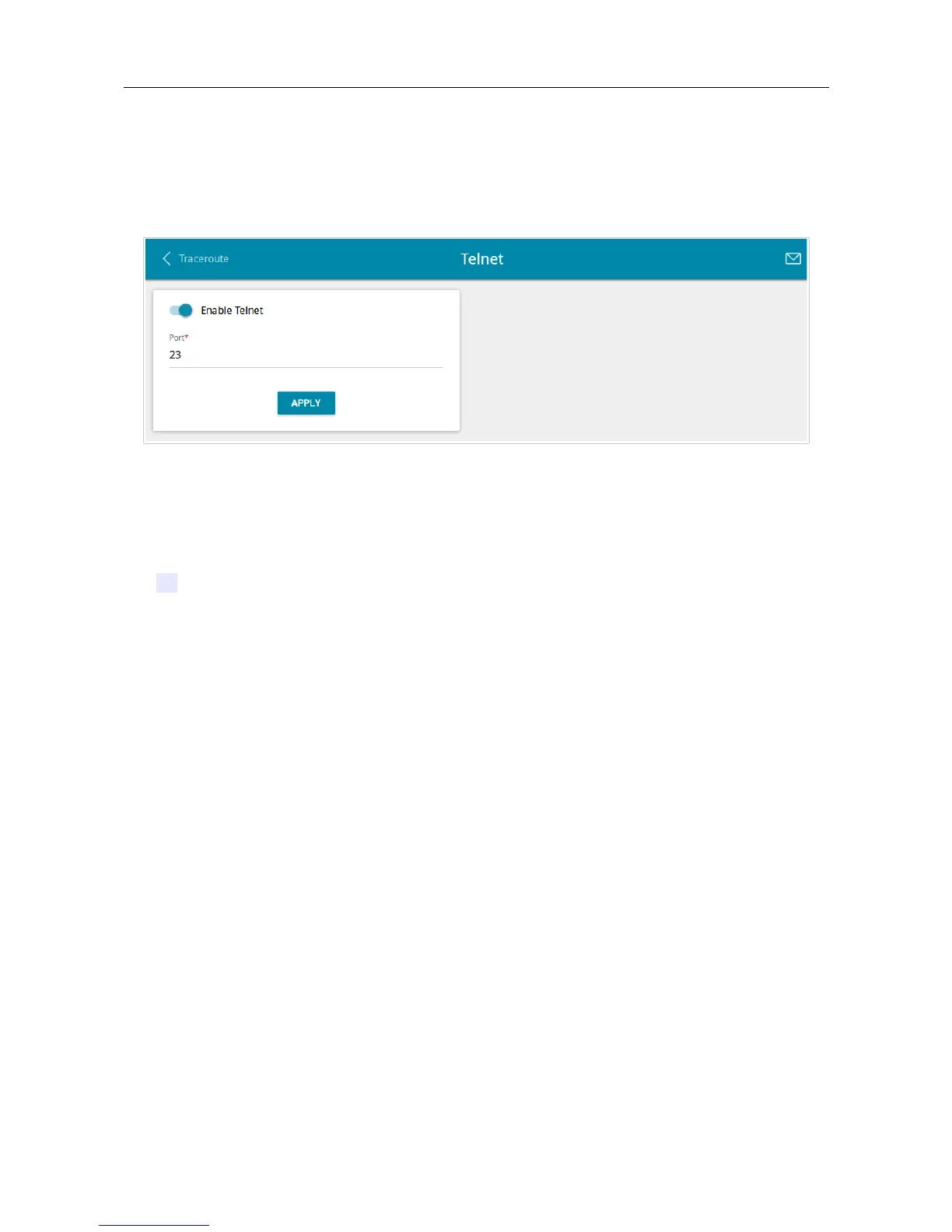

Figure 66. The System / Telnet page.
To disable access via TELNET, move the Enable Telnet switch to the left and click the APPLY
button.
To enable access via TELNET again, move the Enable Telnet switch to the right. In the Port
field, enter the number of the extender's port through which access will be allowed (by default, the
port 23 is specified). Then click the APPLY button.
Page 85 of 91

D-Link DAP-1610 Specifications

General

Type	Network transmitter & receiver
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPA, WPA2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab
Certification	FCC, IC, CE2. UL
Product color	White
LED indicators	Signal strength, Status, WPS
Ethernet LAN (RJ-45) ports	1
Antenna type	External
Antennas quantity	2
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	120 g
