D-Link DAP-1610 User Manual

DAP-1610 AC1200 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
Firewall
In this menu you can configure the MAC filter of the extender.
MAC Filter
On the Firewall / MAC Filter page, you can configure MAC-address-based filtering for devices
connected to the extender.

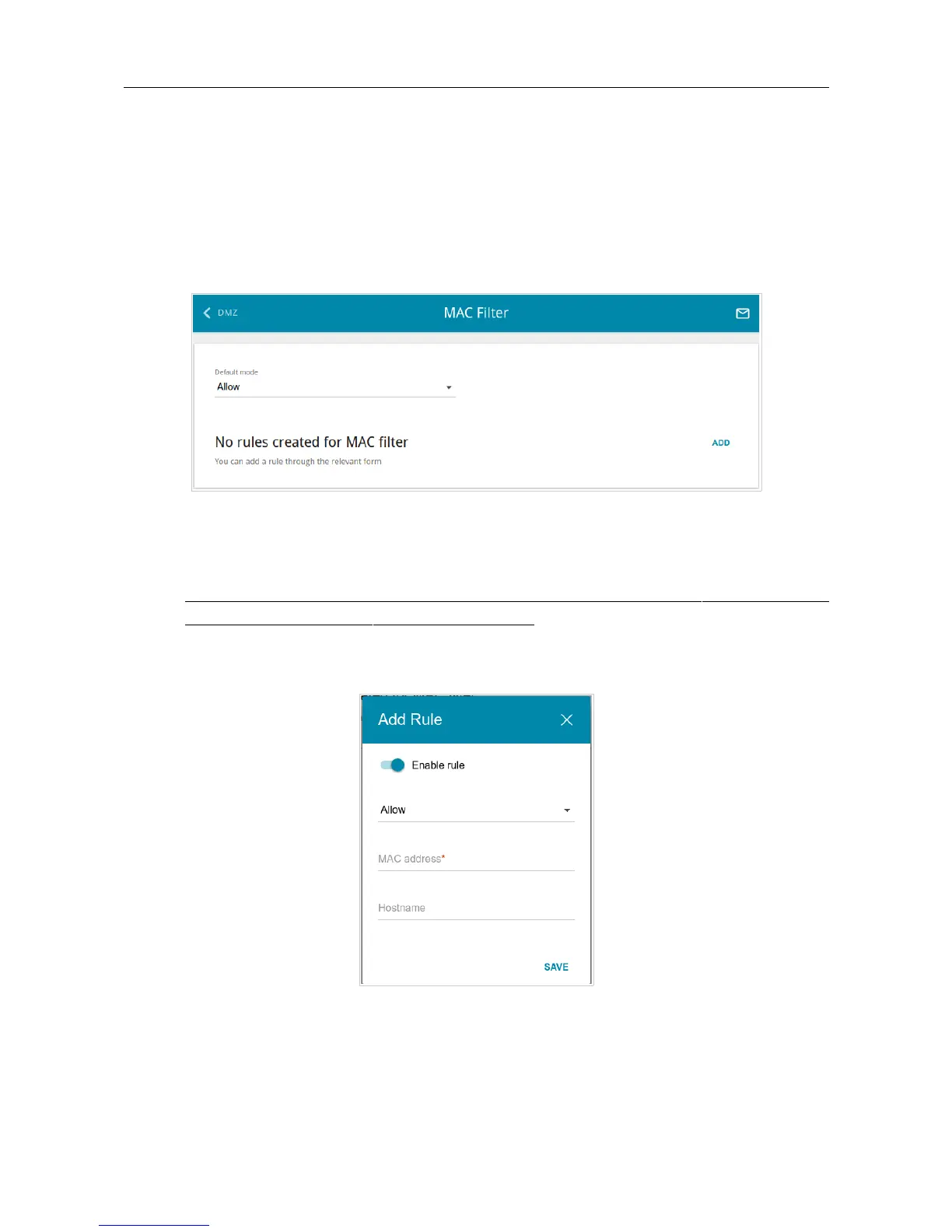

Figure 56. The Firewall / MAC Filter page.
To allow or block access to the extender or the upper router's network, select the needed action (the
Allow or Deny value correspondingly) from the Default mode drop-down list.
!
You can use the Deny mode only if an active rule which allows access to the extender or
the upper device's network is created on the page.
To create a rule (specify a MAC address of a device for which the specified filtering mode will be
applied), click the ADD button.
Figure 57. The window for adding a rule for the MAC filter.
Page 71 of 91

D-Link DAP-1610 Specifications

General

Type	Network transmitter & receiver
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPA, WPA2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab
Certification	FCC, IC, CE2. UL
Product color	White
LED indicators	Signal strength, Status, WPS
Ethernet LAN (RJ-45) ports	1
Antenna type	External
Antennas quantity	2
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	120 g
