D-Link DAP-1610 User Manual

DAP-1610 AC1200 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
Ports Settings
On the Advanced / Ports Settings page, you can configure or disable autonegotiation of speed
and duplex mode or manually configure speed and duplex mode for the Ethernet port of the
extender.
Also you can enable or disable data flow control in the autonegotiation mode.

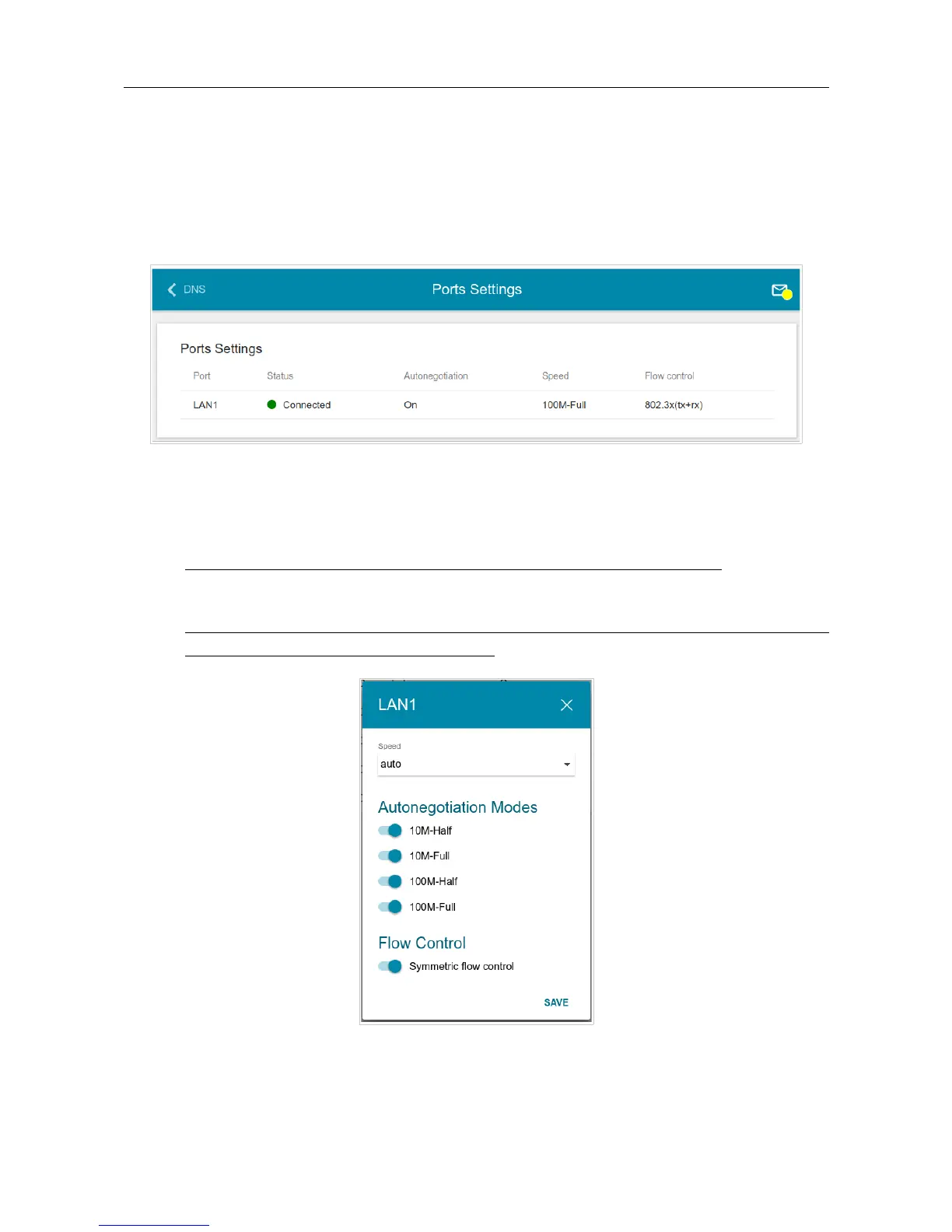

Figure 54. The Advanced / Ports Settings page.
In order to configure autonegotiation or configure speed and duplex mode manually for the Ethernet
port, select it in the table.
!
Autonegotiation should be enabled for both devices connected to each other.
!
When autonegotiation is disabled, speed and duplex mode settings for both devices
connected to each other should be the same.
Figure 55. The window for changing the settings of the extender's port.
Page 69 of 91

D-Link DAP-1610 Specifications

General

Type	Network transmitter & receiver
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPA, WPA2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab
Certification	FCC, IC, CE2. UL
Product color	White
LED indicators	Signal strength, Status, WPS
Ethernet LAN (RJ-45) ports	1
Antenna type	External
Antennas quantity	2
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	120 g
