D-Link DAP-3711 User Manual

26D-Link DAP-3711 User Manual
Section 3 - Conguration

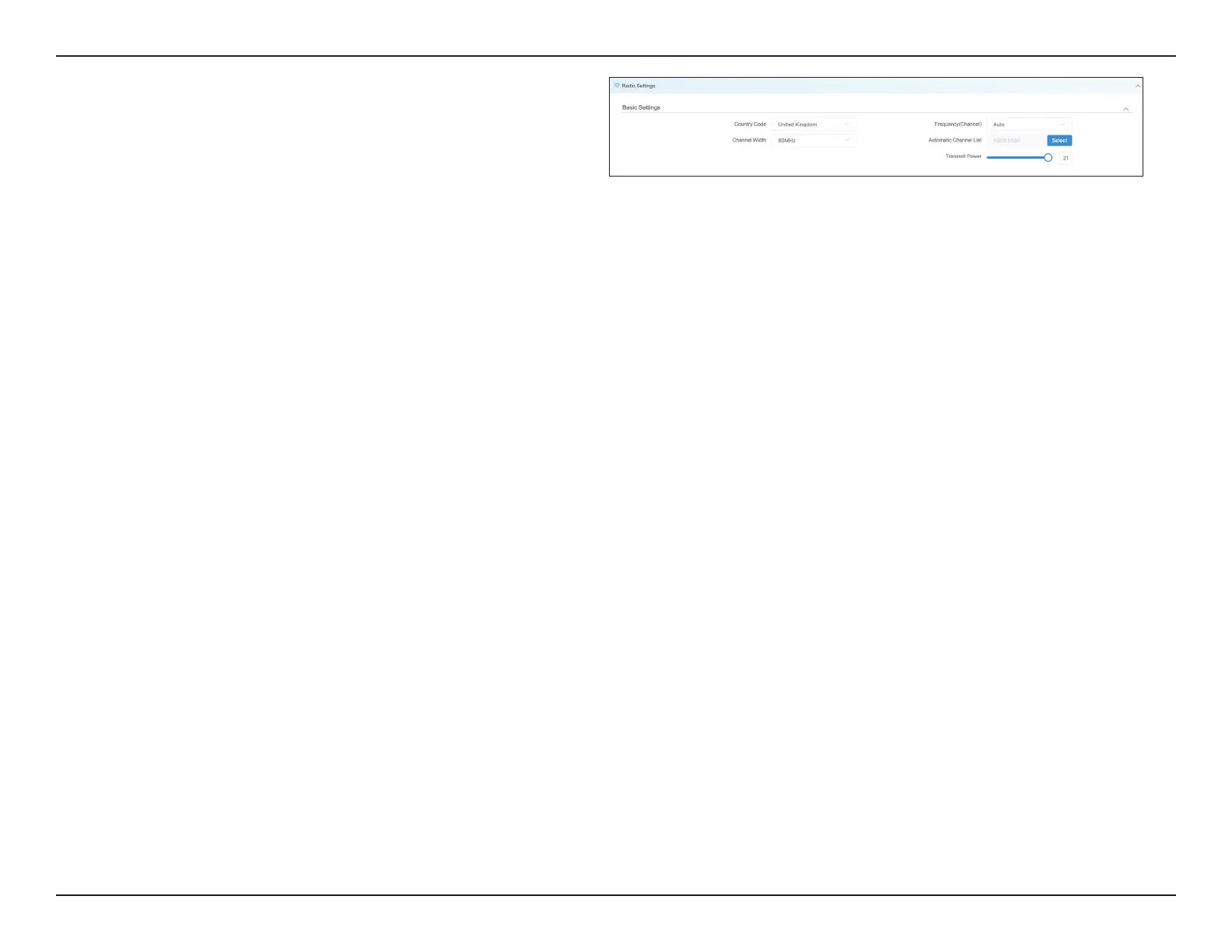

Basic Settings
Use this to select the country where the DAP-3711
is installed.
Use this to change the AP’s channel width. The
default is 80 MHz. (in Access Point model or Access
Point (WDS) mode)
Use this to specify the Wi-Fi channel to use, or
select Auto to determine this automatically.
Default is Auto.
If the auto channel is selected in Frequency,
user can decide channels which DAP-3711 can
run. After clicking the Select, user can select the
channels which DAP-3711 can run in their country.
The device’s output power. When the output
power is increased, the signal distance and signal
strength will be improved.
Country Code:
Channel Width:
Frequency:
Automatic
Channel List:
Transmit
Power:

D-Link DAP-3711 Specifications

General

5 GHz	Yes
2.4 GHz	-
Bandwidth	0.08 GHz
Frequency band	5.745 - 5.825 GHz
Channels quantity	2 channels
Fit AP mode features	Wireless distribution system (WDS)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Maximum outdoor range	5000 m
Ethernet LAN data rates	100, 1000 Mbit/s
Transmitting power (CE)	27 dBm
Maximum data transfer rate	867 Mbit/s
Security algorithms	128-bit AES
Service Set Identifier (SSID) features	SSID broadcast
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
AC input voltage	24 V
Power consumption (typical)	15 W
Placement	Pole
Certification	CE, FCC
Product color	White
LED indicators	LAN, Power, Signal strength, WLAN
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP66
Antenna type	Internal
Antenna gain level (max)	15 dBi
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	45 mm
Width	288 mm
Height	88 mm
Weight	600 g
