D-Link DAP-X3060 User Manual

11D-Link DAP-X3060 User Manual
Section 3 - Conguration

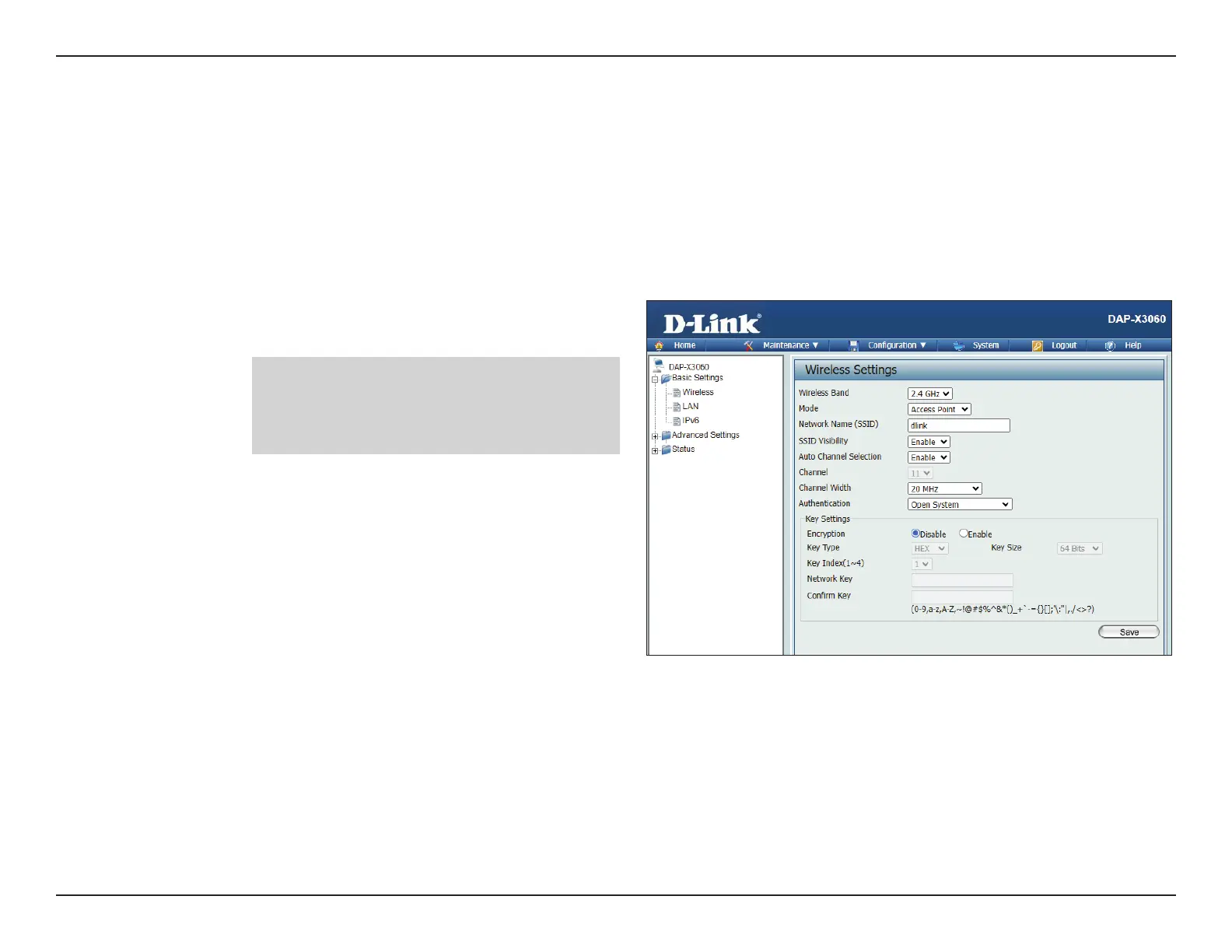

Wireless
On the wireless settings page, you can set up the basic wireless conguration for the access point. The user can choose from 4 dierent wireless
modes:
Access Point - Used to create a wireless LAN
WDS with AP - Used to connect multiple wireless networks while still functioning as a wireless access point
WDS - Used to connect multiple wireless networks
Wireless Band:
Mode:
Network Name (SSID):
SSID Visibility:
Auto Channel Selection:
Select either 2.4 GHz or 5 GHz from the drop-down
menu.
Note: 2.4GHz and 5GHz bands should be congured
individually with the following settings, each
of which can have a different SSID, channel,
authentication, etc.
Select Access Point from the drop-down menu.
Service Set Identier (SSID) is the name designated
for a specic wireless local area network (WLAN).
The SSID’s factory default setting is dlink. The SSID
can be easily changed to connect to an existing
wireless network or to establish a new wireless
network. The SSID can be up to 32 characters and
is case-sensitive.
Select Enable to broadcast the SSID across the
network, thus making it visible to all network users.
Select Disable to hide the SSID from the network.
This feature when enabled automatically selects
the channel that provides the best wireless
performance. The channel selection process only
occurs when the AP is booting up. To manually
select a channel, set this option to Disable and
select a channel from the drop-down menu.
Access Point Mode
Note: 2.4 GHz and 5 GHz bands should be
congured individually with the following settings,
each of which can have a dierent SSID, channel,
authentication, etc.
