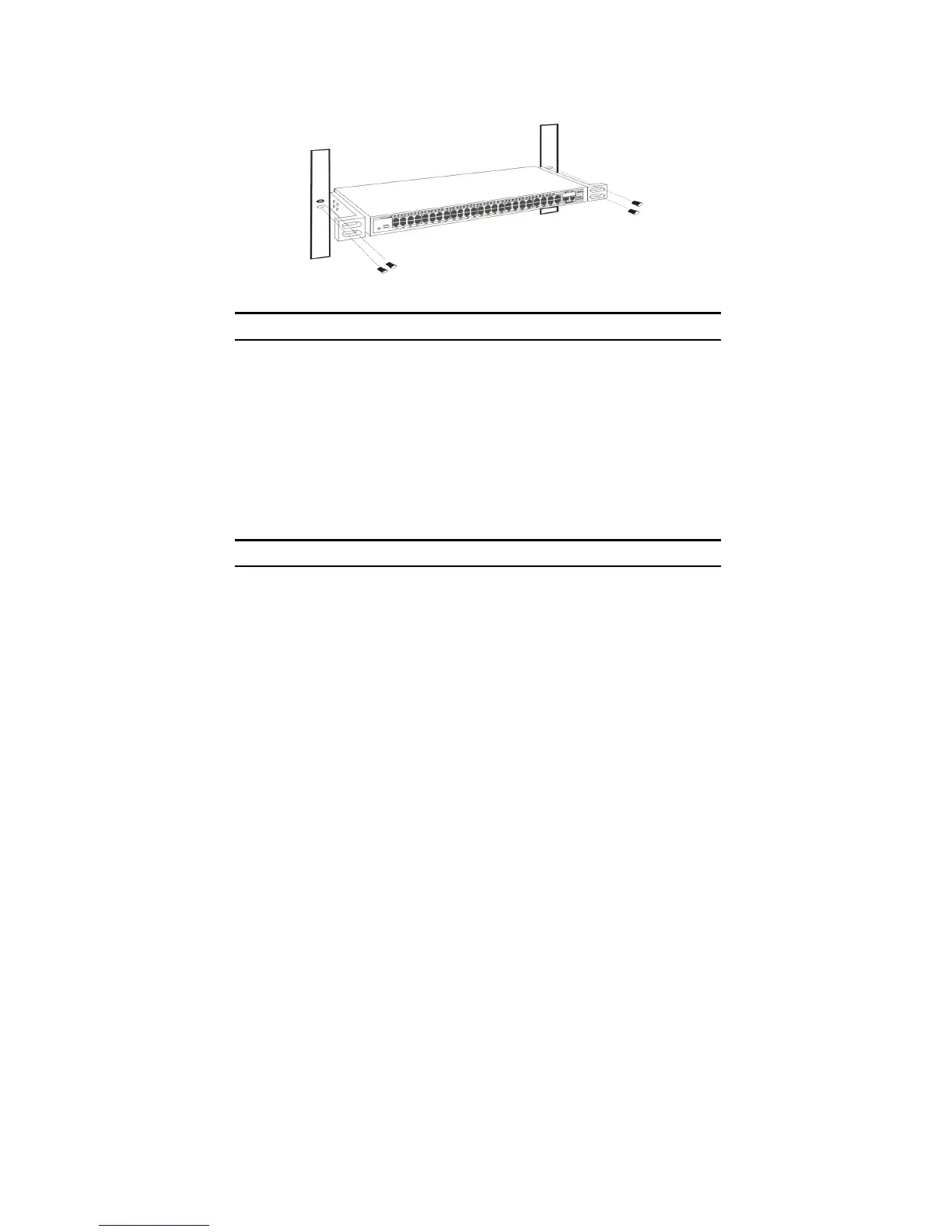

Figure 3. Mount the Switch in the rack
Connecting Network Cable
The Switch supports 1000Mbps Gigabit Ethernet that runs in
Auto-negotiation mode and 10Mbps Ethernet or 100Mbps Fast Ethernet that
runs both in half- and full-duplex mode and 1000Mbps Gigabit Ethernet runs
in full-duplex mode using four pair of Category 5 Cable.
These RJ-45 ports are Auto-MDI type port. The Switch can auto transform to
MDI-II or MDI-X type, so you can just make an easy connection that without
worrying if you are using a standard or crossover RJ45 cable.
There are 4 additional SFP/mini-GBIC slots for optional SFP/mini-GBIC
modules.
AC Power
The Switch uses the AC power supply 100-240V AC, 50-60 Hz. The power
switch is located at the rear of the unit adjacent to the AC power connector
and the system fan. The Switch’s power supply will adjust to the local power
source automatically and may be turned on without having any or all LAN
segment cables connected.
