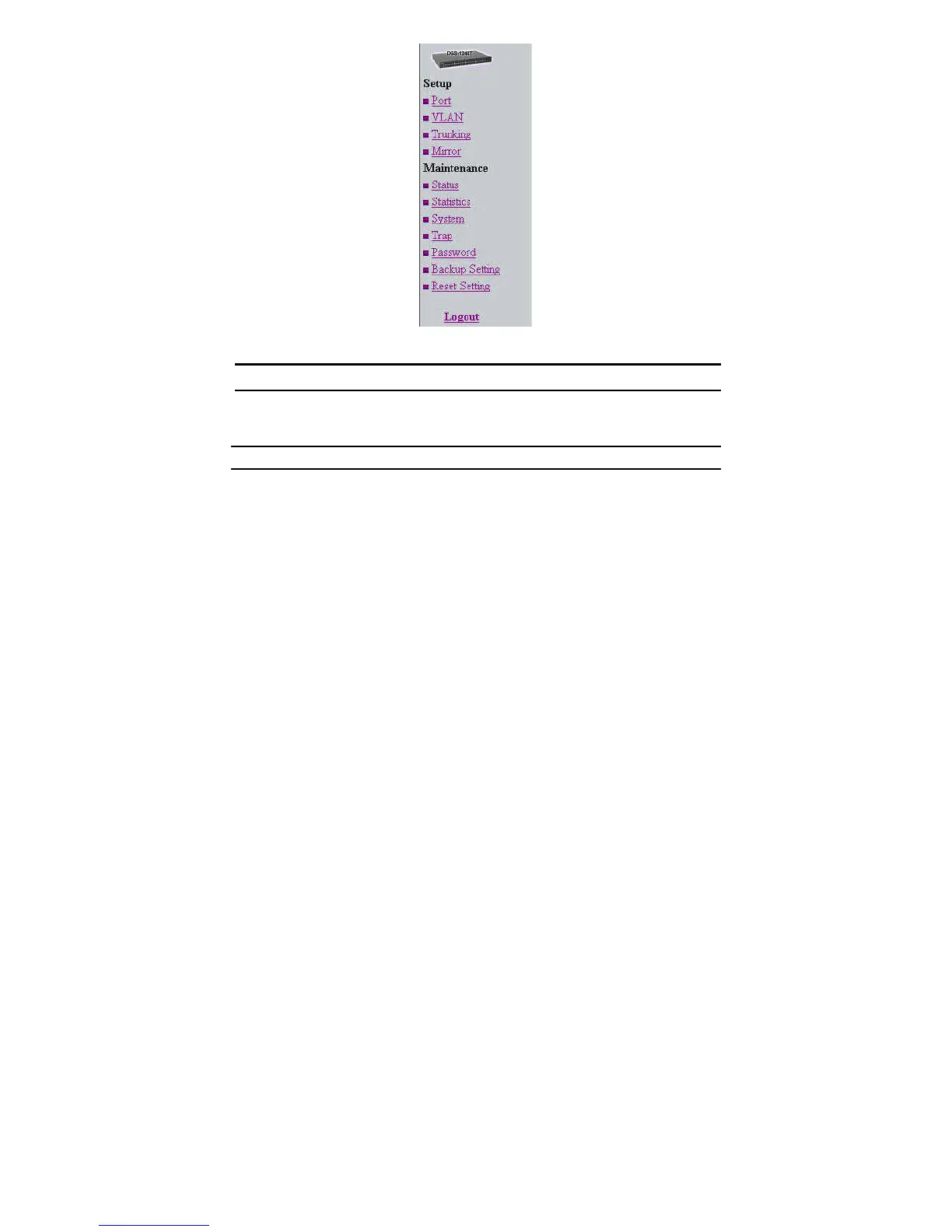

Figure 16. Setup menu
Configuring Setup Setting
There are four items, including Port Settings, VLAN Settings, Trunk Settings,
and Mirror Settings in Setup menu.
Port Settings
In the Port Settings menu (Figure 17), this page will display each port’s status.
Press the ID parameter to set each port’s Speed, Flow Control, QoS priority,
and Link Status. When you need to renew the posted information, press the
“Refresh” button.
The Link Status in the screen will display the connection speed and duplex
mode; otherwise this dialog box will display down when the port is
disconnected.
