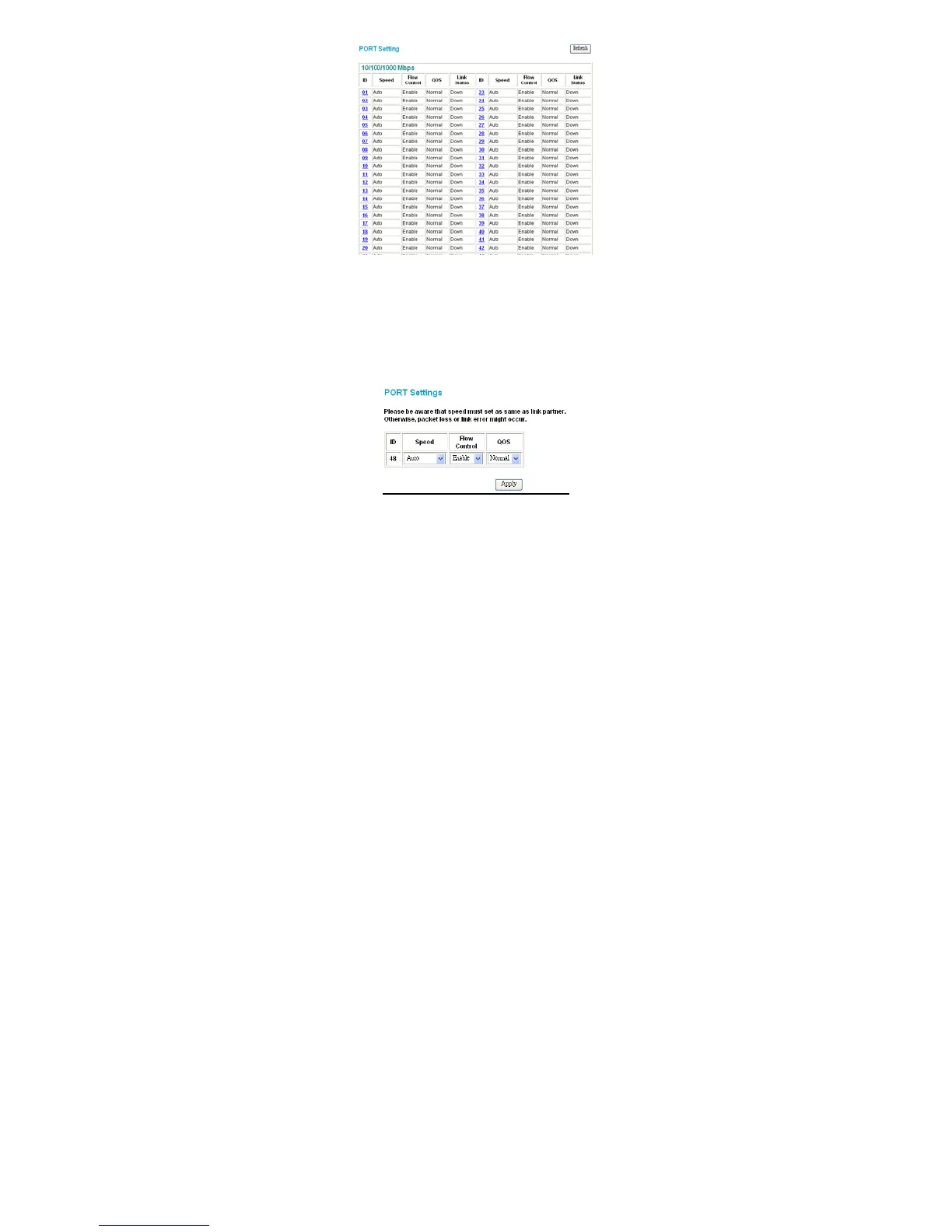

Figure 17. Port Setting
Note 1: Be sure to reset the Gigabit port when transferring the media type (Fiber to Copper
or Copper to Fiber).
Note 2: The priority of Gigabit Fiber port is higher than Copper.
To change the port setting, click on the ID parameter to enter the selected port
to configure its Speed/Disable, Flow control, and QoS setting.
Figure 18
Speed/Disable:
This setting has six modes—100M Full, 100M Half, 10M Full, 10M Half,
Auto and Disable—for speed or port disable selections.
22
