configured through an Ethernet connection, make sure the manager PC is set
on same the IP network. For example, when the default network address of
the default IP address of the Web Smart Switch is 192.168.0.1, then the
manager PC should be set at 192.168.0.x (where x is a number between 2 and
254), and the default subnet mask is 255.255.255.0.
Open Internet Explorer 5.0 or above Web browser.
Enter the IP address http://192.168.0.1 (the factory-default IP address setting)
into the address location.

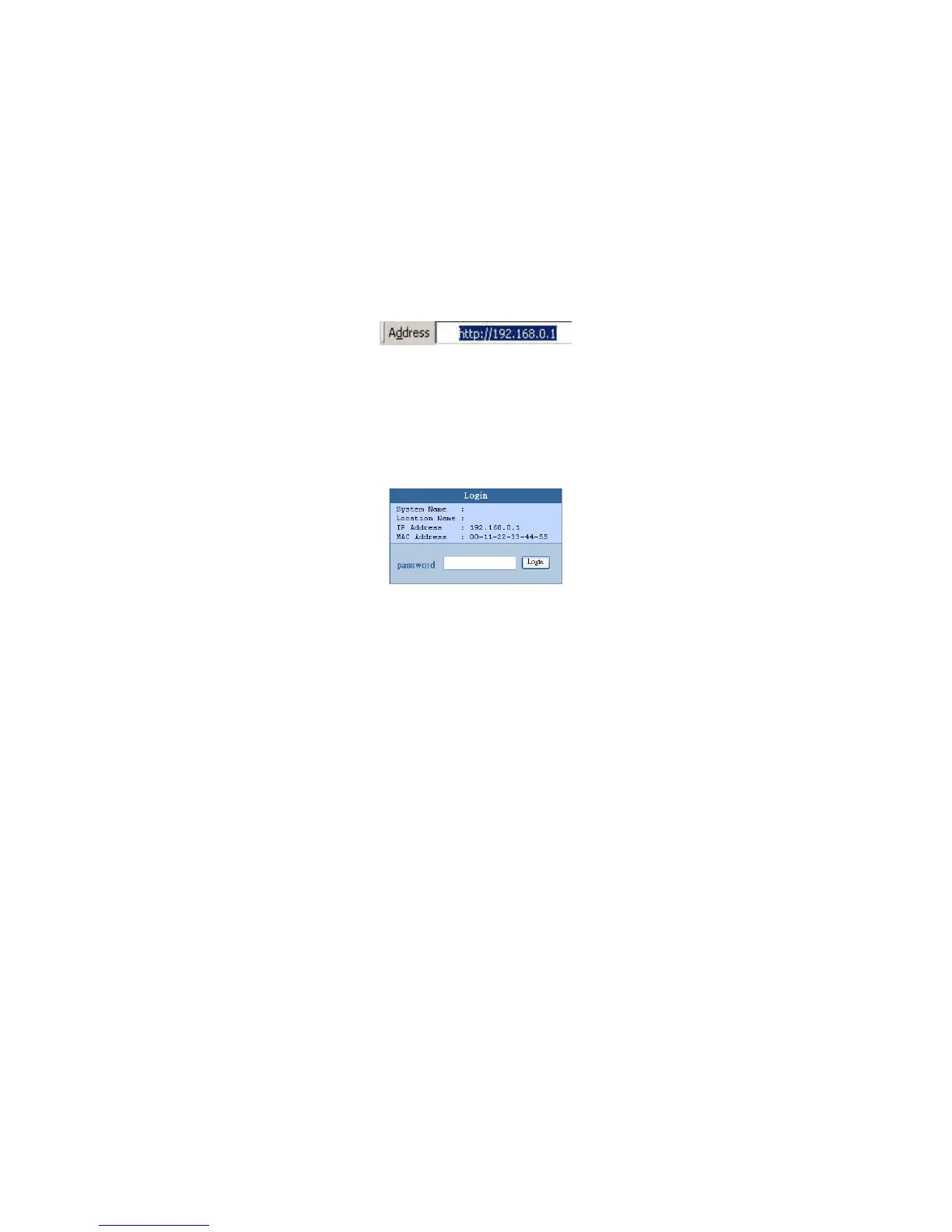

Figure 13.
Or through the Web Management Utility, you do not need to remember the IP
Address. Select the device shown in the Monitor List of the Web
Management Utility to settle the device on the Web Browser.
When the following dialog page appears, enter the default password "admin"
and press Login to enter the main configuration window.
Figure 14.
19
