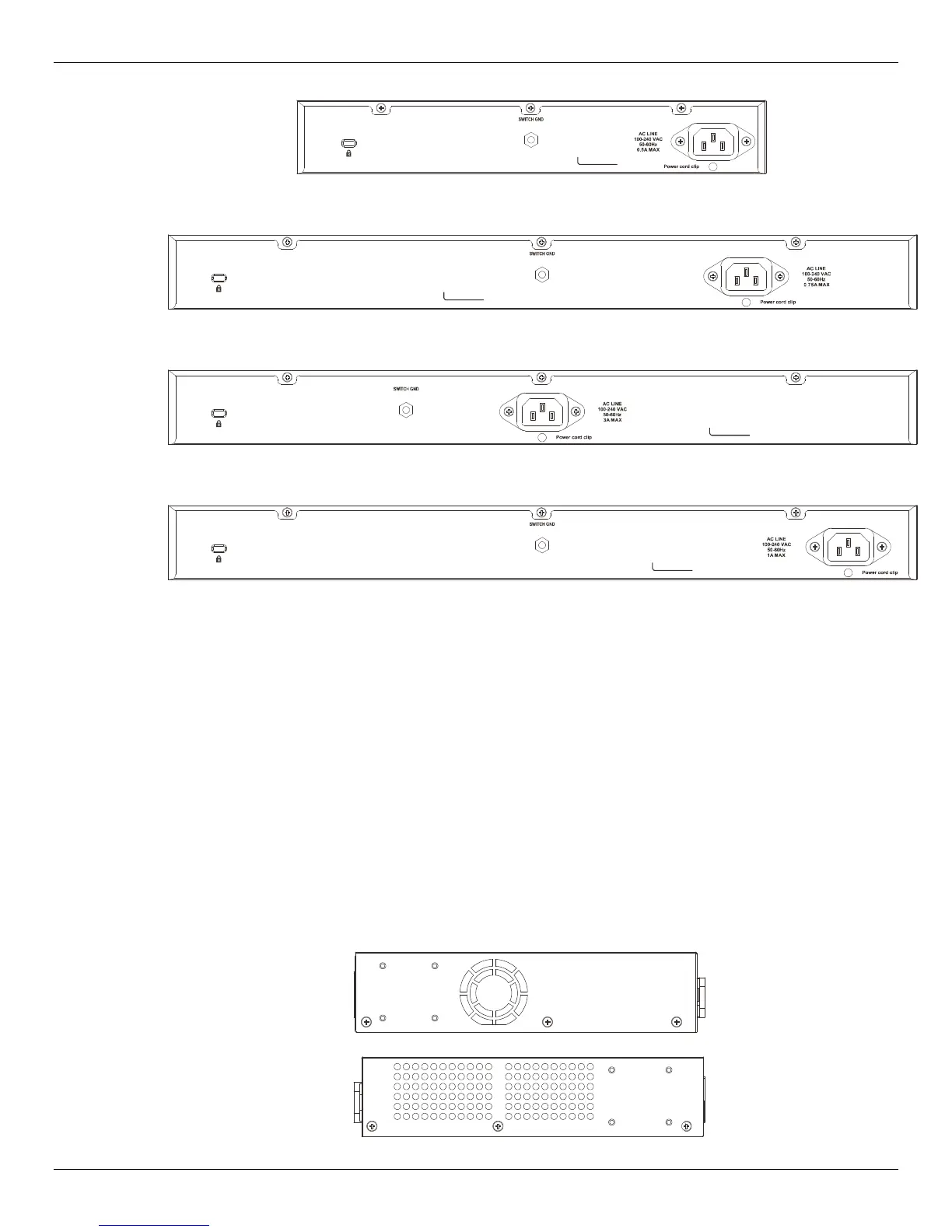

Figure 1–9 Rear panel view of a DGS-1510-20 Switch
Figure 1–10 Rear panel view of a DGS-1510-28 Switch
Figure 1–11 Rear panel view of a DGS-1510-28P Switch
Figure 1–12 Rear panel view of a DGS-1510-52 Switch
The AC power connector is a standard three-pronged connector that supports the power cord. Plug-in the
female connector of the provided power cord into this socket, and the male side of the cord into a power
outlet. The Switch automatically adjusts the power setting to any supply voltage in the range from
100~240 VAC at 50~60 Hz.
Side Panel Components
The system heat vents located on the sides of the Switch dissipate heat. Do not block these openings.
Leave at least 6 inches of space at the rear and sides of the Switch for proper ventilation. Without proper
heat dissipation and air circulation, system components might overheat which could lead to system failure
or even severely damaged components.

D-Link DGS-1510 Series Specifications

General

Layer	Layer 2+
IGMP Snooping	Yes
Static Routing	Yes
Humidity	10% to 90% non-condensing
Series	DGS-1510
Type	Smart Managed Switch
VLAN Support	Yes
QoS	Yes
Management	Web-based, CLI, SNMP
Power Supply	Internal
MAC Address Table	16K entries
802.3ad Link Aggregation	Yes
Spanning Tree Protocol (STP)	Yes, STP/RSTP/MSTP
Jumbo Frame Support	Yes, up to 9KB
Power Consumption	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
