CAUTION: Installing systems in a rack without the front and side stabilizers installed could
cause the rack to tip over, potentially resulting in bodily injury under certain circumstances.
Therefore, always install the stabilizers before installing components in the rack. After
installing components in a rack, do not pull more than one component out of the rack on
its slide assemblies at one time. The weight of more than one extended component could
cause the rack to tip over and may result in injury.
Installing Tranceivers into the Transceiver Ports
The Switch is equipped with SFP (Small Form Factor Portable) and SFP+ ports, which are used with
fiber-optical transceiver cabling.SFP ports support full-duplex transmissions, auto-negotiation, and can be
uplinked with various other switches across a gigabit network. The SFP ports support data rates of up to
1Gbit/s and the SFP+ ports support data rates of up to 10Gbit/s.
See the figure below for installing the transceiver in the transceiver port on the Switch.

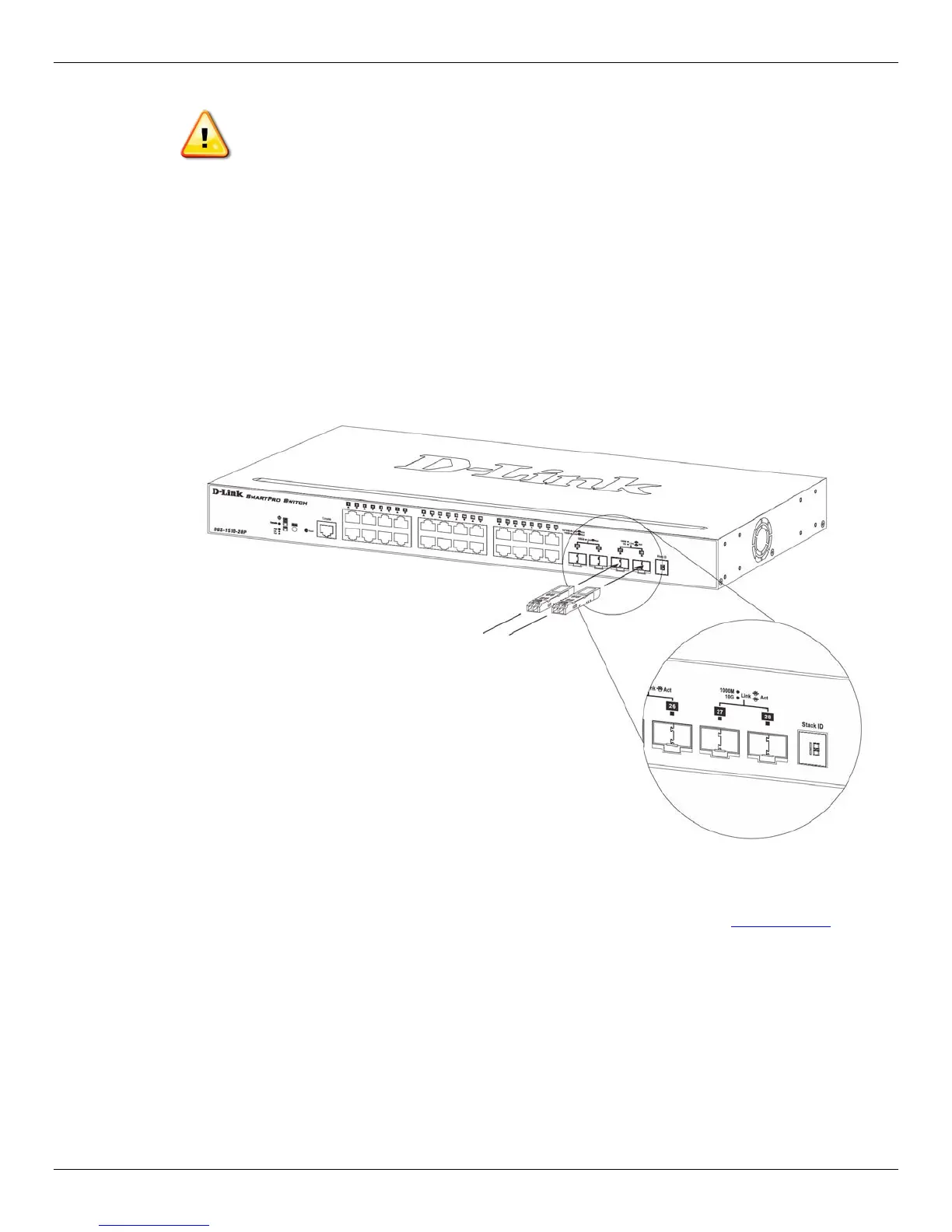

Figure 2–4 Inserting fiber-optic transceivers into a Switch
For a full list of supported transceivers, compatible with this switch series, refer to Port Functions
.
Power On (AC Power)
Plug one end of the AC power cord into the power socket of the Switch and the other end into the local
power source outlet. After the system powered on, the LED’s blink green to indicate that the system is
booting up.

D-Link DGS-1510 Series Specifications

General

Layer	Layer 2+
IGMP Snooping	Yes
Static Routing	Yes
Humidity	10% to 90% non-condensing
Series	DGS-1510
Type	Smart Managed Switch
VLAN Support	Yes
QoS	Yes
Management	Web-based, CLI, SNMP
Power Supply	Internal
MAC Address Table	16K entries
802.3ad Link Aggregation	Yes
Spanning Tree Protocol (STP)	Yes, STP/RSTP/MSTP
Jumbo Frame Support	Yes, up to 9KB
Power Consumption	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
