2. Installation
Installation Guidelines
Power On (AC Power)
Installation Guidelines
Please follow these guidelines for setting up the Switch:
• Install the Switch on a sturdy, level surface that can support at least 3kg (6.6lb). Do not place
heavy objects on the Switch.
• The power outlet should be within 1.82 meters (6 feet) of the Switch.
• Visually inspect the power cord and see that it is fully secured to the AC power port.
• Make sure that there is proper heat dissipation from and adequate ventilation around the Switch.
Leave at least 10 cm (4 inches) of space at the front and rear of the Switch for ventilation.
• Install the Switch in a fairly cool and dry place for the acceptable temperature and humidity oper-
ating ranges.
• Install the Switch in a site free from strong electromagnetic field generators (such as motors),
vibration, dust, and direct exposure to sunlight.
• When installing the Switch on a level surface, attach the rubber feet to the bottom of the device.
The rubber feet cushion the Switch, protect the casing from scratches and prevent it from scratch-
ing other surfaces.
Installing the Switch without a Rack
First, attach the rubber feet included with the Switch if installing on a desktop or shelf. Attach these
cushioning feet on the bottom at each corner of the device. Allow enough ventilation space between the
Switch and any other objects in the vicinity.

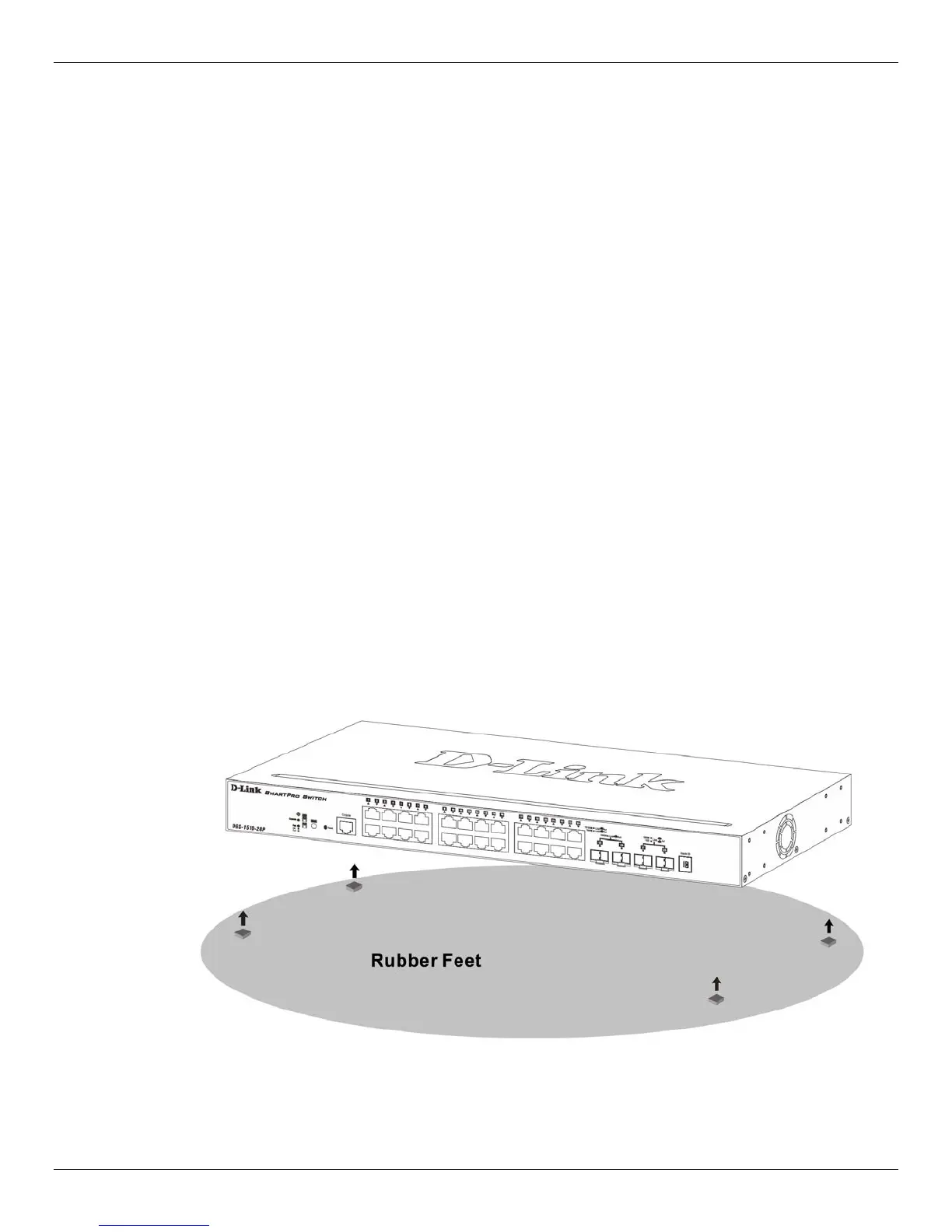

Figure 2–1 Attach rubber feet to the Switch.

D-Link DGS-1510 Series Specifications

General

Layer	Layer 2+
IGMP Snooping	Yes
Static Routing	Yes
Humidity	10% to 90% non-condensing
Series	DGS-1510
Type	Smart Managed Switch
VLAN Support	Yes
QoS	Yes
Management	Web-based, CLI, SNMP
Power Supply	Internal
MAC Address Table	16K entries
802.3ad Link Aggregation	Yes
Spanning Tree Protocol (STP)	Yes, STP/RSTP/MSTP
Jumbo Frame Support	Yes, up to 9KB
Power Consumption	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
