Appendix B – Cables and Connectors
Ethernet Cable
When connecting the Switch to another switch, a bridge or hub, a normal cable is necessary. Please
review these products for matching cable pin assignment. The following diagrams and tables show the
standard RJ-45 connector and their pin assignments.

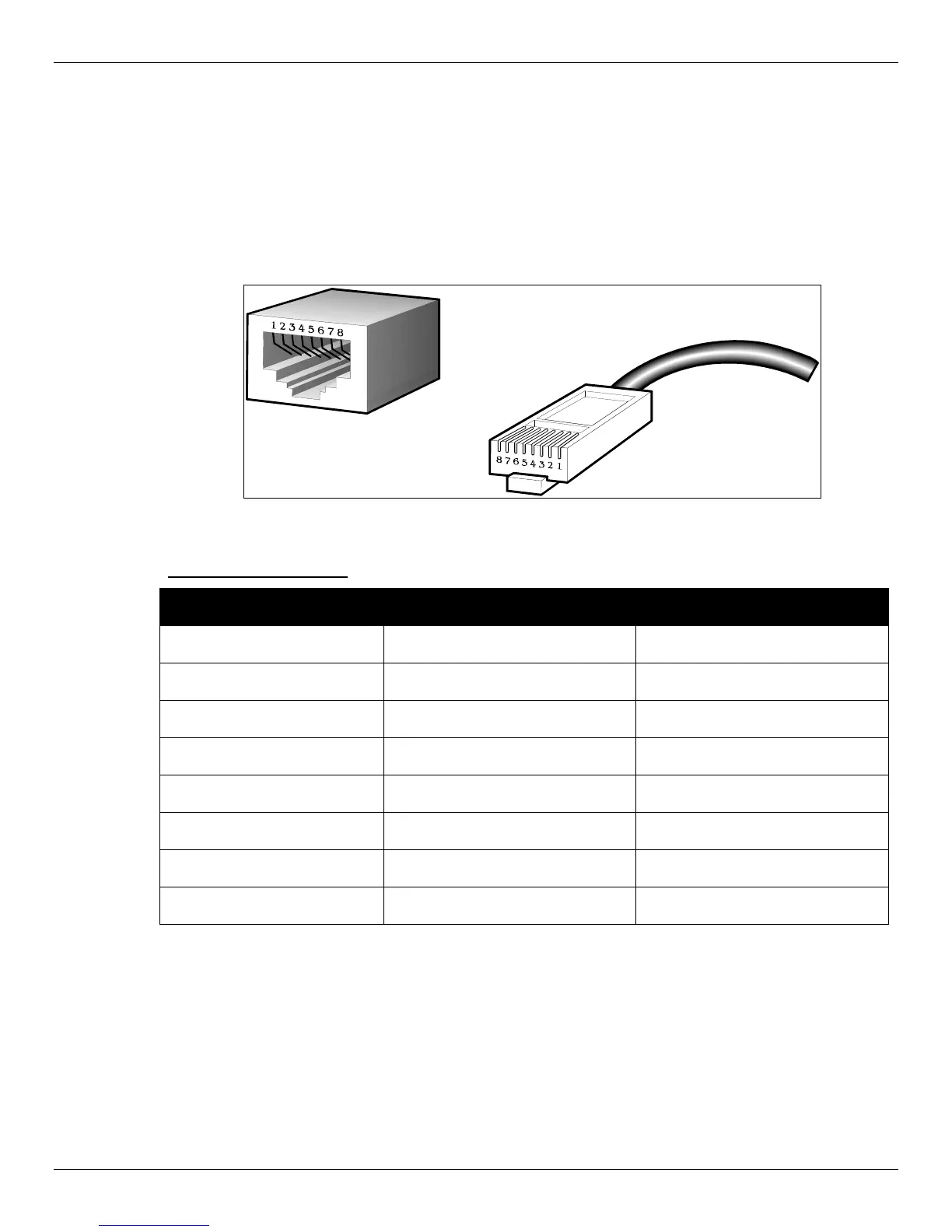

Figure B–1 Standard RJ-45 port and connector
RJ-45 PIN Assignments:
Pin MDI-X Port MDI-II Port
1 RD+ (receive) TD+ (transmit)
2 RD- (receive) TD- (transmit)
3 TD+ (transmit) RD+ (receive)
4 1000BASE-T 1000BASE-T
5 1000BASE-T 1000BASE-T
6 TD- (transmit) RD- (receive)
7 1000BASE-T 1000BASE-T
8 1000BASE-T 1000BASE-T

D-Link DGS-1510 Series Specifications

General

Layer	Layer 2+
IGMP Snooping	Yes
Static Routing	Yes
Humidity	10% to 90% non-condensing
Series	DGS-1510
Type	Smart Managed Switch
VLAN Support	Yes
QoS	Yes
Management	Web-based, CLI, SNMP
Power Supply	Internal
MAC Address Table	16K entries
802.3ad Link Aggregation	Yes
Spanning Tree Protocol (STP)	Yes, STP/RSTP/MSTP
Jumbo Frame Support	Yes, up to 9KB
Power Consumption	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
