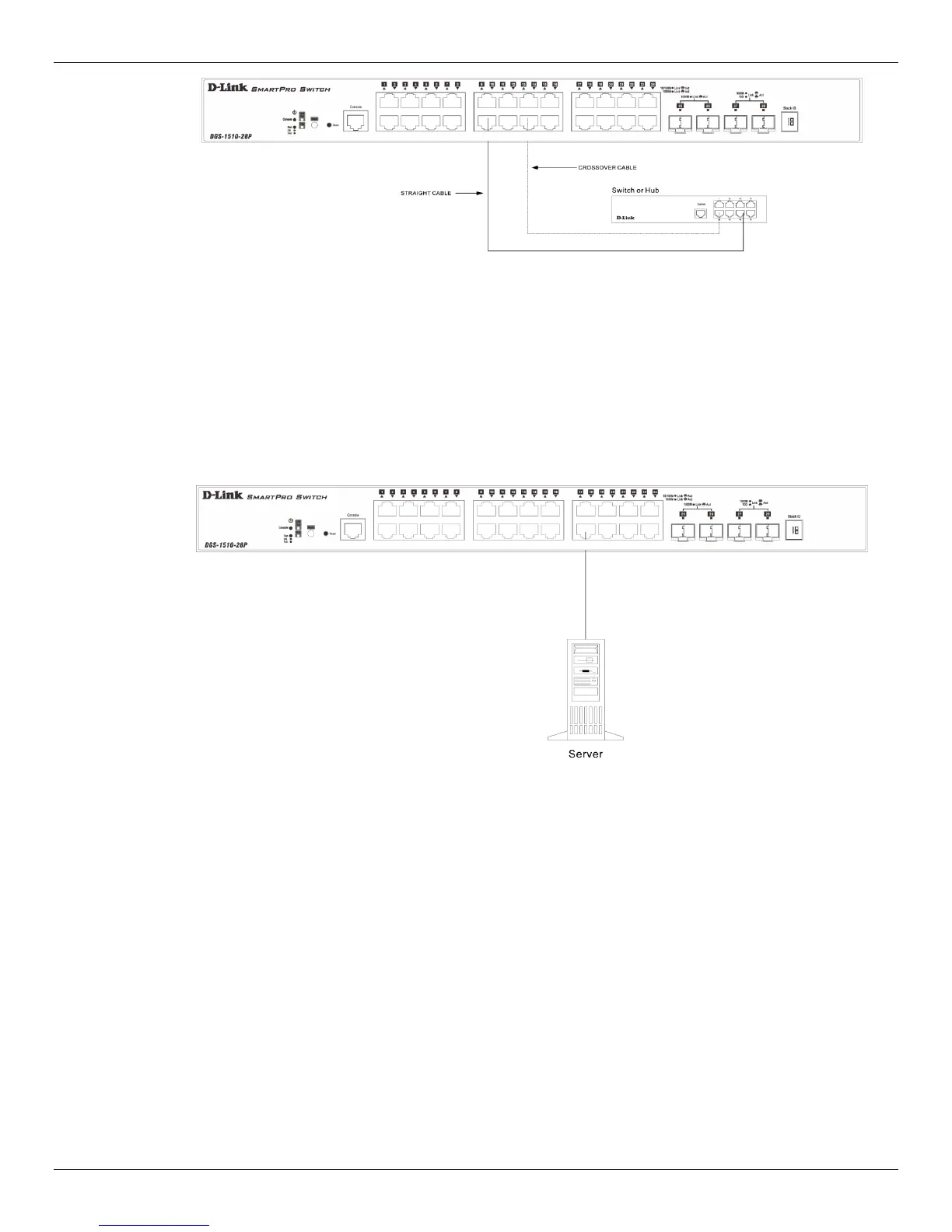

Figure 3–2 Switch to Switch Connection
Connect to a Network Backbone or Server
The Combo Copper/SFP ports are ideal for connecting a network backbone, server or server farm to the
Switch. The copper ports operate at a speed of 10/100/1000Mbps in half-duplex or full-duplex mode. The
fiber-optic ports can operate at both 100/1000Mbps in full-duplex mode. The Link LED turns green when
a connection is made.
Figure 3–3 Server to Switch Connection
