DIR-882 AC2600 Wave 2 MU-MIMO Wi-Fi Gigabit Router with
3G/LTE Support and 2 USB Ports
User Manual
Configuring via Web-based Interface
Connection of Multimedia Devices
The Multimedia Devices Connection Wizard helps to configure LAN ports of the router for
connecting additional devices, for example, an IPTV set-top box or IP phone. Contact your ISP to
clarify if you need to configure DIR-882 in order to use these devices.
To start the Wizard, on the Home page, select the Connection of Multimedia Devices section.
If you need to select a port in order to use an additional device, left-click the relevant element in the
LAN section (the selected element will be marked with a frame). Then click the APPLY button.

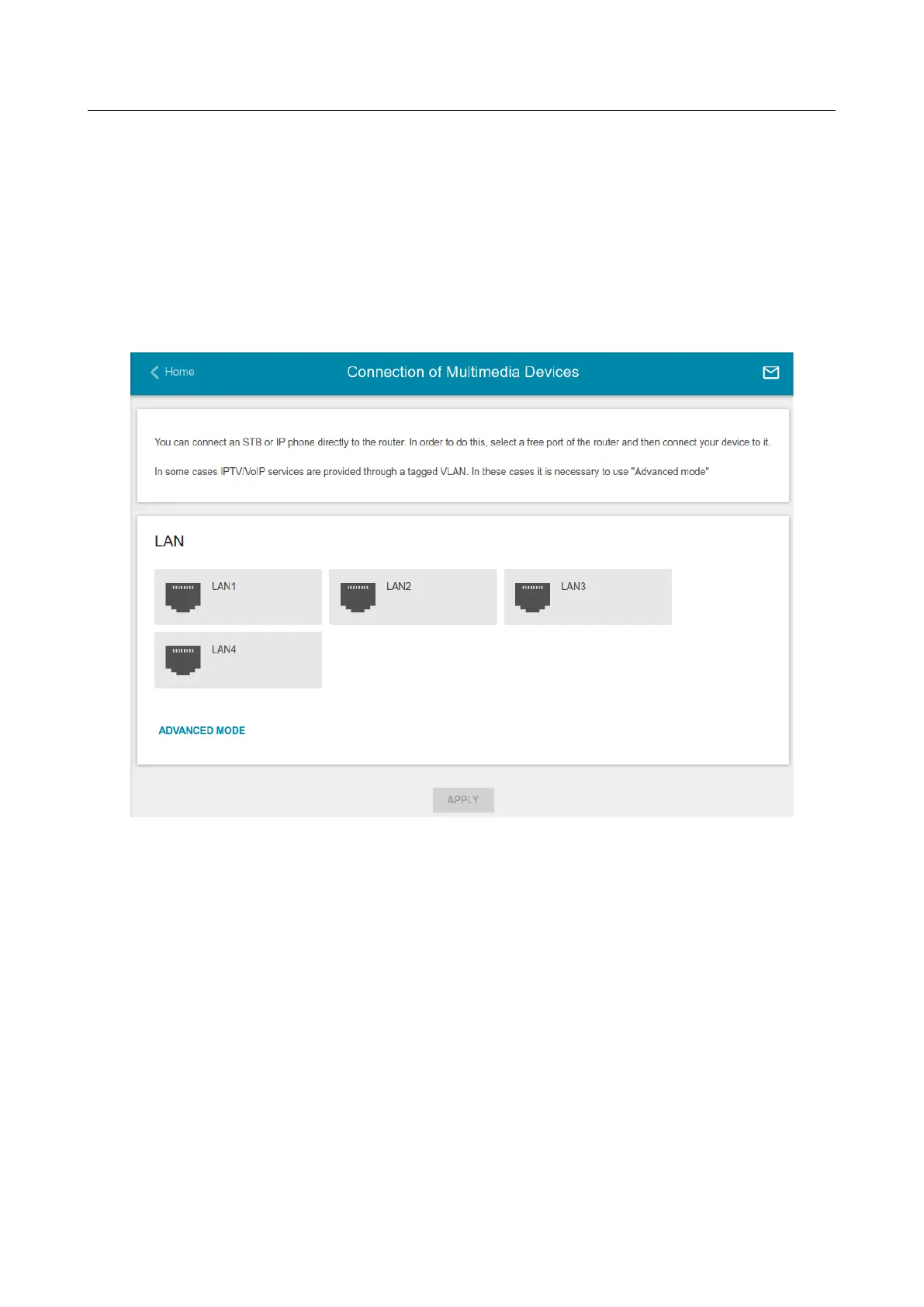

Figure 58. The Multimedia Devices Connection Wizard. The simplified mode.
Page 74 of 303
