D-Link DSL-2740E User Manual

DSL-2740E User Manual
74

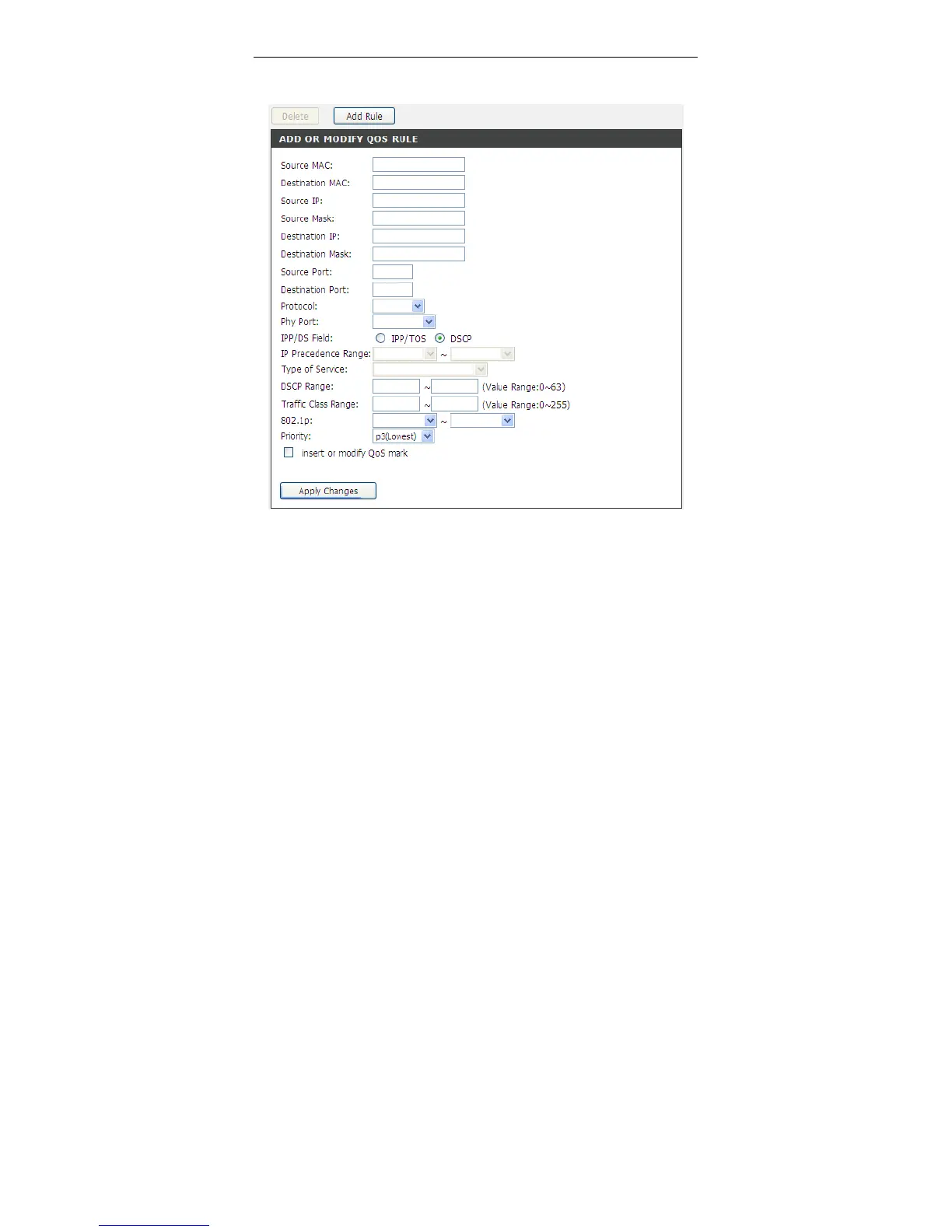

Step 2 Click Add Rule to add a new IP QoS rule. The page shown in the
following figure appears.
3.3.11.4 UPnP
UPnP (Universal Plug and Play) is a networking architecture that provides
compatibility among networking equipment, software, and peripherals. This router
has optional UPnP capability, and can work with other UPnP devices and software.
The system acts as a daemon when you enable UPnP. Leave the UPnP option
enabled as long as the LAN has other UPnP applications.
Choose Advanced > Network Tools > UPnP. The UPnP Configuration page
shown in the following figure appears.

D-Link DSL-2740E Specifications

Data Transfer Rates

G.dmt full rate downstream	8 Mbps
G.dmt full rate upstream	1 Mbps
G.lite downstream	1.5 Mbps
G.lite upstream	512 Kbps
G.dmt.bis full rate downstream	12 Mbps
G.dmt.bis full rate upstream	12 Mbps
ADSL full rate downstream	24 Mbps
ADSL full rate upstream	1 Mbps

Media Interface

ADSL interface connector type	RJ-11
LAN interface port type	RJ-45
Ethernet connection type	10/100BASE-T
