D-Link DWL-G700AP User Manual

12
UsingtheCongurationUtility(continued)

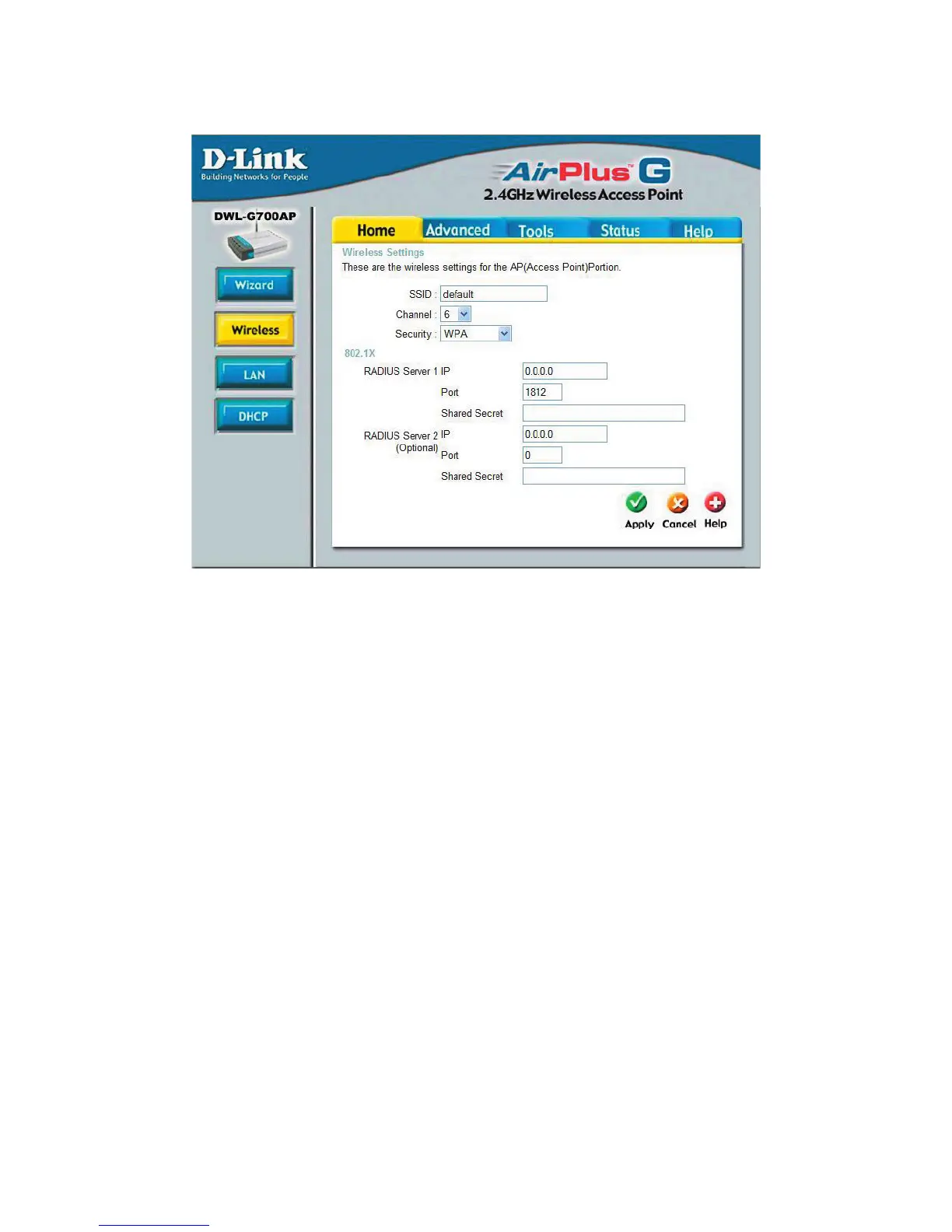

Home>Wireless>WPA
Security:SelectWPA.
RADIUSServer1IP:EntertheIPaddressoftheRADIUSserver.
Port:EntertheRADIUSport(1812isdefault).
SharedSecret:EntertheRADIUSpassphraseorkey.
RADIUS Server 2 IP: (Optional) Enter the IP address of a 2
nd
 RADIUS
server.
Port:Enterthe2
nd
RADIUSport(1812isdefault).
SharedSecret:Enterthe2
nd
RADIUSpassphraseorkey.
Apply:ClickApplytoapplythechanges.

D-Link DWL-G700AP Specifications

General

2.4 GHz	Yes
Modulation	BPSK, CCK, OFDM, QPSK
Frequency band	2.412 - 2.462 GHz
Maximum data transfer rate	54 Mbit/s
Safety	FCC 15 class B & C
I/O ports	1x 10/100 Ethernet
Indoor range	100m
Outdoor range	400m
Compliance industry standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11g, IEEE 802.3u
Supported data transfer rates	802.11g: 54, 48, 36, 24, 18, 12, 9, 6Mbps; 802.11b: 11, 5.5, 2, 1Mbps
Security algorithms	128-bit WEP, 64-bit WEP, WPA
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
LED indicators	LAN, WLAN

Weight and Dimensions

Weight	200 g
Dimensions (WxDxH)	109 x 142 x 31 mm
