14D-Link DWR-730 User Manual
Section 3 - Conguration

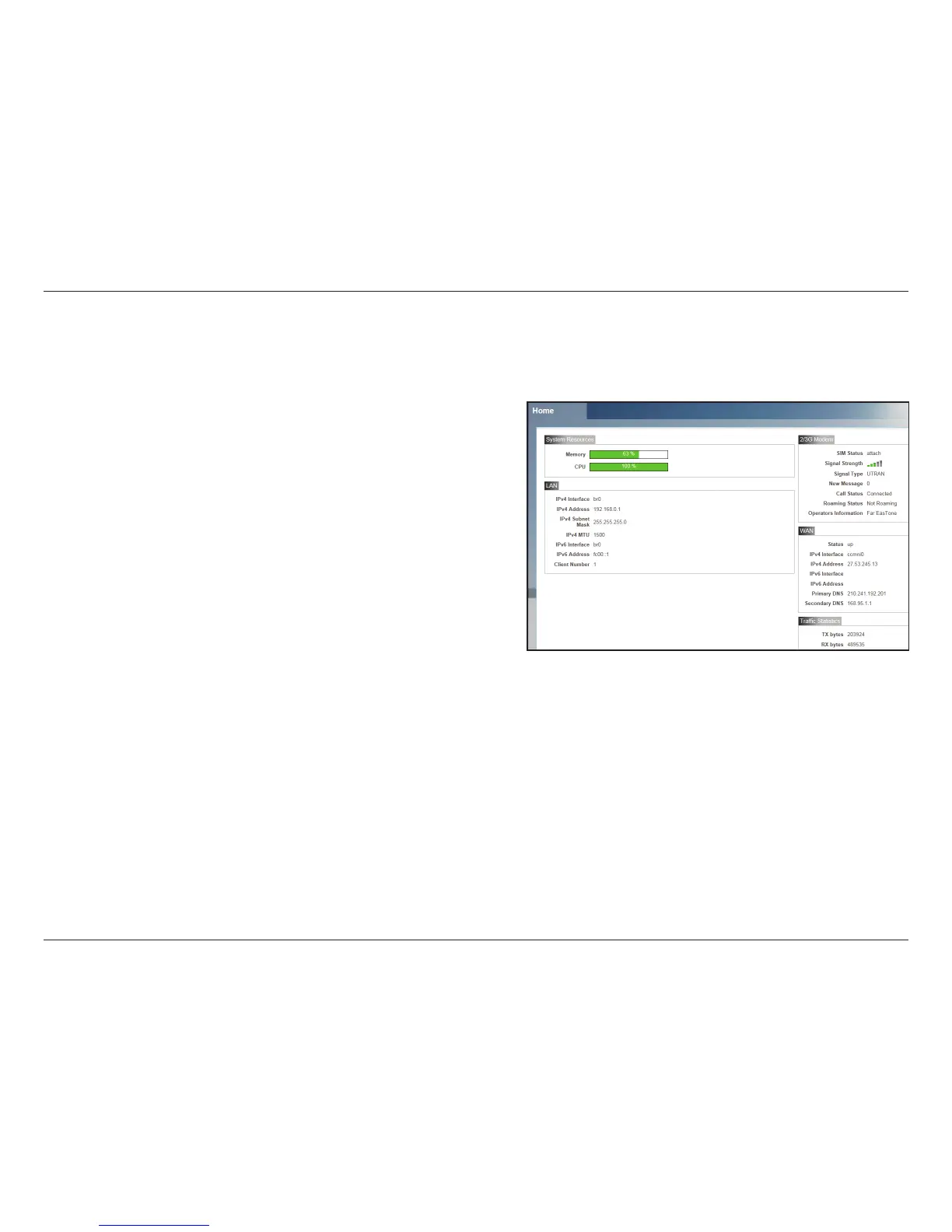

The Home page acts as a dashboard to quickly display your conguration settings and provide a summary of the current status of your network.
This area displays the percentage of the router’s memory and
CPU currently being used by the system.
This area displays a summary of the current settings for the
router’s LAN.
This area shows the current status of your 2G or 3G mobile
network connection.
This area displays a summary of the router’s current WAN
settings. These details will reect the mobile network
connection which is being received from the service provider.
This area shows the amount of data which has been sent (TX)
and received (RX) over the mobile network. This information
may not reect the amount recorded by your mobile service
provider.
System Resources:
LAN:
2G/3G Modem:
WAN:
Trac Statistics:
