D-Link DXS-3400 SERIES Hardware Installation Guide

DXS-3400 Series Lite Layer 3 Stackable 10GbE Managed Switch Hardware Installation Guide
12
Front Panel Components
The front panel of the Switches in this series features a variety of LED indicators and ports.

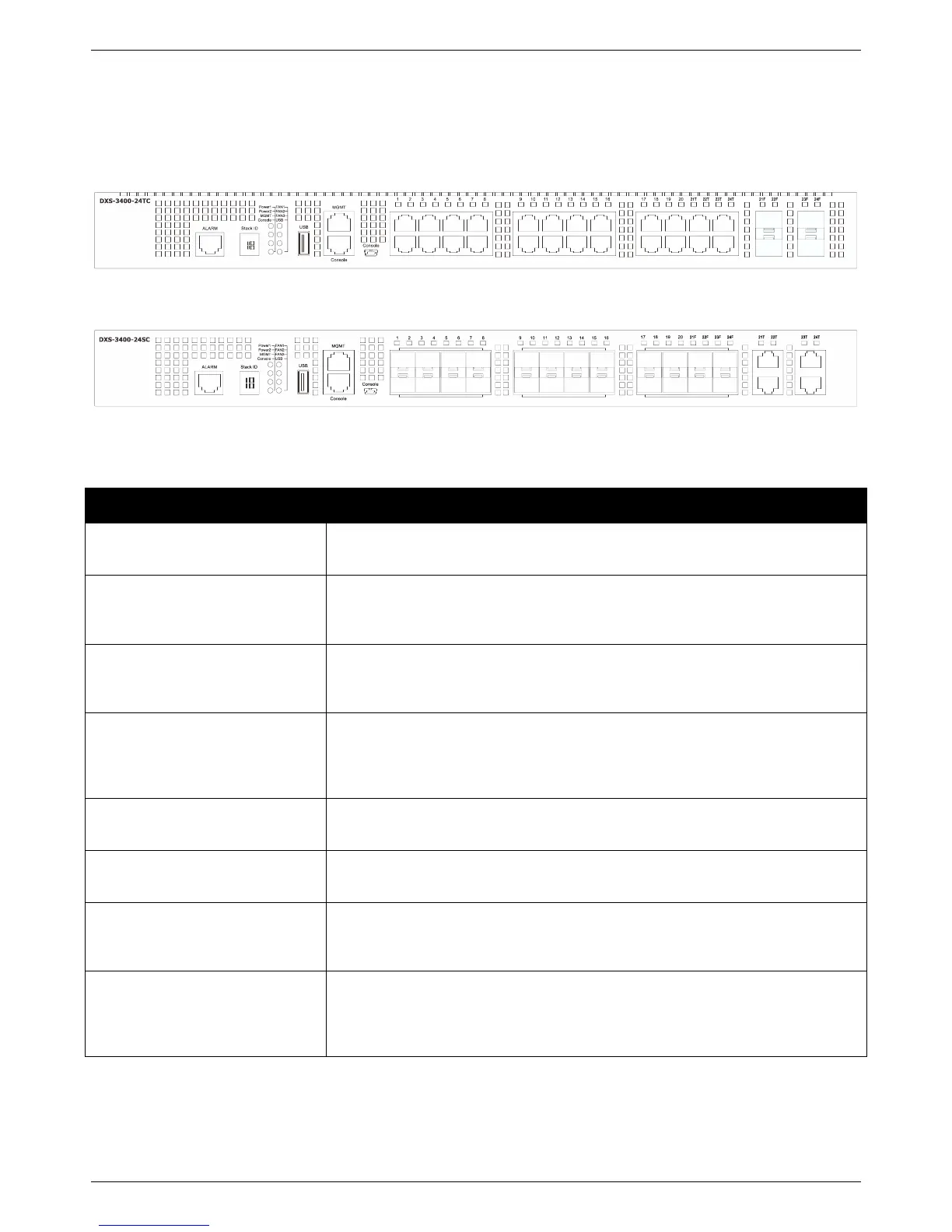

Figure 1-1 Front panel view of the DXS-3400-24TC
Figure 1-2 Front panel view of the DXS-3400-24SC
Ports that can be found on the front panel of this switch are listed in the table below.
Port
Description
Alarm
The RJ45 (8 pins) Alarm port provides an external alarm detection. The Switch
will send out the traps and logs when two of the pins are shorted among the pair.
USB
Inserting a flash drive into the USB 2.0 Type-A port provides an additional
storage space for portable firmware images and configuration files that can be
copied to and from the NVRAM of the Switch.
MGMT
The RJ45 MGMT port is an out-of-band management port that operates at
10/100/1000 Mbps wire-speed. This port can be used to configure the Switch
without being connected to the network.
Console (RJ45)
The RJ45 console port can be used to connect to the Command Line Interface
(CLI) of the Switch for configuration, management, and monitoring. This port
uses a special console cable (included in this package) with a DB9 interface to
connect the Switch to the serial port (COM) of the PC.
Console (Mini-USB)
The Mini-USB console port can be used to connect to the Command Line
Interface (CLI) of the Switch for configuration, management, and monitoring.
10 Gigabit RJ45 Ports
The DXS-3400-24TC is equipped with 20 RJ45 Ethernet ports. These ports can
operate at 100/1000/10000 Mbps wire-speeds.
10 Gigabit SFP+ Ports
The DXS-34000-24SC is equipped with 20 SFP/SFP+ ports. These ports can
operate at 1/10 Gbps wire-speeds and support a wide collection of SFP/SFP+
transceivers.
10 Gigabit Combo RJ45/SFP+
Ports
The Switch is equipped with 4 combo ports that can either operate as RJ45
Ethernet ports or SFP/SFP+ ports. The RJ45 ports can operate at
100/1000/10000 Mbps wire-speeds. The SFP/SFP+ ports can operate at 1/10
Gbps wire-speeds and support a wide collection of SFP/SFP+ transceivers.
For a complete list of SFP/SFP+ transceivers that are compatible with this switch, refer to the SFP+ Ports section in
Appendix A - Technical Specifications.
