DXS-3400 Series Lite Layer 3 Stackable 10GbE Managed Switch Hardware Installation Guide
35
NOTE: After a user account was created, login credentials will be required to access the Web UI.
During the sending and receiving of the login password to and from the Switch, this information will be
protected using a strong encryption algorithm to prevent attackers from snooping this information to
gain unauthorized access to the Switch.
Web User Interface (Web UI)
The Web UI provides access to various Switch configuration and management windows. It allows the user to view
performance statistics, and permits graphical monitoring of the system’s status.
Areas of the Web UI
After logging into the Switch’s Web UI, the following page will be displayed. The Web UI can be divided into four
distinct areas that are described in more detail in the table below.

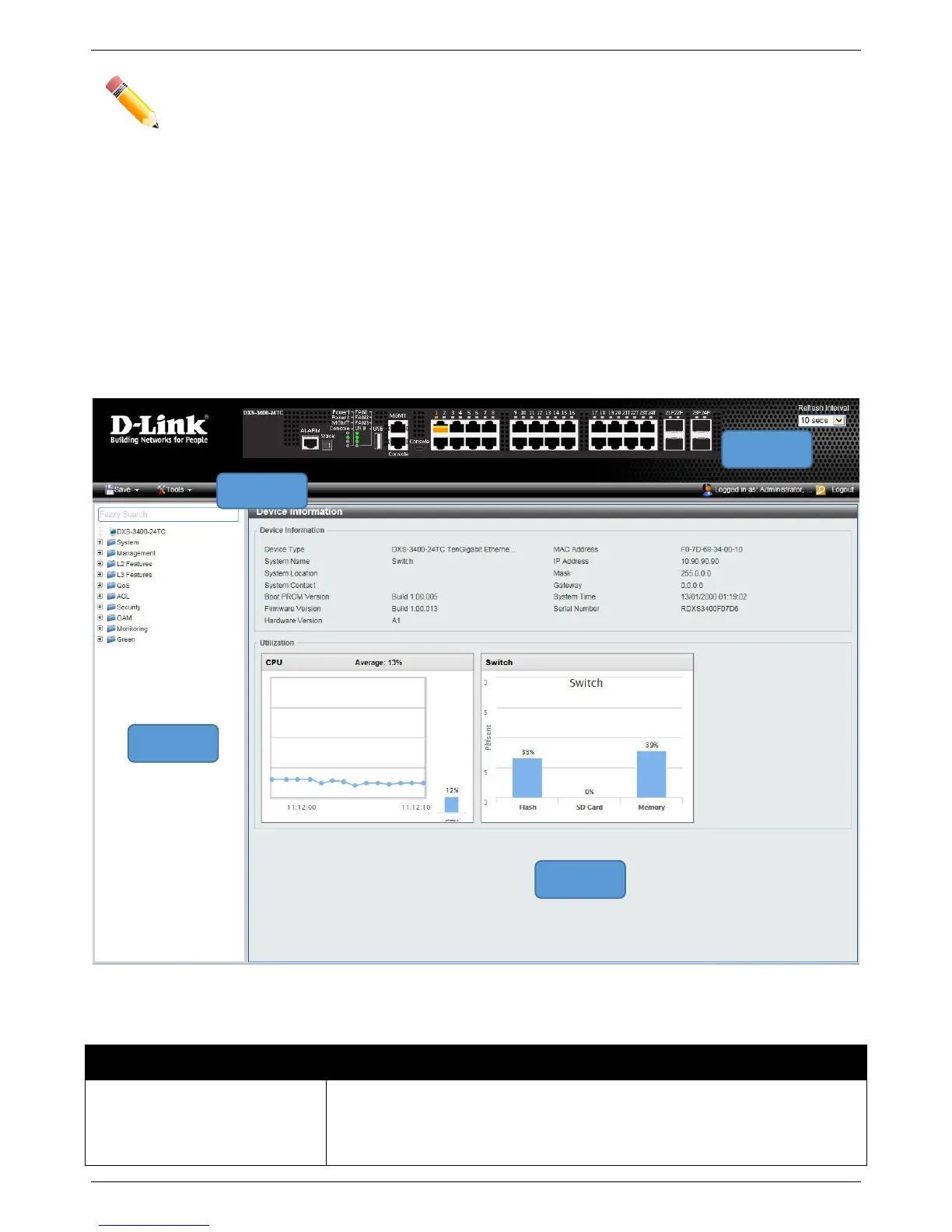

Figure 5-2 Main Web UI Window
Four main areas are displayed in the window.
Area Number
Function
AREA 1
This area displays a graphical, near real-time image of the front panel of the
Switch. This area displays the Switch’s ports. It also shows port activity based on
a specific mode. Some management functions, including port monitoring, are
accessible from here. Click the D-Link logo to go to the D-Link website.
Area 1
Area 2
Area 3
Area 4
