D-Link DXS-3400 SERIES Hardware Installation Guide

DXS-3400 Series Lite Layer 3 Stackable 10GbE Managed Switch Hardware Installation Guide
43
Console Cable (RJ45 to RS-232)
A console cable is used to connect to the console port of the Switch to access the command line interface. The
following diagram and table show the standard RJ45 to RS-232 cable and pin assignments.

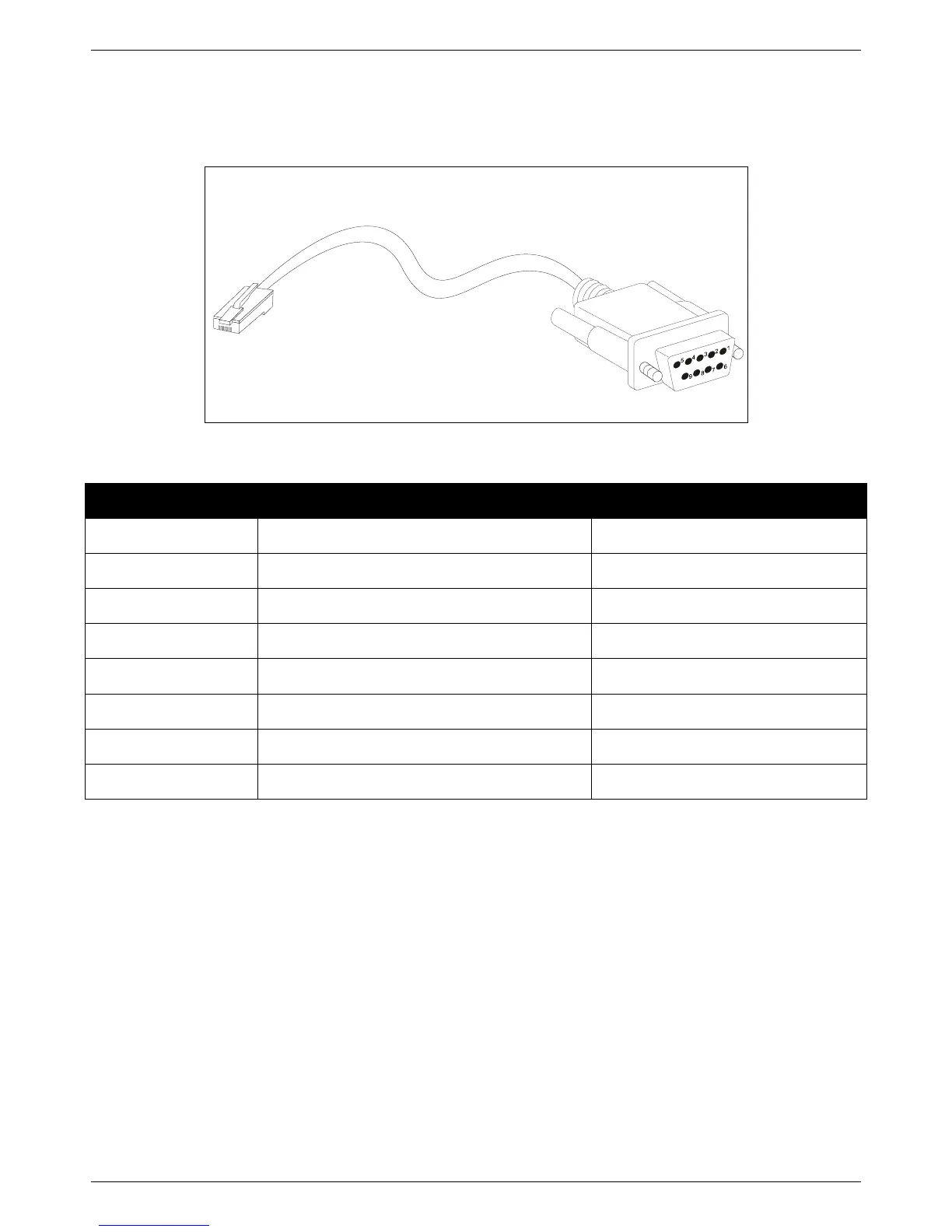

Figure B-2 Console to RJ45 Cable
Contact
Console (DB9/RS232)
RJ-45
1
Not Used
Not Used
2
RXD
Not Used
3
TXD
TXD
4
Not Used
GND
5
GND (shared)
GND
6
Not Used
RXD
7
Not Used
Not Used
8
Not Used
Not Used
