DXS-3400 Series Lite Layer 3 Stackable 10GbE Managed Switch Hardware Installation Guide
20

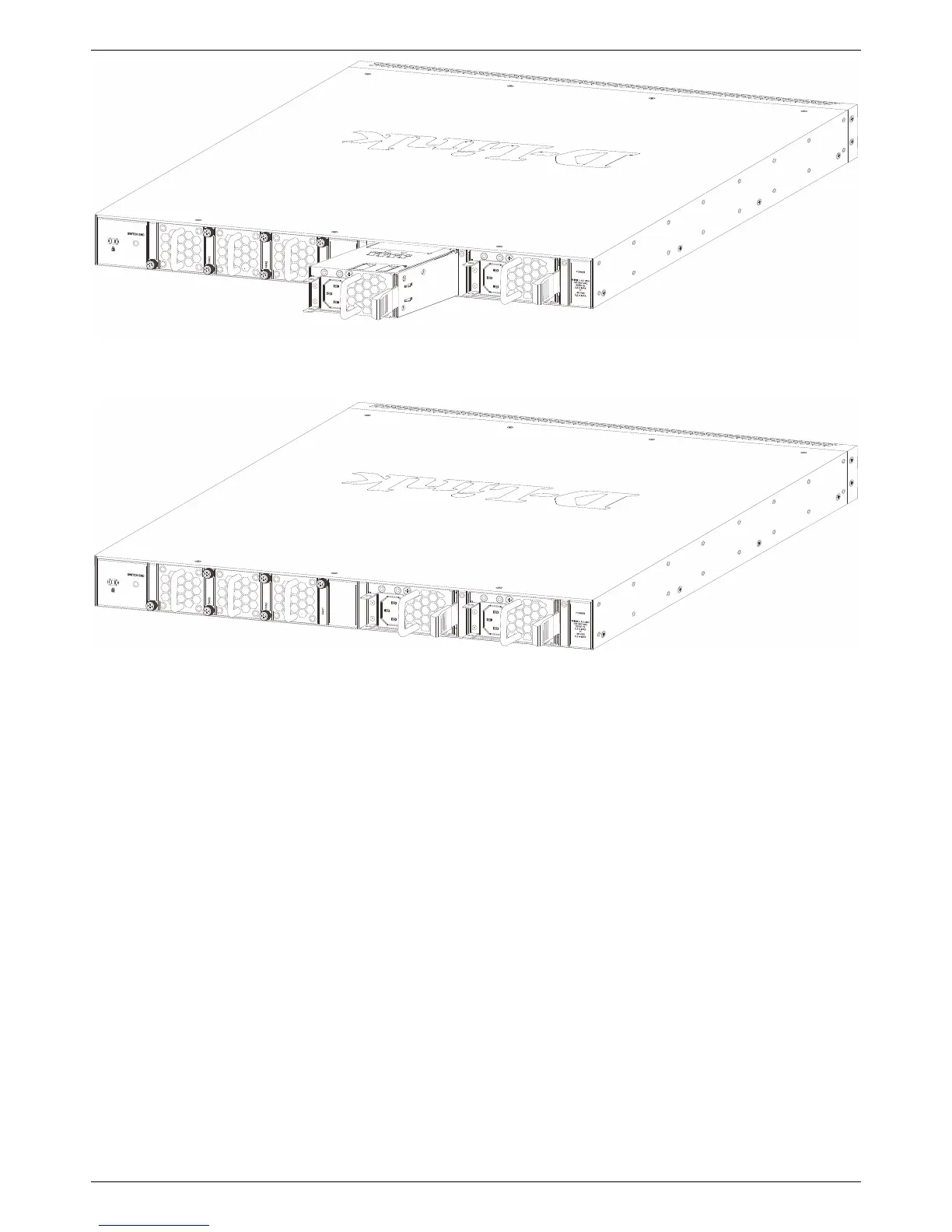

Figure 2-5 Installing an AC Power Supply Module
Figure 2-6 Installed AC Power Supply Module
In addition, an optional second AC power supply module can be plugged into the second power supply module slot, as
displayed above. When two AC Power supply modules are inserted, and both are supplying power to the Switch, the
AC power load will be shared between them. When one of the AC power supply modules fails, the other AC power
supply module will continue to supply power to the Switch automatically.
The AC power supply modules are hot-swappable, meaning, that they can be inserted and removed while the Switch
is powered on. This feature enhances the reliability of this switch.
Installing a DC Power Module
This switch supports a unique dual power input feature. Insert the DC power supply module into the power module slot
until the clip clicks in place. Connect the one end of the DC power cord supplied to a DC power source (-48 VDC, 5.2
A). Make sure that connection polarity (positive and negative) is correct before supplying DC power to the Switch to
avoid any damage to the Switch. Connect the power source to the DC plug before plugging it into the Switch. This will
protect the Switch from a possible shortage on the DC cable.
